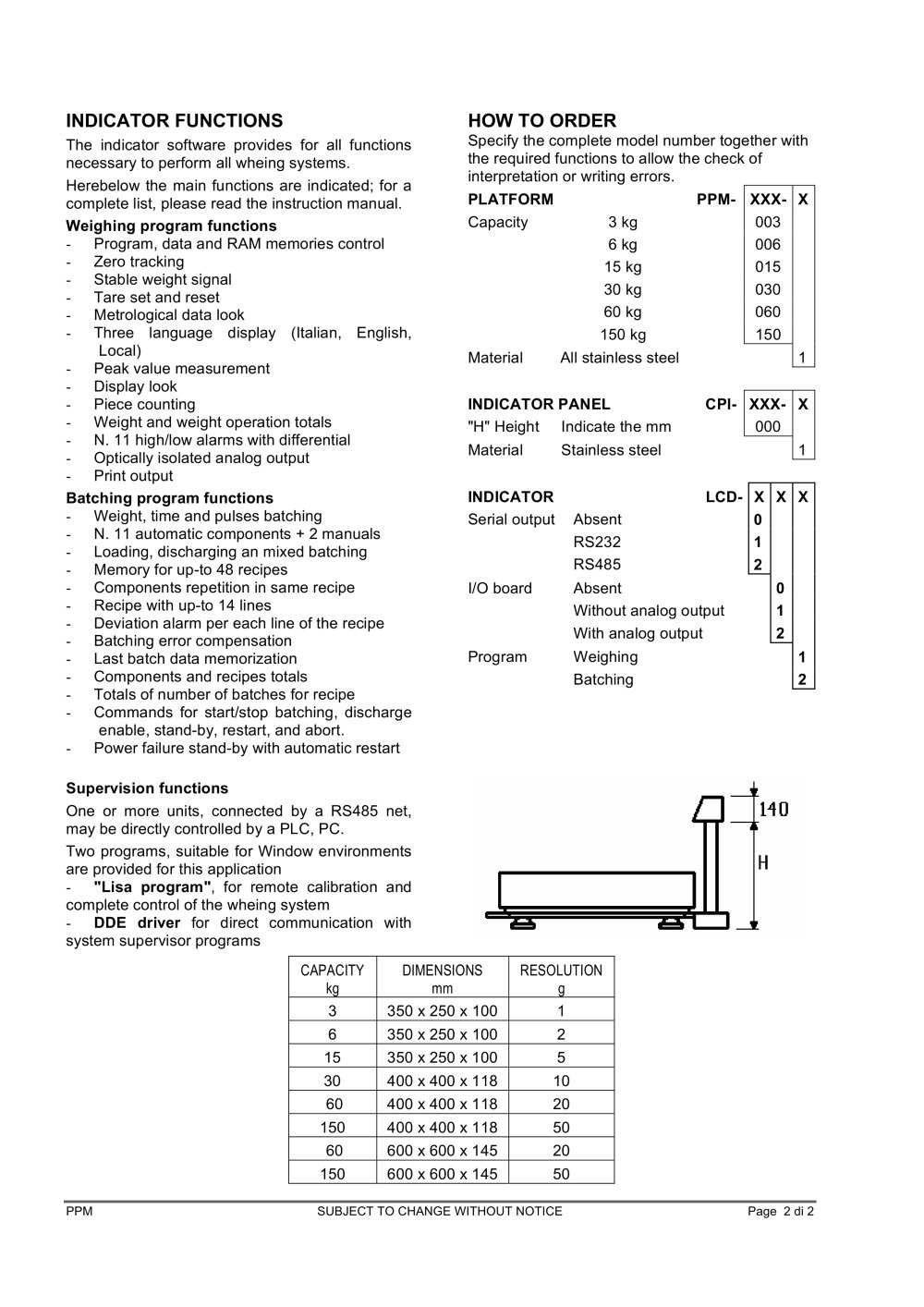

INDICATOR FUNCTIONS HOW TO ORDER

The indicator software provides for all functions necessary to perform all wheing systems. Herebelow the main functions are indicated; for a complete list, please read the instruction manual. Specify the complete model number together with the required functions to allow the check of interpretation or writing errors. PLATFORM PPM- XXX-X Weighing program functions Capacity 3 kg 003 - Program, data and RAM memories control 6 kg 006 - Zero tracking 15 kg 015 - Stable weight signal - Tare set and reset 30 kg 030 - Metrological data look 60 kg 060 - Three language display (Italian, English, Local) 150 kg 150 - Peak value measurement Material All stainless steel 1 - Display look - Piece counting INDICATOR PANEL CPI- XXX-X - Weight and weight operation totals "H" Height Indicate the mm 000 - N. 11 high/low alarms with differential - Optically isolated analog output Material Stainless steel 1 - Print output Batching program functions INDICATOR LCD- XXX - Weight, time and pulses batching Serial output Absent - N. 11 automatic components + 2 manuals - Loading, discharging an mixed batching RS232 1 - Memory for up-to 48 recipes RS485 2 - Components repetition in same recipe I/O board Absent - Recipe with up-to 14 lines Without analog output 1 - Deviation alarm per each line of the recipe - Batching error compensation With analog output 2 - Last batch data memorization Program Weighing 1 - Components and recipes totals Batching 2 - Totals of number of batches for recipe - Commands for start/stop batching, discharge enable, stand-by, restart, and abort. - Power failure stand-by with automatic restart Supervision functions One or more units, connected by a RS485 net, may be directly controlled by a PLC, PC. Two programs, suitable for Window environments are provided for this application - "Lisa program" , for remote calibration and complete control of the wheing system - DDE driver for direct communication with system supervisor programs CAPACITY kg DIMENSIONS mm RESOLUTION g 3 350 x 250 x 100 1 6 350 x 250 x 100 2 15 350 x 250 x 100 5 30 400 x 400 x 118 10 60 400 x 400 x 118 20 150 400 x 400 x 118 50 60 600 x 600 x 145 20 150 600 x 600 x 145 50
PPM SUBJECT TO CHANGE WITHOUT NOTICE Page 2 di 2
