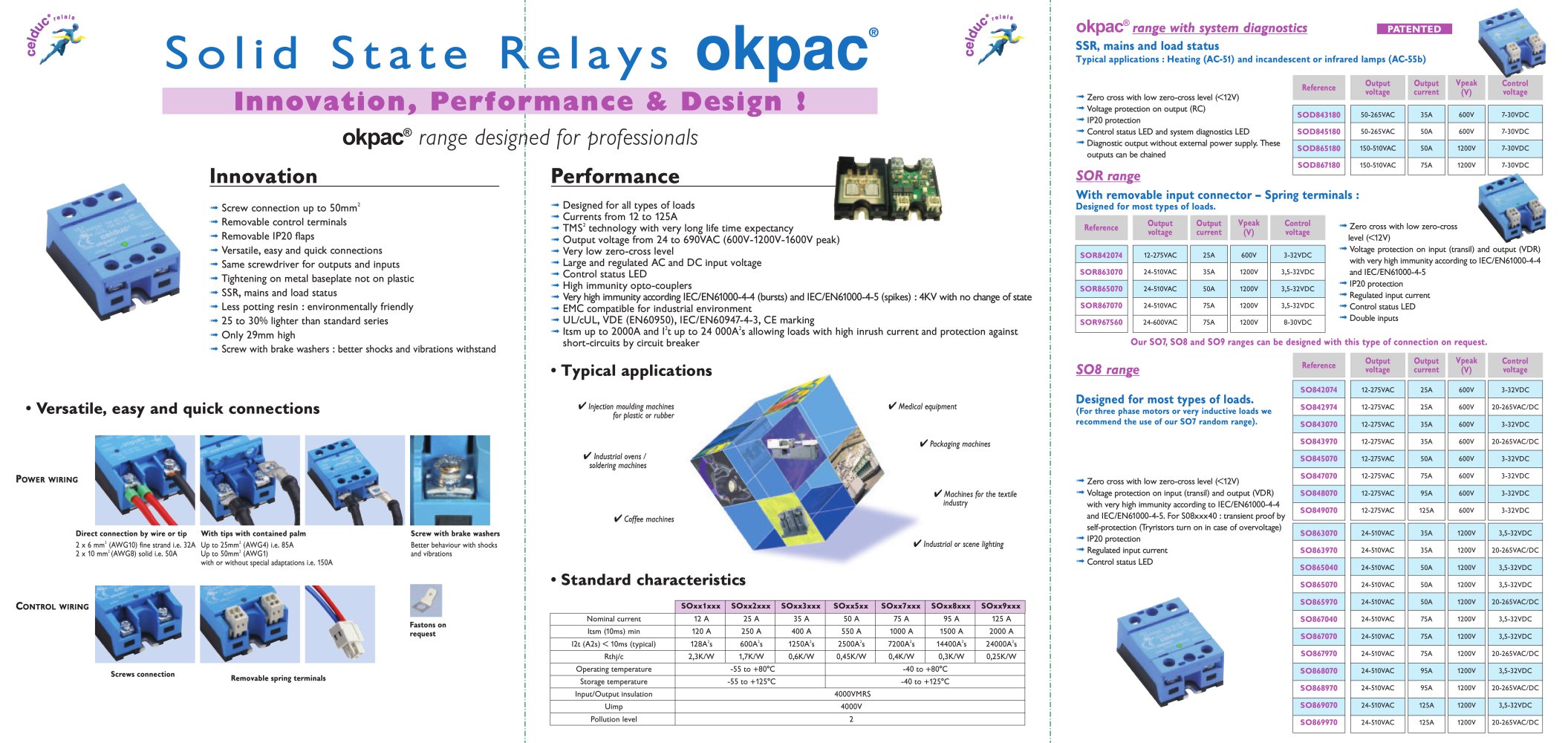

Solid State Relays OkpaC

Innovation, Performance & Design !

okpac® range designed for professionals

> -V

patented

okpac® range with system diagnostics SSR, mains and load status

Typical applications : Heating (AC-51) and incandescent or infrared lamps (AC-55b)


Output voltage	Output current	Vpeak (V)	Control voltage

50-265VAC	35A	600V	7-30VDC
50-265VAC	50A	600V	7-30VDC
150-510VAC	50A	1200V	7-30VDC
150-510VAC	75A	1200V	7-30VDC

Reference

Zero cross with low zero-cross level (<12V) Voltage protection on output (RC) IP20 protection

Control status LED and system diagnostics LED Diagnostic output without external power supply. These outputs can be chained

SOD843180

SOD845180

SOD865180

SOD867180

Innovation

Performance

SOR range

With removable input connector - Spring terminals :

Designed for most types of loads.

Designed for all types of loads Currents from 12 to 125A TMS² technology with very long life time expectancy Output voltage from 24 to 690VAC (600V-1200V-1600V peak) Very low zero-cross level Large and regulated AC and DC input voltage Control status LED High immunity opto-couplers

Very high immunity according IEC/EN61000-4-4 (bursts) and IEC/EN61000-4-5 (spikes) : 4KV with no change of state

EMC compatible for industrial environment

UL/cUL, VDE (EN60950), IEC/EN60947-4-3, CE marking

Itsm up to 2000A and I²t up to 24 000A²s allowing loads with high inrush current and protection against short-circuits by circuit breaker

Screw connection up to 50mm²Removable control terminals Removable IP20 flaps ■-► Versatile, easy and quick connections Same screwdriver for outputs and inputs Tightening on metal baseplate not on plastic ' SSR, mains and load status ■-► Less potting resin : environmentally friendly ■-► 25 to 30% lighter than standard series ■-► Only 29mm high

■-► Screw with brake washers : better shocks and vibrations withstand


Output voltage	output current	Vpeak (V)	Control voltage

12-275VAC	25A	600V	3-32VDC
24-510VAC	35A	1200V	3,5-32VDC
24-510VAC	50A	1200V	3,5-32VDC
24-510VAC	75A	1200V	3,5-32VDC
24-600VAC	75A	1200V	8-30VDC

_{" " " " " " " " " " "}

Zero cross with low zero-cross level (<12V)

Voltage protection on input (transil) and output (VDR)

with very high immunity according to IEC/EN61000-4-4

and IEC/EN61000-4-5

IP20 protection

Regulated input current

Control status LED

Double inputs

Reference

SOR842074

SOR863070

SOR865070

SOR867070

SOR967560

Our SO7, SO8 and SO9 ranges can be designed with this type of connection on request.


output voltage	output current	Vpeak (V)	Control voltage
12-275VAC	25A	600V	3-32VDC
12-275VAC	25A	600V	20-265VAC/DC
12-275VAC	35A	600V	3-32VDC
12-275VAC	35A	600V	20-265VAC/DC
12-275VAC	50A	600V	3-32VDC
12-275VAC	75A	600V	3-32VDC
12-275VAC	95A	600V	3-32VDC
12-275VAC	125A	600V	3-32VDC
24-510VAC	35A	1200V	3,5-32VDC
24-510VAC	35A	1200V	20-265VAC/DC
24-510VAC	50A	1200V	3,5-32VDC
24-510VAC	50A	1200V	3,5-32VDC
24-510VAC	50A	1200V	20-265VAC/DC
24-510VAC	75A	1200V	3,5-32VDC
24-510VAC	75A	1200V	3,5-32VDC
24-510VAC	75A	1200V	20-265VAC/DC
24-510VAC	95A	1200V	3,5-32VDC
24-510VAC	95A	1200V	20-265VAC/DC
24-510VAC	125A	1200V	3,5-32VDC
24-510VAC	125A	1200V	20-265VAC/DC

Reference

• Typical applications

SO8 range Designed for most types of loads.

(For three phase motors or very inductive loads we recommend the use of our SO7 random range).

SO842074

/ Injection moulding machines for plastic or rubber

/ Medical equipment

• Versatile, easy and quick connections

SO842974

SO843070

SO843970

s Packaging machines

/ Industrial ovens / soldering machines

SO845070

SO847070

Power wiring

Zero cross with low zero-cross level (<12V) Voltage protection on input (transil) and output (VDR) with very high immunity according to IEC/EN61000-4-4 and IEC/EN61000-4-5. For S08xxx40 : transient proof by self-protection (Tryristors turn on in case of overvoltage) IP20 protection Regulated input current Control status LED

SO848070

s Machines for the textile industry

SO849070

/ Coffee machines

SO863070

Direct connection by wire or tip With tips with contained palm

2 x 6 mm² (AWG10) fine strand i.e. 32A Up to 25mm² (AWG4) i.e. 85A 2 x 10 mm² (AWG8) solid i.e. 50A Up to 50mm² (AWG1)

with or without special adaptations i.e. 150A

Screw with brake washers

Better behaviour with shocks and vibrations

s Industrial or scene lighting

SO863970

SO865040

• Standard characteristics

SO865070

Fastons on request

SO865970


	SOxxIxxx	SOxx2xxx	SOxx3xxx	SOxx5xx	SOxx7xxx	SOxx8xxx	SOxx9xxx
Nominal current	12 A	25 A	35 A	50 A	75 A	95 A	125 A
Itsm (10ms) min	120 A	250 A	400 A	550 A	1000 A	1500 A	2000 A
I2t (A2s) < 10ms (typical)	128A²s	600A²s	1250A²s	2500A²s	7200A²s	14400A²s	24000A²s
Rthj/c	2,3K/W	1,7K/W	0,6K/W	0,45K/W	0,4K/W	0,3K/W	0,25K/W
Operating temperature	-55 to +80°C			-40 to +80°C
Storage temperature	-55 to +125°C			-40 to +125°C
Input/Output insulation	4000VMRS
Uimp	4000V
Pollution level	2

Control wiring

SO867040

SO867070

SO867970

SO868070

Screws connection

Removable spring terminals

SO868970

SO869070

SO869970
