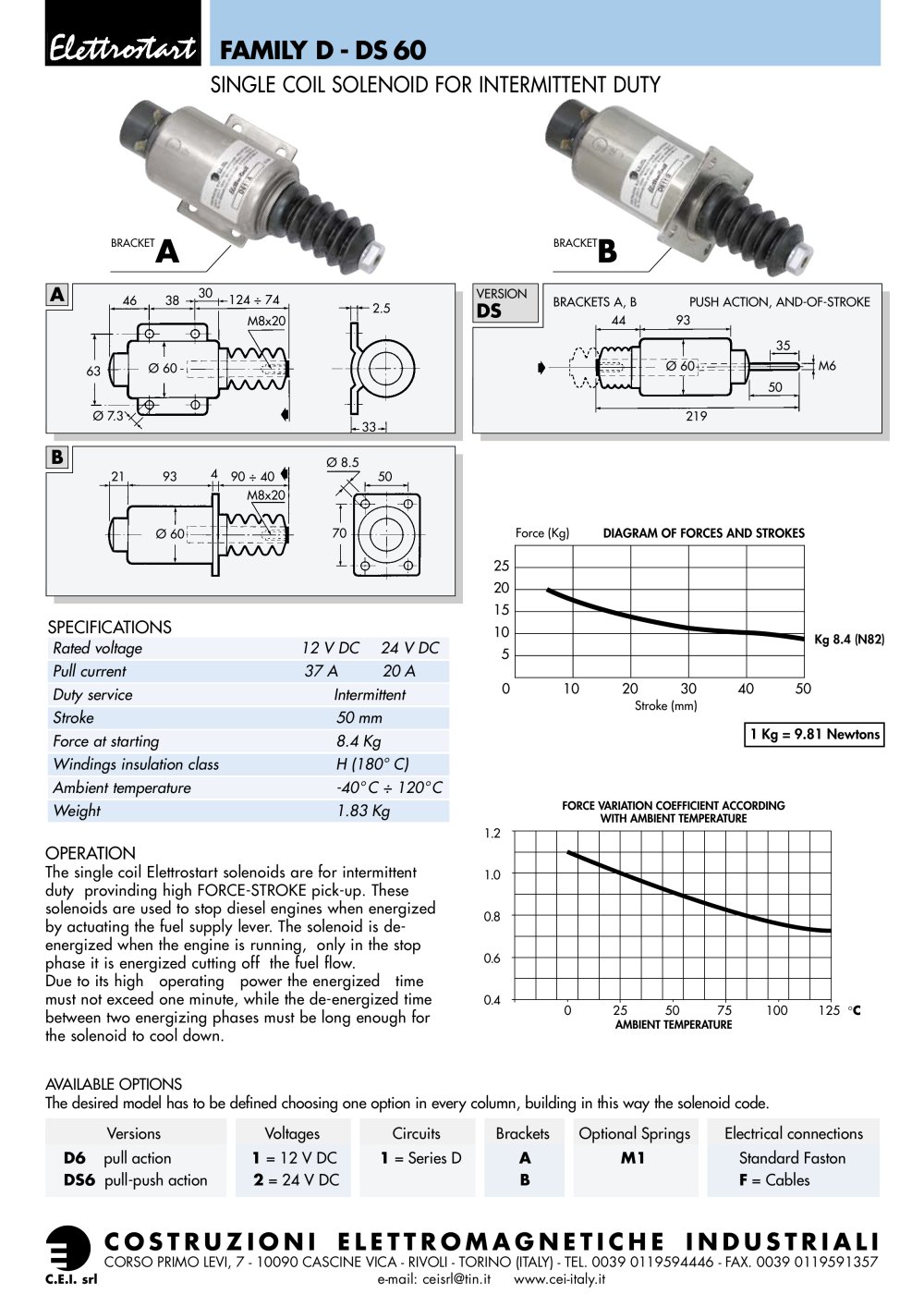

FAMILY D - DS 60

SINGLE COIL SOLENOID FOR INTERMITTENT DUTY

BRACKET

A

BRACKET

B

A

VERSION

DS

44PUSH ACTION, AND-OF-STROKEBRACKETS A, B5035M693219 6346382.533M8x20 M8x20 30124 ÷ 74Ø 7.3Ø 60Ø 60 Ø 60

B

Ø 8.52170 935090 ÷ 404 Force (Kg) DIAGRAM OF FORCES AND STROKES 2520 15105

SPECIFICATIONS

Rated voltage 12 V DC 24 V DC Pull current 37 A 20 A Duty service Intermittent Stroke 50 mm Force at starting 8.4 Kg Windings insulation class H (180° C) Ambient temperature -40° C ÷ 120° C Weight 1.83 Kg
Kg 8.4 (N82) 01020304050 Stroke (mm) 1 Kg = 9.81 Newtons FORCE VARIATION COEFFICIENT ACCORDINGWITH AMBIENT TEMPERATURE AMBIENT TEMPERATURE

OPERATION

The single coil Elettrostart solenoids are for intermittent duty provinding high FORCE-STROKE pick-up. These solenoids are used to stop diesel engines when energized by actuating the fuel supply lever. The solenoid is de- energized when the engine is running, only in the stop phase it is energized cutting off the fuel flow. Due to its high operating power the energized time must not exceed one minute, while the de-energized time between two energizing phases must be long enough for the solenoid to cool down.
00.40.60.81.0 1.2 255075100125 AVAILABLE OPTIONSThe desired model has to be defined choosing one option in every column, building in this way the solenoid code.
o C Versions Voltages Circuits Brackets Optional Springs Electrical connections D6 pull action 1 = 12 V DC 1 = Series D A M1 Standard Faston DS6 pull-push action 2 = 24 V DC B F = Cables

COSTRUZIONI ELETTROMAGNETICHE INDUSTRIALI

CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: ceisrl@tin.it www.cei-italy.it C.E.I. srl
