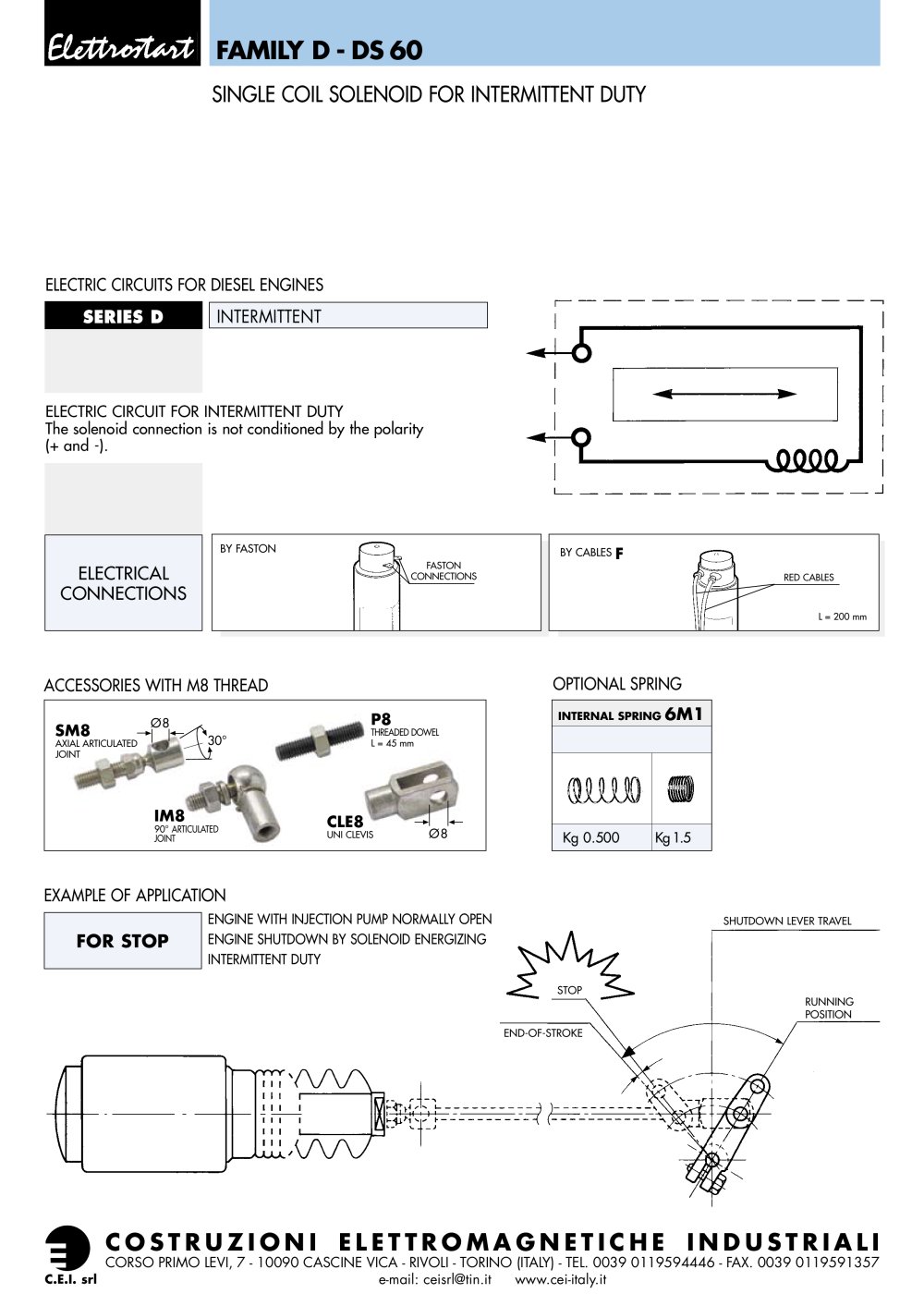

FAMILY D - DS 60
SINGLE COIL SOLENOID FOR INTERMITTENT DUTY
ELECTRIC CIRCUITS FOR DIESEL ENGINES
SERIES D INTERMITTENT
ELECTRIC CIRCUIT FOR INTERMITTENT DUTYThe solenoid connection is not conditioned by the polarity
(+ and -).
BY FASTON BY CABLES
F
ELECTRICALCONNECTIONS
FASTONCONNECTIONS RED CABLES L = 200 mm
ACCESSORIES WITH M8 THREAD OPTIONAL SPRING SM8
Ø 8
P8
INTERNAL SPRING
6M1
THREADED DOWEL AXIAL ARTICULATED
JOINT
30°
L = 45 mm
IM8
90° ARTICULATEDJOINT
CLE8
UNI CLEVIS
Ø 8 Kg 0.500 Kg 1.5
EXAMPLE OF APPLICATION
ENGINE WITH INJECTION PUMP NORMALLY OPENENGINE SHUTDOWN BY SOLENOID ENERGIZING
INTERMITTENT DUTY
FOR STOP
STOPSHUTDOWN LEVER TRAVELRUNNINGPOSITIONEND-OF-STROKE
