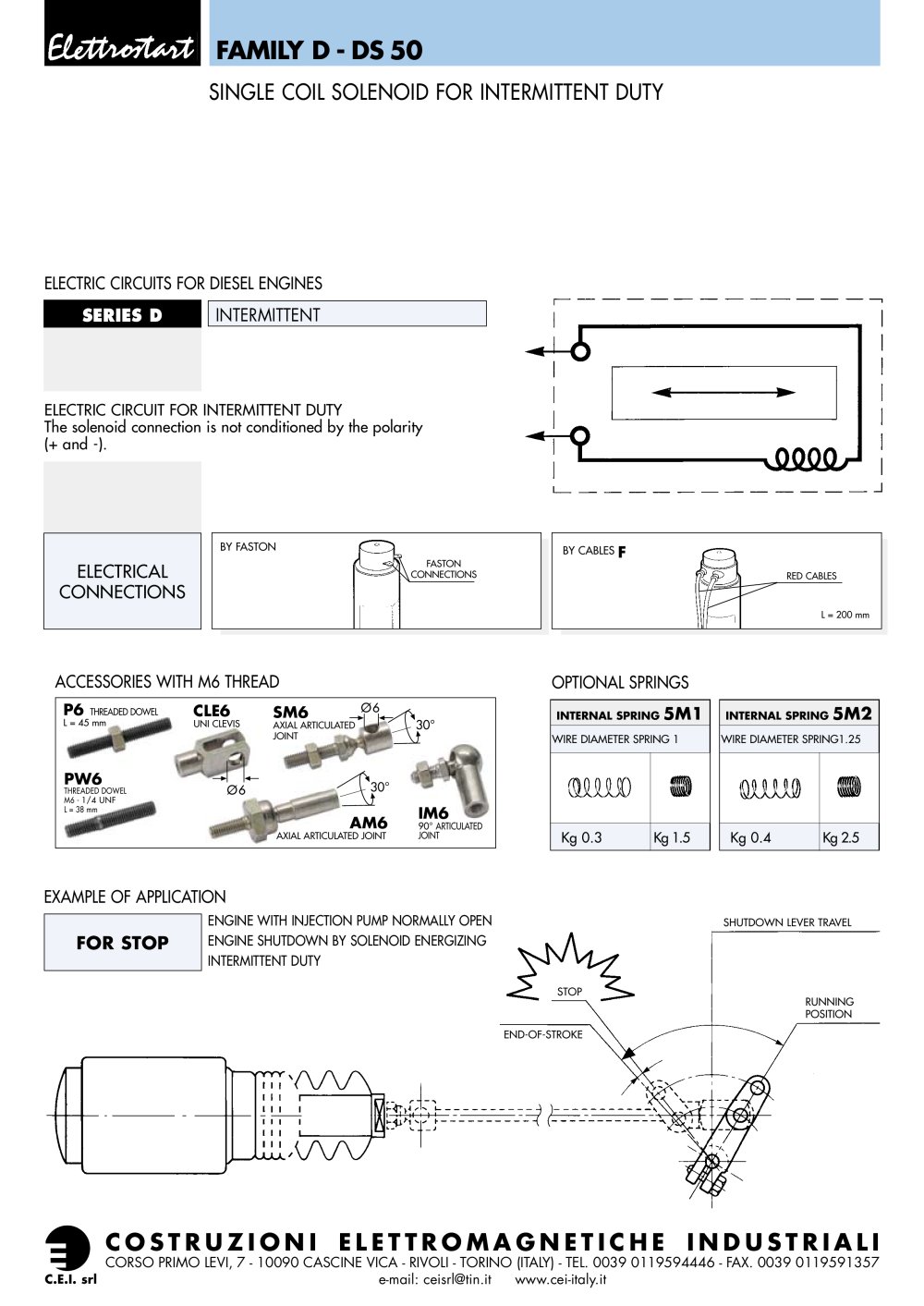

FAMILY D - DS 50

SINGLE COIL SOLENOID FOR INTERMITTENT DUTY

ELECTRIC CIRCUITS FOR DIESEL ENGINES

SERIES D INTERMITTENT

ELECTRIC CIRCUIT FOR INTERMITTENT DUTYThe solenoid connection is not conditioned by the polarity (+ and -).

BY FASTON BY CABLES

F

ELECTRICALCONNECTIONS

FASTONCONNECTIONS RED CABLES L = 200 mm

ACCESSORIES WITH M6 THREAD OPTIONAL SPRINGS P6

THREADED DOWEL

CLE6 SM6

Ø 6

L = 45 mm UNI CLEVIS

INTERNAL SPRING

AXIAL ARTICULATEDJOINT

30°

5M1

INTERNAL SPRING

5M2

WIRE DIAMETER SPRING 1 WIRE DIAMETER SPRING1.25

PW6

THREADED DOWELM6 - 1/4 UNF

Ø 6 30°

L = 38 mm AXIAL ARTICULATED JOINT

AM6 IM6

90° ARTICULATEDJOINT

Kg 0.3 Kg 1.5 Kg 0.4 Kg 2.5

EXAMPLE OF APPLICATION

ENGINE WITH INJECTION PUMP NORMALLY OPENENGINE SHUTDOWN BY SOLENOID ENERGIZING INTERMITTENT DUTY

FOR STOP

STOPSHUTDOWN LEVER TRAVELRUNNINGPOSITIONEND-OF-STROKE
