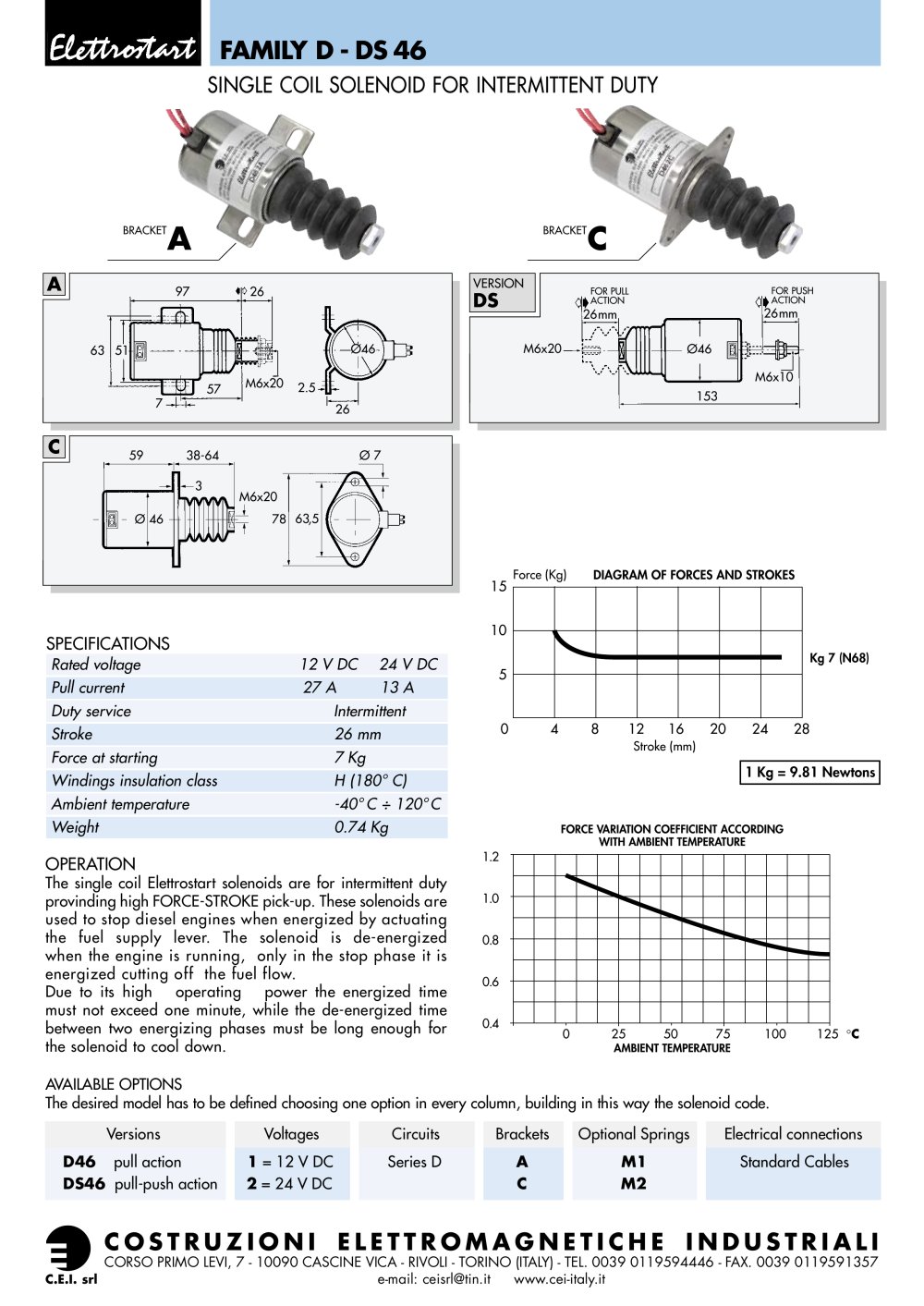

FAMILY D - DS 46

SINGLE COIL SOLENOID FOR INTERMITTENT DUTY

BRACKET

A

BRACKET

C

A

VERSION

DS

FOR PULLACTIONFOR PUSHACTION Ø466397262.557726M6x2051 Ø4626 mm26 mm 153M6x20M6x10

C

5938-64Ø 77863,5M6x203Ø 46 Force (Kg) DIAGRAM OF FORCES AND STROKES

SPECIFICATIONS

Rated voltage 12 V DC 24 V DC Pull current 27 A 13 A Duty service Intermittent Stroke 26 mm Force at starting 7 Kg Windings insulation class H (180° C) Ambient temperature -40° C ÷ 120° C Weight 0.74 Kg
Kg 7 (N68) 51015 0481216202428 Stroke (mm) 1 Kg = 9.81 Newtons FORCE VARIATION COEFFICIENT ACCORDINGWITH AMBIENT TEMPERATURE AMBIENT TEMPERATURE

OPERATION

The single coil Elettrostart solenoids are for intermittent duty provinding high FORCE-STROKE pick-up. These solenoids are used to stop diesel engines when energized by actuating the fuel supply lever. The solenoid is de-energized when the engine is running, only in the stop phase it is energized cutting off the fuel flow. Due to its high operating power the energized time must not exceed one minute, while the de-energized time between two energizing phases must be long enough for the solenoid to cool down.
00.40.60.81.01.2 255075100125 o C AVAILABLE OPTIONSThe desired model has to be defined choosing one option in every column, building in this way the solenoid code. Versions Voltages Circuits Brackets Optional Springs Electrical connections D46 pull action 1 = 12 V DC Series D A M1 Standard Cables DS46 pull-push action 2 = 24 V DC C M2

COSTRUZIONI ELETTROMAGNETICHE INDUSTRIALI

CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: ceisrl@tin.it www.cei-italy.it C.E.I. srl
