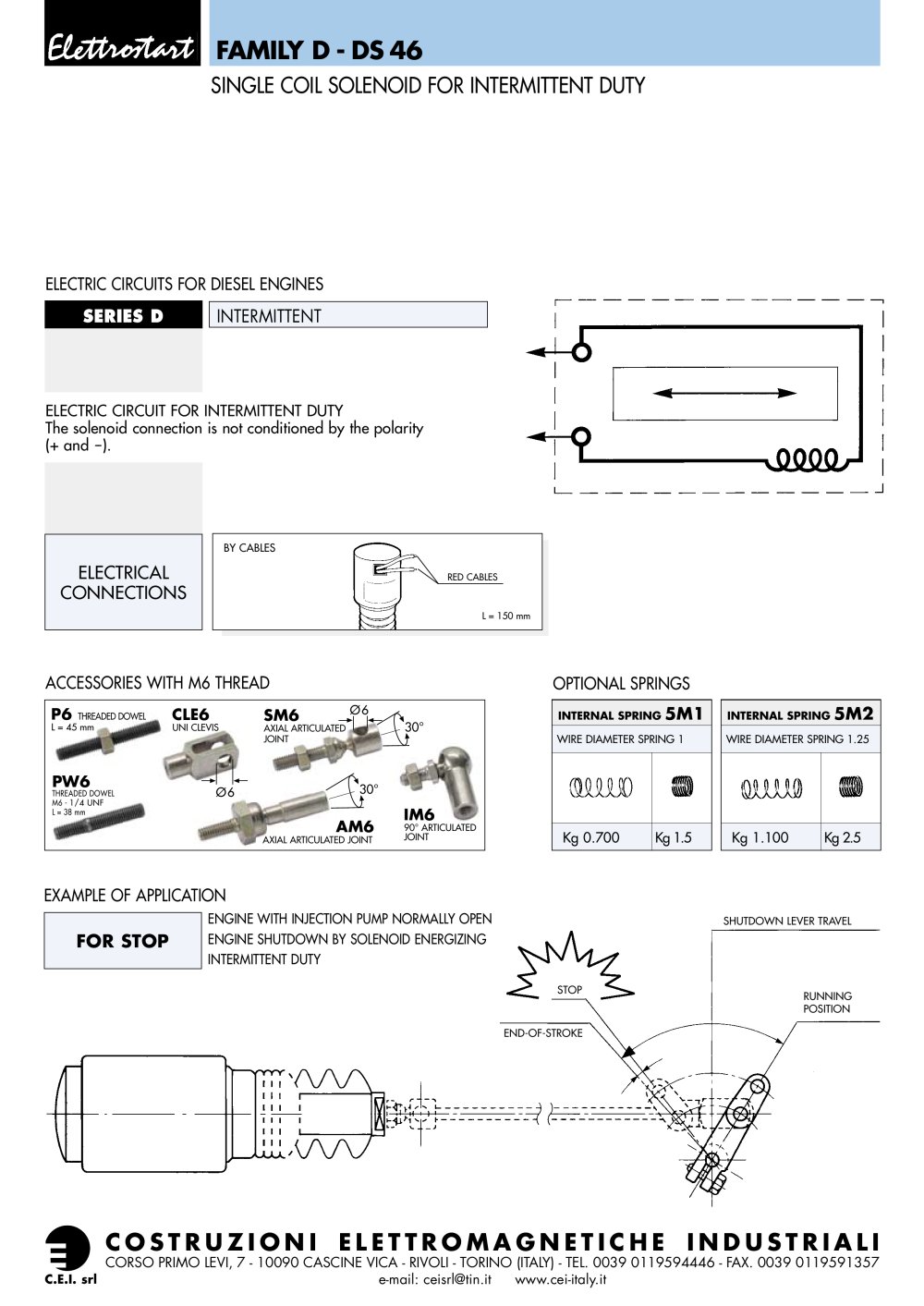

FAMILY D - DS 46

SINGLE COIL SOLENOID FOR INTERMITTENT DUTY

ELECTRIC CIRCUITS FOR DIESEL ENGINES ACCESSORIES WITH M6 THREAD

SERIES D INTERMITTENT

ELECTRIC CIRCUIT FOR INTERMITTENT DUTYThe solenoid connection is not conditioned by the polarity (+ and --).

BY CABLES

ELECTRICALCONNECTIONS

RED CABLES L = 150 mm

OPTIONAL SPRINGS P6

THREADED DOWEL

CLE6 SM6

Ø 6

INTERNAL SPRING

L = 45 mm UNI CLEVIS AXIAL ARTICULATEDJOINT

30°

5M1

INTERNAL SPRING

5M2

WIRE DIAMETER SPRING 1 WIRE DIAMETER SPRING 1.25

PW6

THREADED DOWELM6 - 1/4 UNF

Ø 6 30°

L = 38 mm

IM6

AXIAL ARTICULATED JOINT

AM6

90° ARTICULATEDJOINT

Kg 0.700 Kg 1.5 Kg 1.100 Kg 2.5

EXAMPLE OF APPLICATION

ENGINE WITH INJECTION PUMP NORMALLY OPENENGINE SHUTDOWN BY SOLENOID ENERGIZING INTERMITTENT DUTY

FOR STOP

STOPSHUTDOWN LEVER TRAVELRUNNINGPOSITIONEND-OF-STROKE

COSTRUZIONI ELETTROMAGNETICHE INDUSTRIALI

CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: ceisrl@tin.it www.cei-italy.it C.E.I. srl
