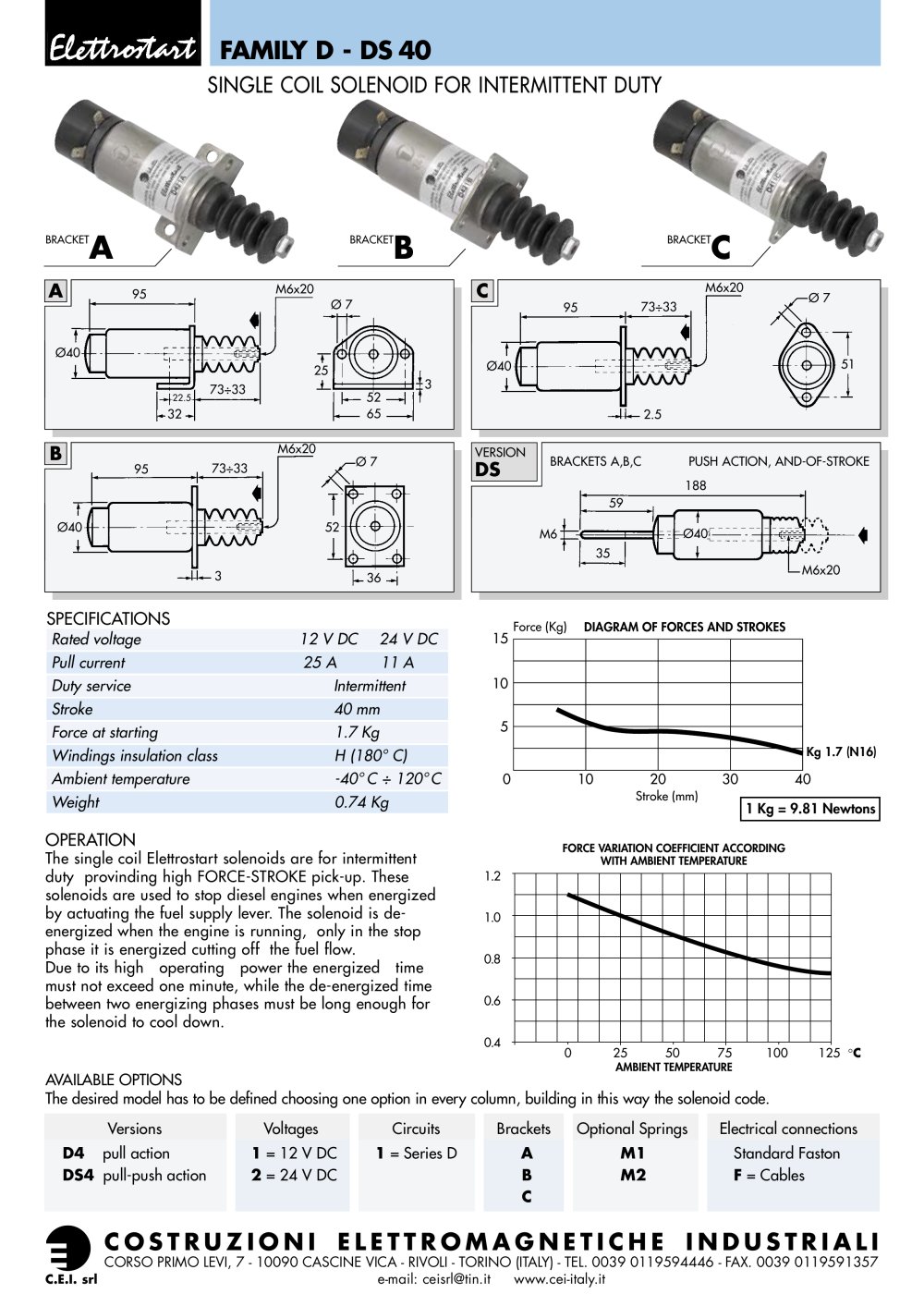

FAMILY D - DS 40

SINGLE COIL SOLENOID FOR INTERMITTENT DUTY

BRACKET

A

BRACKET

B

BRACKET

C

A C

Ø409532 Ø40955173÷33M6x20Ø 72.5Ø409573÷33M6x20Ø 736523 22.5 73÷33M6x20Ø 72552653

B

VERSION

DS

Ø40M63559188M6x20PUSH ACTION, AND-OF-STROKEBRACKETS A,B,C

SPECIFICATIONS

Force (Kg) Stroke (mm) DIAGRAM OF FORCES AND STROKES Rated voltage 12 V DC 24 V DC Pull current 25 A 11 A Duty service Intermittent Stroke 40 mm Force at starting 1.7 Kg Windings insulation class H (180° C) Ambient temperature -40° C ÷ 120° C Weight 0.74 Kg
Kg 1.7 (N16) 01020304051015 1 Kg = 9.81 Newtons

OPERATION

The single coil Elettrostart solenoids are for intermittent duty provinding high FORCE-STROKE pick-up. These solenoids are used to stop diesel engines when energized by actuating the fuel supply lever. The solenoid is de- energized when the engine is running, only in the stop phase it is energized cutting off the fuel flow. Due to its high operating power the energized time must not exceed one minute, while the de-energized time between two energizing phases must be long enough for the solenoid to cool down.
FORCE VARIATION COEFFICIENT ACCORDINGWITH AMBIENT TEMPERATURE AMBIENT TEMPERATURE 00.40.60.81.0 1.2 255075100125 AVAILABLE OPTIONSThe desired model has to be defined choosing one option in every column, building in this way the solenoid code. Versions Voltages Circuits Brackets Optional Springs Electrical connections
o C D4 pull action 1 = 12 V DC 1 = Series D A M1 Standard Faston DS4 pull-push action 2 = 24 V DC B M2 F = Cables C
