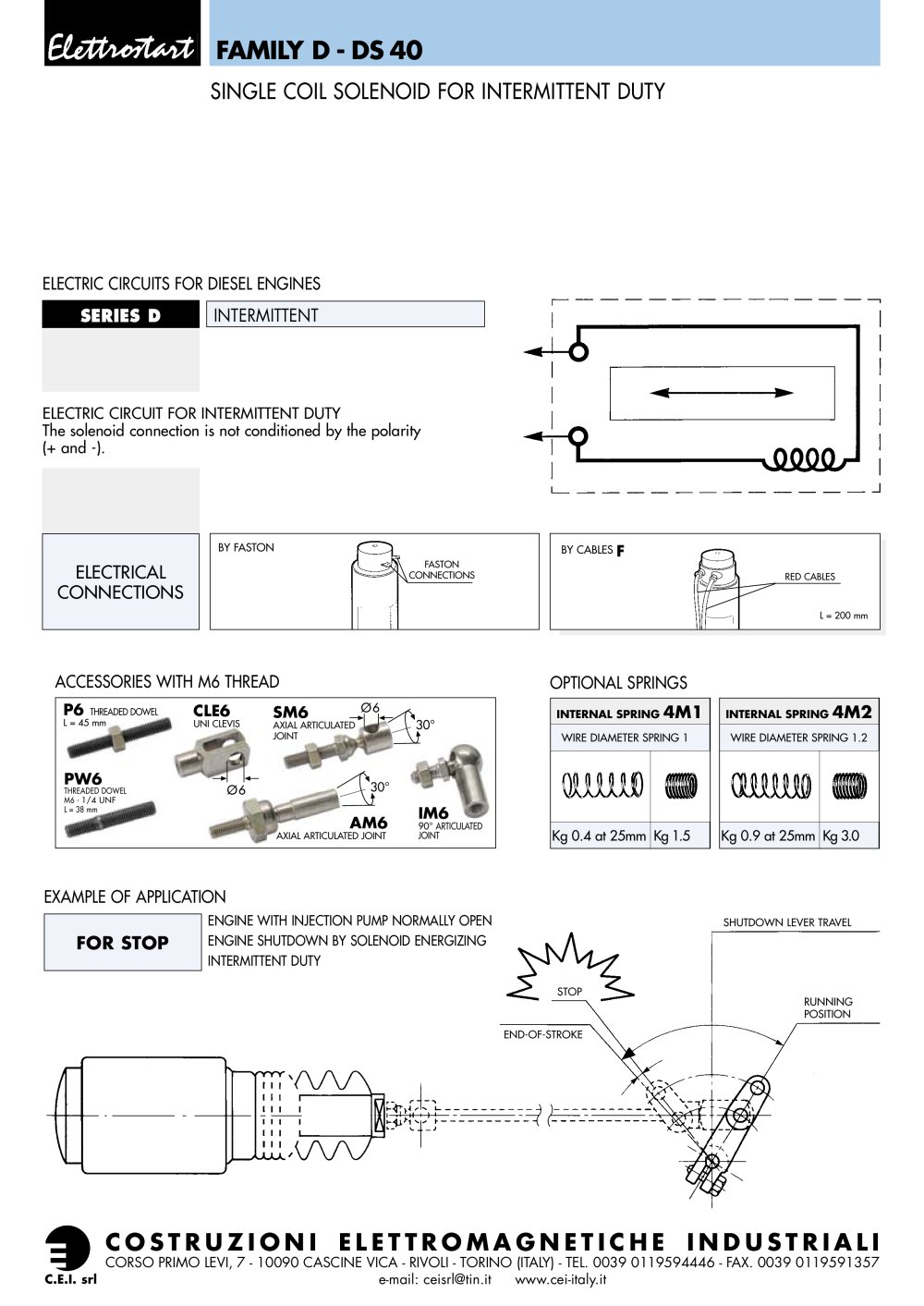

FAMILY D - DS 40

SINGLE COIL SOLENOID FOR INTERMITTENT DUTY

ELECTRIC CIRCUITS FOR DIESEL ENGINES

SERIES D INTERMITTENT

ELECTRIC CIRCUIT FOR INTERMITTENT DUTYThe solenoid connection is not conditioned by the polarity (+ and -).

BY FASTON BY CABLES

F

ELECTRICALCONNECTIONS

FASTONCONNECTIONS RED CABLES L = 200 mm

ACCESSORIES WITH M6 THREAD OPTIONAL SPRINGS P6

THREADED DOWEL

CLE6 SM6

Ø 6

L = 45 mm

INTERNAL SPRING

UNI CLEVIS AXIAL ARTICULATEDJOINT

30°

4M1

INTERNAL SPRING

4M2

WIRE DIAMETER SPRING 1 WIRE DIAMETER SPRING 1.2

PW6

THREADED DOWELM6 - 1/4 UNF

Ø 6 30°

L = 38 mm AXIAL ARTICULATED JOINT

AM6 IM6

90° ARTICULATEDJOINT

Kg 0.4 at 25mm Kg 1.5 Kg 0.9 at 25mm Kg 3.0

EXAMPLE OF APPLICATION

ENGINE WITH INJECTION PUMP NORMALLY OPENENGINE SHUTDOWN BY SOLENOID ENERGIZING INTERMITTENT DUTY

FOR STOP

STOPSHUTDOWN LEVER TRAVELRUNNINGPOSITIONEND-OF-STROKE

COSTRUZIONI ELETTROMAGNETICHE INDUSTRIALI

CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: ceisrl@tin.it www.cei-italy.it C.E.I. srl
