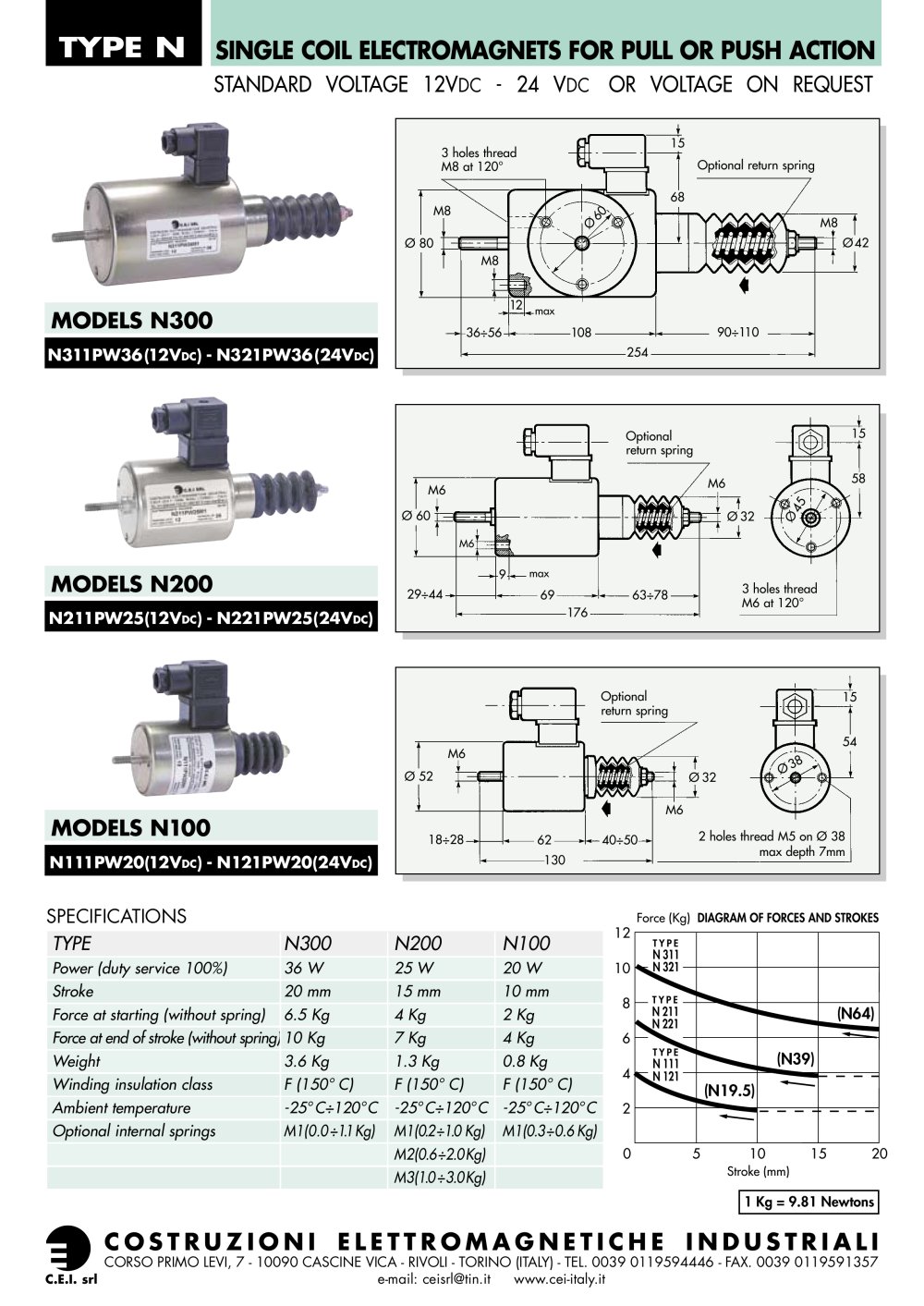

TYPE N SINGLE COIL ELECTROMAGNETS FOR PULL OR PUSH ACTION

STANDARD VOLTAGE 12V

DC

- 24 V

DC

OR VOLTAGE ON REQUEST

15
Ø 60 Ø 80M8M836÷5610825490÷110 68 12M8Ø 42Optional return spring3 holes thread M8 at 120°

MODELS N300

max

N311PW36(12V

DC

) - N321PW36(24V

DC

)

Optionalreturn spring 3 holes thread M6 at 120° 15 5896963÷7829÷44176 M6M6 Ø 60Ø 32
Ø 45 M6

MODELS N200

max

N211PW25(12V

DC

) - N221PW25(24V

DC

)

Ø 5218÷286240÷505415 130Ø 32M6M6Optionalreturn spring 2 holes thread M5 on Ø 38max depth 7mm
Ø 38

MODELS N100

N111PW20(12V

DC

) - N121PW20(24V

DC

)

SPECIFICATIONS

Force (Kg) Stroke (mm) DIAGRAM OF FORCES AND STROKES

T YPE N300 N200 N100

TYPE N 311N 321

Power (duty service 100%) 36 W 25 W 20 W Stroke 20 mm 15 mm 10 mm Force at starting (without spring) 6.5 Kg 4 Kg 2 Kg Force at end of stroke (without spring) 10 Kg 7 Kg 4 Kg Weight 3.6 Kg 1.3 Kg 0.8 Kg Winding insulation class F (150° C) F (150° C) F (150° C) Ambient temperature -25° C÷120° C -25° C÷120° C -25° C÷120° C Optional internal springs

TYPE N 211 N 221

(N64)

TYPE N 111 N 121

(N39)(N19.5) M1(0.0÷1.1Kg) M1(0.2÷1.0Kg) M1(0.3÷0.6Kg) M2(0.6÷2.0Kg) M3(1.0÷3.0Kg)

0246 810 12 5101520 1 Kg = 9.81 Newtons

COSTRUZIONI ELETTROMAGNETICHE INDUSTRIALI

CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: ceisrl@tin.it www.cei-italy.it

C.E.I. srl
