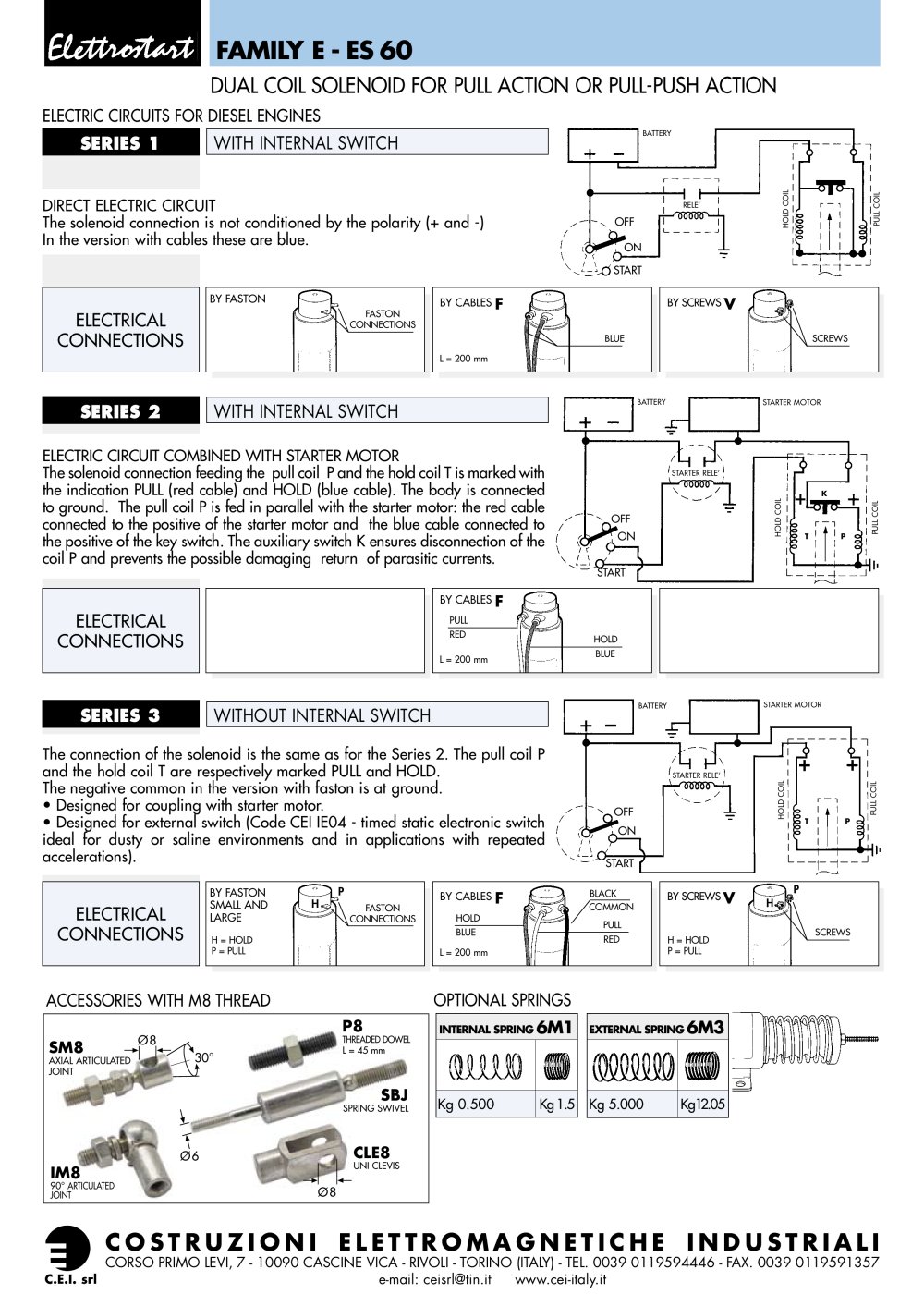

FAMILY E - ES 60
DUAL COIL SOLENOID FOR PULL ACTION OR PULL-PUSH ACTION
ELECTRIC CIRCUITS FOR DIESEL ENGINES
OPTIONAL SPRINGS
BATTERY
SERIES 1 WITH INTERNAL SWITCH
DIRECT ELECTRIC CIRCUITThe solenoid connection is not conditioned by the polarity (+ and -)
In the version with cables these are blue.
RELE’
OFFONSTART
PULL COIL
HOLD COIL
BY FASTON BY CABLES
F
BY SCREWS
V
ELECTRICALCONNECTIONS
FASTONCONNECTIONS BLUEL = 200 mm SCREWS
BATTERY
SERIES 2 WITH INTERNAL SWITCH
STARTER MOTORSTARTER RELE’
STARTER MOTORSTARTER RELE’
ELECTRIC CIRCUIT COMBINED WITH STARTER MOTORThe solenoid connection feeding the pull coil P and the hold coil T is marked with the indication PULL (red cable) and HOLD (blue cable). The body is connected to ground. The pull coil P is fed in parallel with the starter motor: the red cable connected to the positive of the starter motor and the blue cable connected to the positive of the key switch. The auxiliary switch K ensures disconnection of the coil P and prevents the possible damaging return of parasitic currents.
KTP
OFFONSTART
PULL COIL
HOLD COIL
BY CABLES
F
ELECTRICALCONNECTIONS
PULLRED HOLDBLUEL = 200 mm
SERIES 3 WITHOUT INTERNAL SWITCH
BATTERY
The connection of the solenoid is the same as for the Series 2. The pull coil Pand the hold coil T are respectively marked PULL and HOLD.
The negative common in the version with faston is at ground.
• Designed for coupling with starter motor.
• Designed for external switch (Code CEI IE04 - timed static electronic switch ideal for dusty or saline environments and in applications with repeated accelerations).
OFFONSTART
PULL COIL
HOLD COIL TP
BY FASTONSMALL AND
LARGE HPHP BY CABLES
F
BY SCREWS
COMMONBLACK
V
ELECTRICALCONNECTIONS
FASTONCONNECTIONS HOLDBLUE PULL SCREWS H = HOLD
P = PULLRED H = HOLDP = PULL L = 200 mm
ACCESSORIES WITH M8 THREAD P8
INTERNAL SPRING
SM8
Ř 8
THREADED DOWEL
6M1
EXTERNAL SPRING
6M3
L = 45 mm AXIAL ARTICULATEDJOINT
30°
SPRING SWIVEL
SBJ
Kg 0.500 Kg 1.5 Kg 5.000 Kg 12.05 Ř 6
CLE8 IM8
UNI CLEVIS 90° ARTICULATEDJOINT
Ř 8
COSTRUZIONI ELETTROMAGNETICHE INDUSTRIALI
CORSO PRIMO LEVI, 7 - 10090 CASCINE VICA - RIVOLI - TORINO (ITALY) - TEL. 0039 0119594446 - FAX. 0039 0119591357e-mail: ceisrl@tin.it www.cei-italy.it C.E.I. srl
