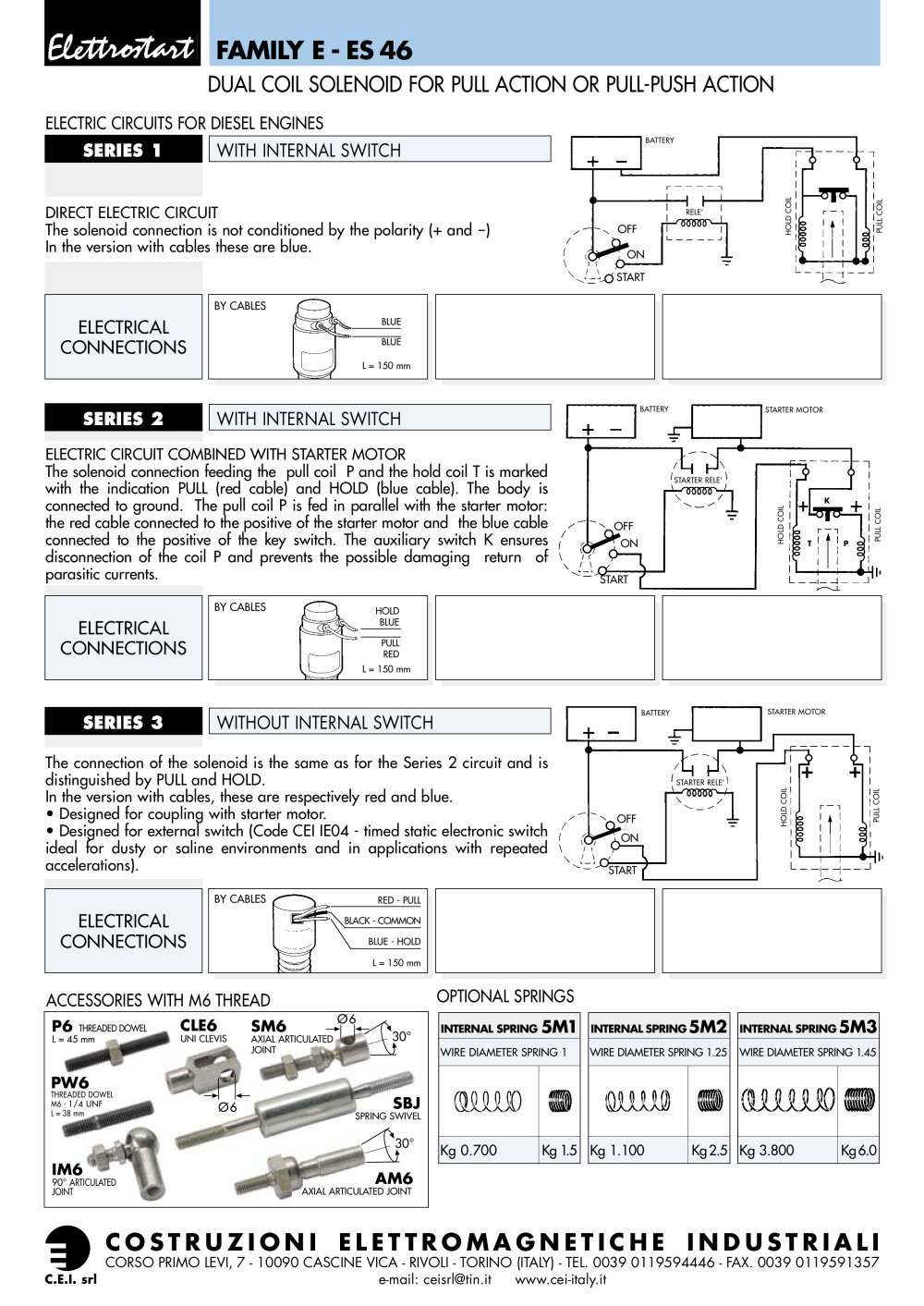

FAMILY E - ES 46

DUAL COIL SOLENOID FOR PULL ACTION OR PULL-PUSH ACTION

ELECTRIC CIRCUITS FOR DIESEL ENGINES OPTIONAL SPRINGS

BATTERY

SERIES 1 WITH INTERNAL SWITCH

DIRECT ELECTRIC CIRCUITThe solenoid connection is not conditioned by the polarity (+ and --) In the version with cables these are blue.

RELE’

OFFONSTART

PULL COIL HOLD COIL

BY CABLES BY CABLES BY CABLES

ELECTRICALCONNECTIONS

BLUE BLUE L = 150 mm
BATTERY

SERIES 2 WITH INTERNAL SWITCH

STARTER MOTORSTARTER RELE’ STARTER MOTORSTARTER RELE’

ELECTRIC CIRCUIT COMBINED WITH STARTER MOTORThe solenoid connection feeding the pull coil P and the hold coil T is marked with the indication PULL (red cable) and HOLD (blue cable). The body is connected to ground. The pull coil P is fed in parallel with the starter motor: the red cable connected to the positive of the starter motor and the blue cable connected to the positive of the key switch. The auxiliary switch K ensures disconnection of the coil P and prevents the possible damaging return of parasitic currents.

KTP

OFFONSTART

PULL COIL HOLD COIL HOLDBLUE

ELECTRICALCONNECTIONS

PULLRED L = 150 mm L = 150 mm

SERIES 3 WITHOUT INTERNAL SWITCH

BATTERY

The connection of the solenoid is the same as for the Series 2 circuit and is distinguished by PULL and HOLD. In the version with cables, these are respectively red and blue. • Designed for coupling with starter motor. • Designed for external switch (Code CEI IE04 - timed static electronic switch ideal for dusty or saline environments and in applications with repeated accelerations).

OFFONSTART

PULL COIL HOLD COIL RED - PULL

ELECTRICALCONNECTIONS

BLACK - COMMON BLUE - HOLD

ACCESSORIES WITH M6 THREAD P6

THREADED DOWEL

CLE6 SM6

Ø 6 30°

INTERNAL SPRING

L = 45 mm UNI CLEVIS AXIAL ARTICULATEDJOINT

5M1

INTERNAL SPRING

5M2

INTERNAL SPRING

5M3

WIRE DIAMETER SPRING 1 WIRE DIAMETER SPRING 1.25 WIRE DIAMETER SPRING 1.45

PW6

THREADED DOWELM6 - 1/4 UNF L = 38 mm

Ø 6

SPRING SWIVEL

SBJ

30° Kg 0.700 Kg 1.5 Kg 1.100 Kg 2.5 Kg 3.800 Kg 6.0

IM6

90° ARTICULATEDJOINT AXIAL ARTICULATED JOINT

AM6
