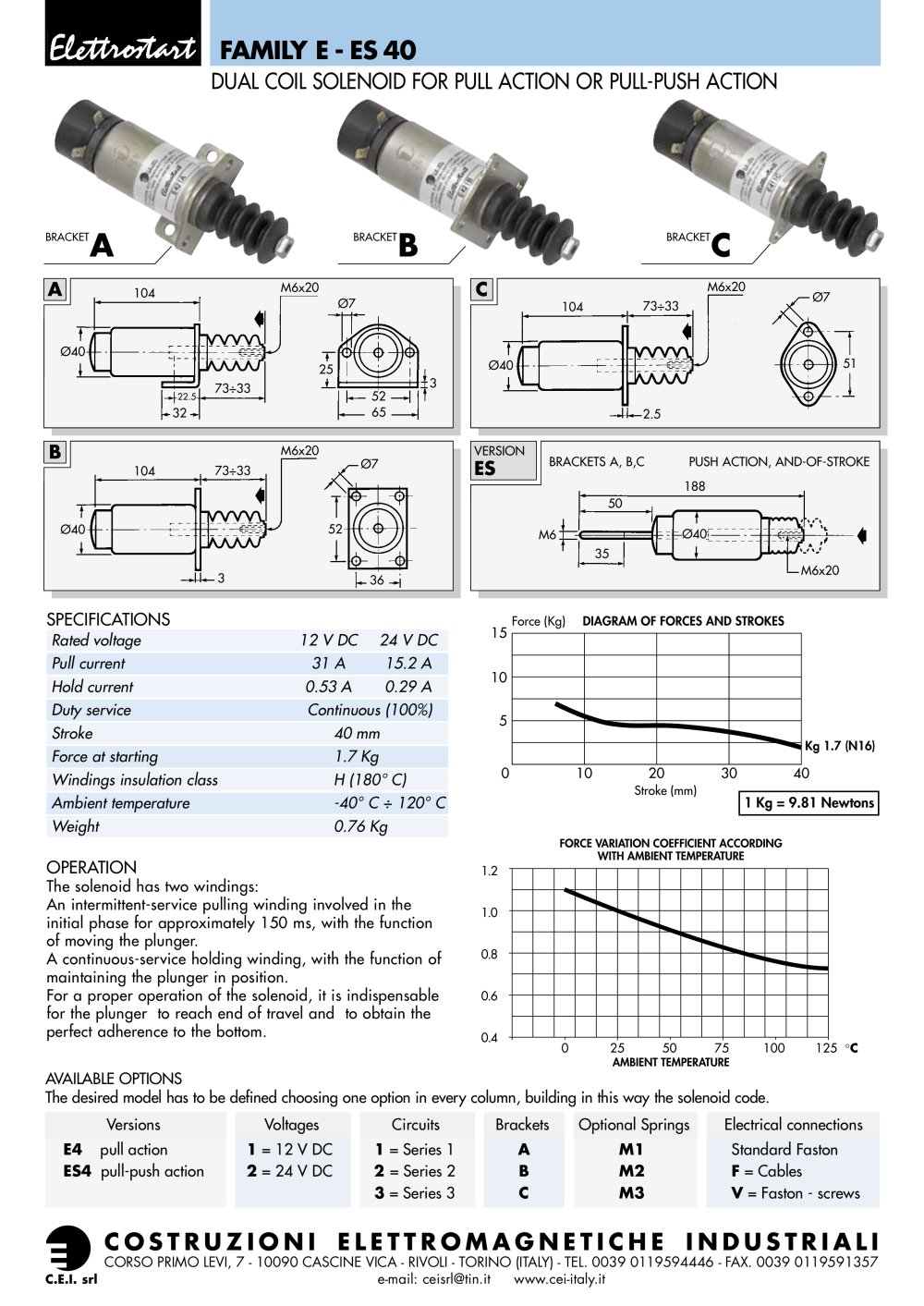

FAMILY E - ES 40

DUAL COIL SOLENOID FOR PULL ACTION OR PULL-PUSH ACTION

BRACKET

A

BRACKET

B

BRACKET

C

A C

Ø40 Ø40 104 10432 Ø401045173÷33M6x20Ø72.5 22.5 73÷3373÷33 M6x20 M6x20 Ø7 Ø725 36 52 52653 3

B

VERSION

ES

Ø40M63550188M6x20PUSH ACTION, AND-OF-STROKEBRACKETS A, B,C

SPECIFICATIONS

Force (Kg) Stroke (mm) DIAGRAM OF FORCES AND STROKES Rated voltage 12 V DC 24 V DC Pull current 31 A 15.2 A Hold current 0.53 A 0.29 A Duty service Continuous (100%) Stroke 40 mm Force at starting 1.7 Kg Windings insulation class H (180° C) Ambient temperature -40° C ÷ 120° C Weight 0.76 Kg
Kg 1.7 (N16) 01020304051015 1 Kg = 9.81 Newtons FORCE VARIATION COEFFICIENT ACCORDINGWITH AMBIENT TEMPERATURE AMBIENT TEMPERATURE

OPERATION

The solenoid has two windings:An intermittent-service pulling winding involved in the initial phase for approximately 150 ms, with the function of moving the plunger. A continuous-service holding winding, with the function of maintaining the plunger in position. For a proper operation of the solenoid, it is indispensable for the plunger to reach end of travel and to obtain the perfect adherence to the bottom.
00.40.60.81.0 1.2 255075100125 AVAILABLE OPTIONSThe desired model has to be defined choosing one option in every column, building in this way the solenoid code. Versions Voltages Circuits Brackets Optional Springs Electrical connections
o C E4 pull action 1 = 12 V DC 1 = Series 1 A M1 Standard Faston ES4 pull-push action 2 = 24 V DC 2 = Series 2 B M2 F = Cables 3 = Series 3 C M3 V = Faston - screws
