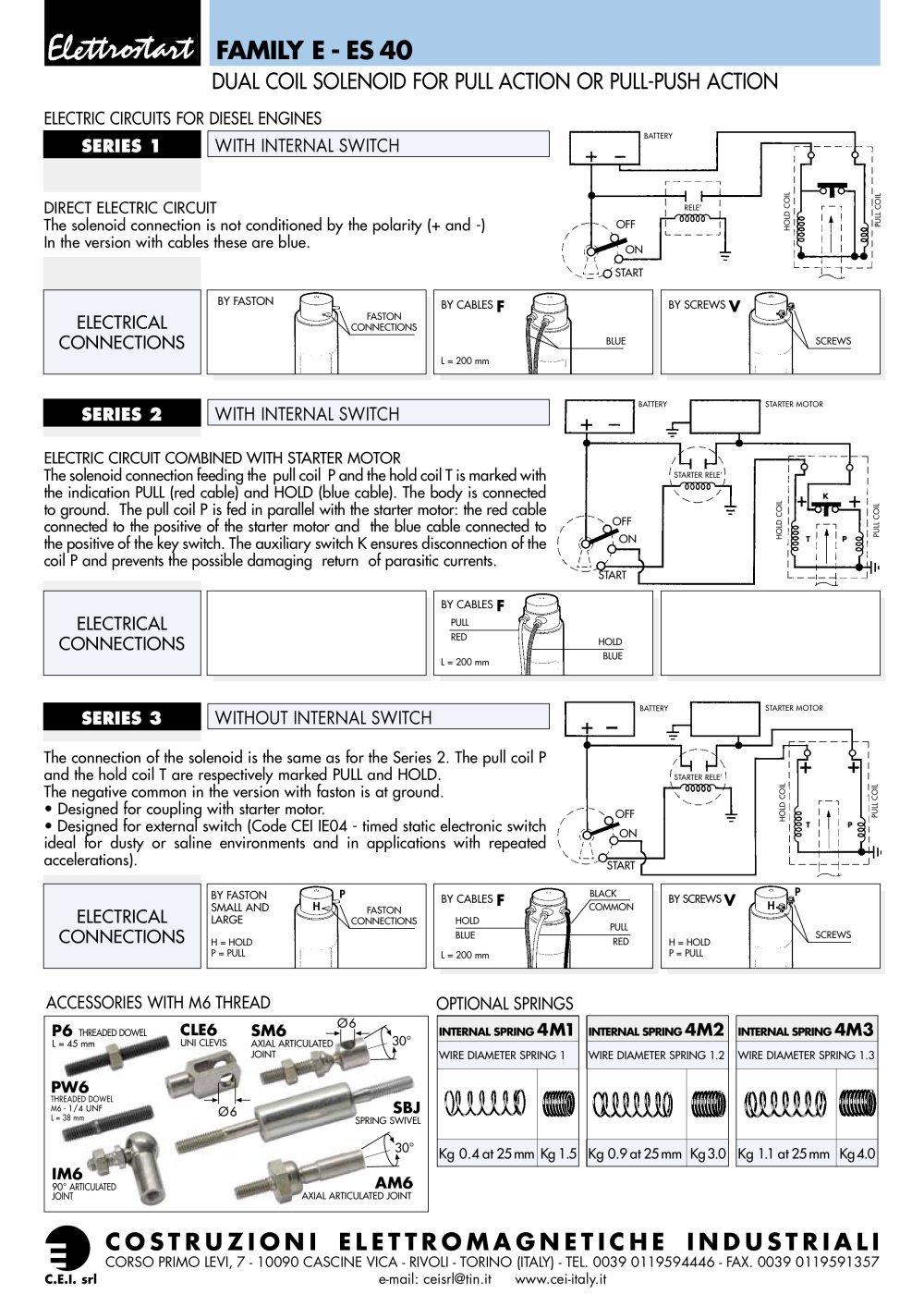

FAMILY E - ES 40

DUAL COIL SOLENOID FOR PULL ACTION OR PULL-PUSH ACTION

ELECTRIC CIRCUITS FOR DIESEL ENGINES OPTIONAL SPRINGS

BATTERY

SERIES 1 WITH INTERNAL SWITCH

DIRECT ELECTRIC CIRCUITThe solenoid connection is not conditioned by the polarity (+ and -) In the version with cables these are blue.

RELE’

OFFONSTART

PULL COIL HOLD COIL

BY FASTON BY CABLES

F

BY SCREWS

V

ELECTRICALCONNECTIONS

FASTONCONNECTIONS BLUEL = 200 mm SCREWS
BATTERYSTARTER MOTOR

SERIES 2 WITH INTERNAL SWITCH

ELECTRIC CIRCUIT COMBINED WITH STARTER MOTORThe solenoid connection feeding the pull coil P and the hold coil T is marked with the indication PULL (red cable) and HOLD (blue cable). The body is connected to ground. The pull coil P is fed in parallel with the starter motor: the red cable connected to the positive of the starter motor and the blue cable connected to the positive of the key switch. The auxiliary switch K ensures disconnection of the coil P and prevents the possible damaging return of parasitic currents.

STARTER RELE’ STARTER MOTORSTARTER RELE’ KTP

OFFONSTART

PULL COIL HOLD COIL

BY CABLES

F

ELECTRICALCONNECTIONS

PULLRED HOLDBLUEL = 200 mm

SERIES 3 WITHOUT INTERNAL SWITCH

BATTERY

The connection of the solenoid is the same as for the Series 2. The pull coil Pand the hold coil T are respectively marked PULL and HOLD. The negative common in the version with faston is at ground. • Designed for coupling with starter motor. • Designed for external switch (Code CEI IE04 - timed static electronic switch ideal for dusty or saline environments and in applications with repeated accelerations).

OFFONSTART

PULL COIL HOLD COIL TP

BY FASTONSMALL AND LARGE HPHP BY CABLES

F

COMMONBLACK

BY SCREWS

V

ELECTRICALCONNECTIONS

FASTONCONNECTIONS HOLD PULLRED SCREWS H = HOLD P = PULLBLUE H = HOLDP = PULL L = 200 mm

ACCESSORIES WITH M6 THREAD P6

THREADED DOWEL

CLE6 SM6

Ø 6

INTERNAL SPRING

L = 45 mm UNI CLEVIS AXIAL ARTICULATEDJOINT

30°

4M1

INTERNAL SPRING

4M2

INTERNAL SPRING

4M3

WIRE DIAMETER SPRING 1 WIRE DIAMETER SPRING 1.2 WIRE DIAMETER SPRING 1.3

PW6

THREADED DOWELM6 - 1/4 UNF L = 38 mm

Ø 6

SPRING SWIVEL

SBJ

30° Kg 0.4 at 25 mm Kg 1.5 Kg 0.9at 25 mm Kg 3.0 Kg 1.1 at 25 mm Kg 4.0

IM6

90° ARTICULATEDJOINT AXIAL ARTICULATED JOINT

AM6
