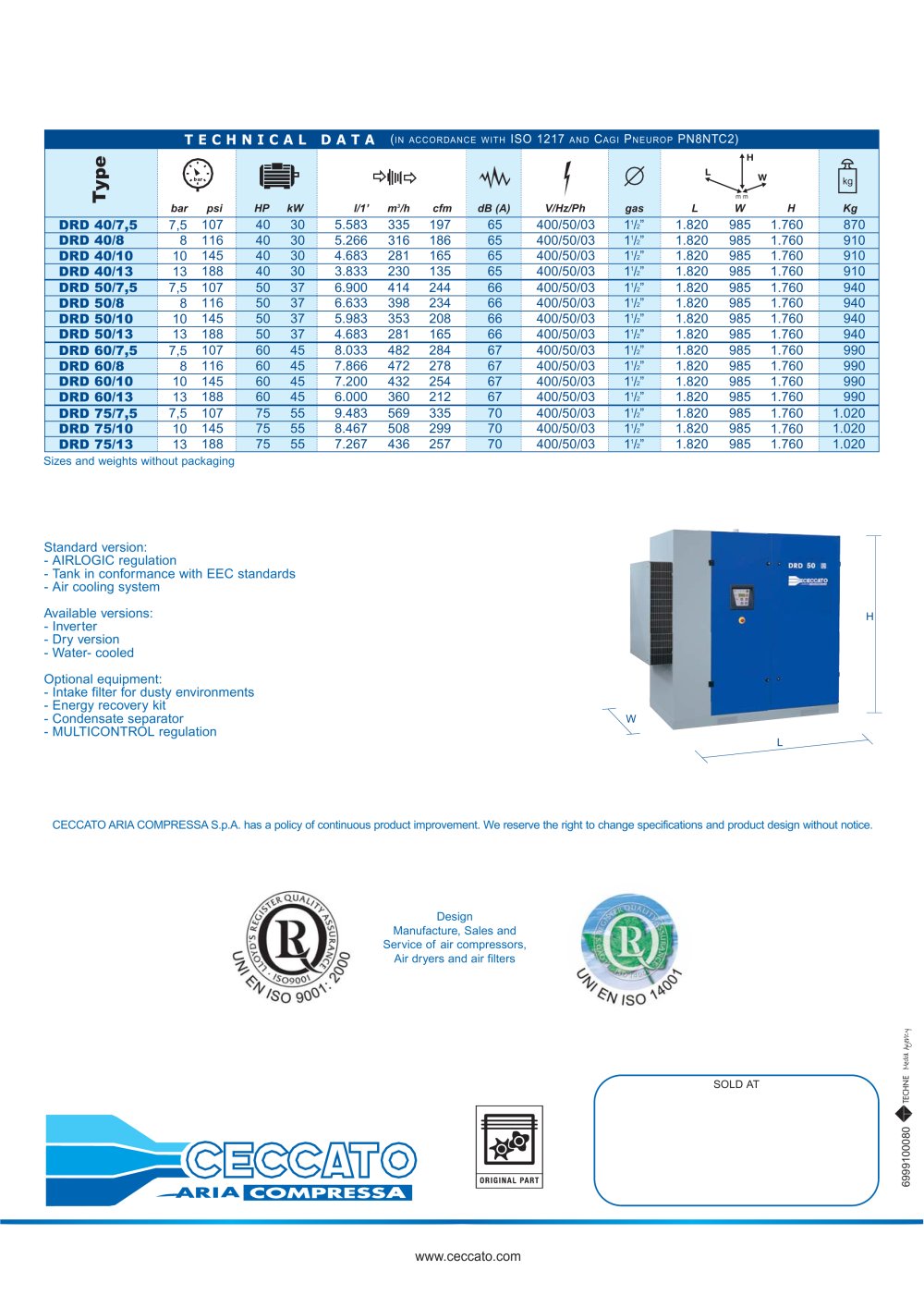

TECHNICAL

(in accordance with ISO 1217 and Cagi Pneurop PN8NTC2)

DATA


Type	*bar psi*	*HP kW*	*m'/h cfm*	*dB (A)*	*V/Hz/Ph*	0 *gas*	m m *L W H*	Kg
DRD 40/7,5	7,5 107	40 30	5.583 335 197	65	400/50/03	1V2"	1.820 985 1.760	870
DRD 40/8	8 116	40 30	5.266 316 186	65	400/50/03	1V2"	1.820 985 1.760	910
DRD 40/10	10 145	40 30	4.683 281 165	65	400/50/03	1V2"	1.820 985 1.760	910
^DRD ^40/13	13 188	40 30	3.833 230 135	65	400/50/03	1V2"	1.820 985 1.760	910
DRD 50/7,5	7,5 107	50 37	6.900 414 244	66	400/50/03	1V2"	1.820 985 1.760	940
DRD 50/8	8 116	50 37	6.633 398 234	66	400/50/03	1V2"	1.820 985 1.760	940
DRD 50/10	10 145	50 37	5.983 353 208	66	400/50/03	1V2"	1.820 985 1.760	940
DRD 50/13	13 188	50 37	4.683 281 165	66	400/50/03	1V2"	1.820 985 1.760	940
DRD 60/7,5	7,5 107	60 45	8.033 482 284	67	400/50/03	1V2"	1.820 985 1.760	990
^DRD ^60/8	8 116	60 45	7.866 472 278	67	400/50/03	1V2"	1.820 985 1.760	990
DRD 60/10	10 145	60 45	7.200 432 254	67	400/50/03	1V2"	1.820 985 1.760	990
DRD 60/13	13 188	60 45	6.000 360 212	67	400/50/03	1V2"	1.820 985 1.760	990
DRD 75/7,5	7,5 107	75 55	9.483 569 335	70	400/50/03	1V2"	1.820 985 1.760	1.020
DRD 75/10	10 145	75 55	8.467 508 299	70	400/50/03	1V2"	1.820 985 1.760	1.020
DRD 75/13	13 188	75 55	7.267 436 257	70	400/50/03	1V2"	1.820 985 1.760	1.020

Sizes and weights without packaging

Standard version:

- AIRLOGIC regulation

- Tank in conformance with EEC standards

- Air cooling system

Available versions:

- Inverter

- Dry version

- Water- cooled

Optional equipment:

- Intake filter for dusty environments

- Energy recovery kit

- Condensate separator \w

- MULTICONTROL regulation V-

CECCATO ARIA COMPRESSA S.p.A. has a policy of continuous product improvement. We reserve the right to change specifications and product design without notice.
