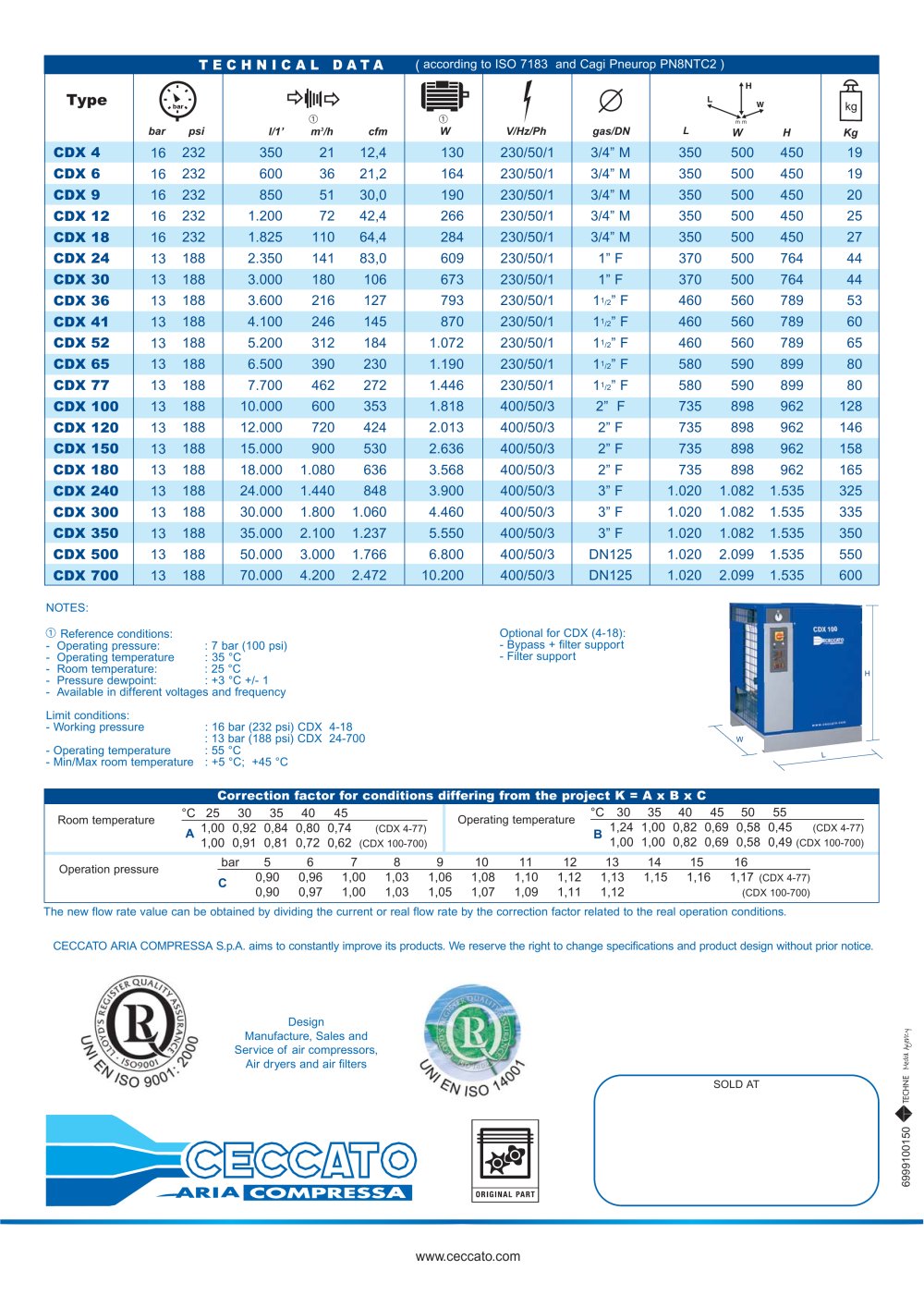

REFRIGERATION AIR DRYERS - Ceccato Aria Compressa - #6

NOTES:

1 Reference conditions:

- Operating pressure: : 7 bar (100 psi)

- Operating temperature : 35 °C

- Room temperature: : 25 °C

- Pressure dewpoint: : +3 °C +/- 1

- Available in different voltages and frequency

Optional for CDX (4-18):

- Bypass + filter support

- Filter support

Limit conditions:

- Working pressure

- Operating temperature

- Min/Max room temperature

: 16 bar (232 psi) CDX 4-18 : 13 bar (188 psi) CDX 24-700 : 55 °C

: +5 °C; +45 °C

°C 30 35 40 45 50 55

°C 25 30 35 40 45

Operating temperature

Room temperature

1,24 1,00 0,82 0,69 0,58 0,45 (CDX 4-77) 1,00 1,00 0,82 0,69 0,58 0,49 (CDX 100-700)

13 14 15 16

1,00 0,92 0,84 0,80 0,74 (CDX 4-77) 1,00 0,91 0,81 0,72 0,62 (CDX 100-700)

bar 5 6 7 8

A

B

9

10

11

12

Operation pressure

0,90 0,90

0,96 0,97

1,00 1,00

1,03 1,03

1,06 1,05

1,08 1,07

1,10 1,09

1,12 1,11

1,13 1,12

1,15 1,16

1,17 (CDX 4-77)

(CDX 100-700)

The new flow rate value can be obtained by dividing the current or real flow rate by the correction factor related to the real operation conditions. CECCATO ARIA COMPRESSA S.p.A. aims to constantly improve its products. We reserve the right to change specifications and product design without prior notice.

Design Manufacture, Sales and Service of air compressors, Air dryers and air filters
