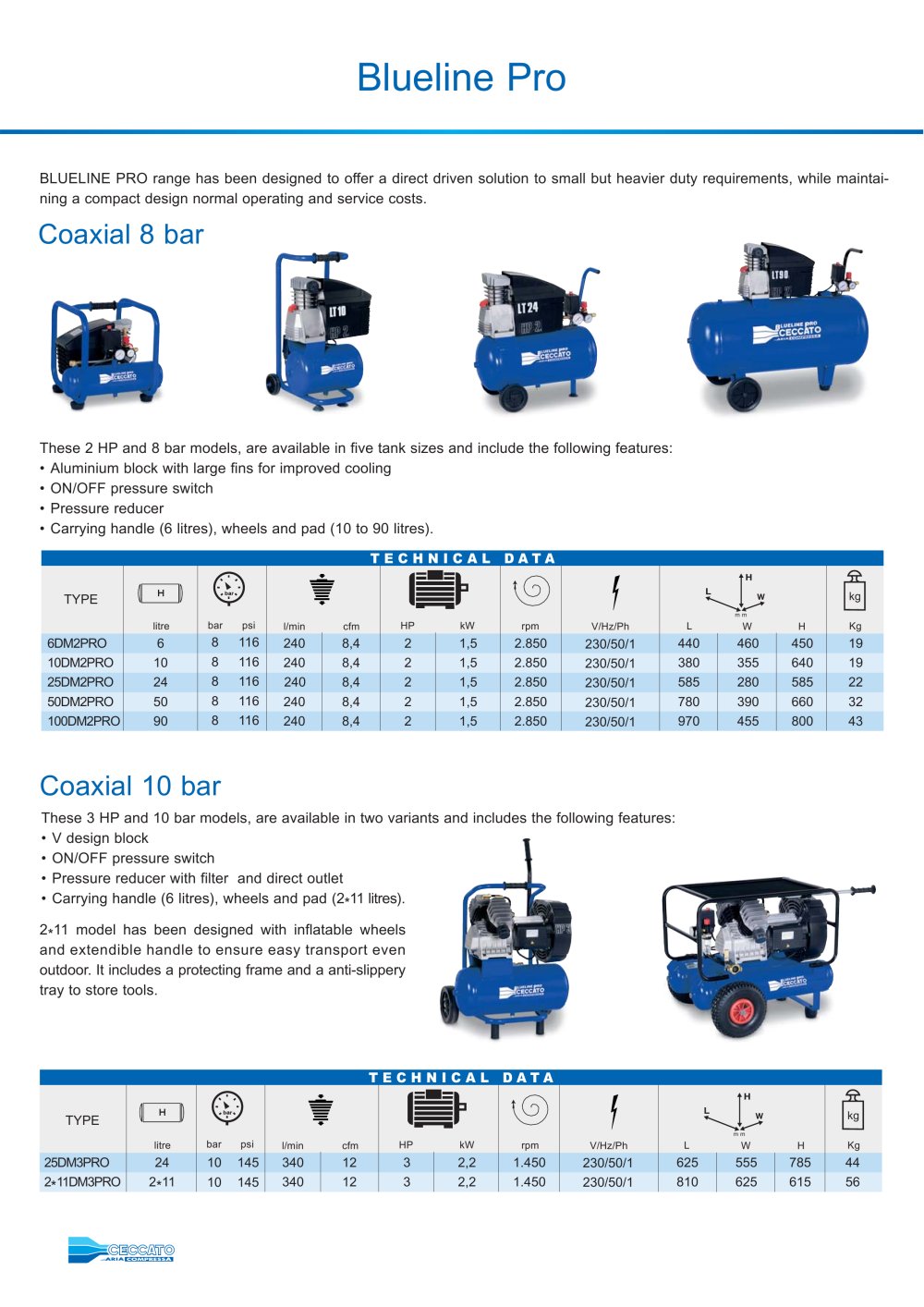

Blueline Pro

BLUELINE PRO range has been designed to offer a direct driven solution to small but heavier duty requirements, while maintaining a compact design normal operating and service costs.

Coaxial 8 bar

These 2 HP and 8 bar models, are available in five tank sizes and include the following features:

• Aluminium block with large fins for improved cooling

• ON/OFF pressure switch

• Pressure reducer

• Carrying handle (6 litres), wheels and pad (10 to 90 litres).

technical data


TYPE	I h 11		l/min cfm		1—f¹		I© rpm	f V/Hz/Ph	L L	\\	H	ft k_n
TYPE	\ll IV litre	bar psi	l/min cfm		HP kW		I© rpm	f V/Hz/Ph	L L	W	H	^K9 Kg
6DM2PRO	6	8 116	240	8,4	2	1,5	2.850	230/50/1	440	460	450	19
10DM2PRO	10	8 116	240	8,4	2	1,5	2.850	230/50/1	380	355	640	19
25DM2PRO	24	8 116	240	8,4	2	1,5	2.850	230/50/1	585	280	585	22
50DM2PRO	50	8 116	240	8,4	2	1,5	2.850	230/50/1	780	390	660	32
100DM2PRO	90	8 116	240	8,4	2	1,5	2.850	230/50/1	970	455	800	43

Coaxial 10 bar

These 3 HP and 10 bar models, are available in two variants and includes the following features:

• V design block

• ON/OFF pressure switch

• Pressure reducer with filter and direct outlet

• Carrying handle (6 litres), wheels and pad (2*11 litres).

2*11 model has been designed with inflatable wheels and extendible handle to ensure easy transport even outdoor. It includes a protecting frame and a anti-slippery tray to store tools.

technical

data

TYPE

II ^H №

|===U

rpm

_kg

Ul IV litre

bar psi

l/min cfm

HP kW

V/Hz/Ph

25DM3PRO

10 145

340

3 2,2

1.450

230/50/1

625

555 785

2*11DM3PRO

2_*11

10 145

340

3 2,2

1.450

230/50/1

810

625 615
