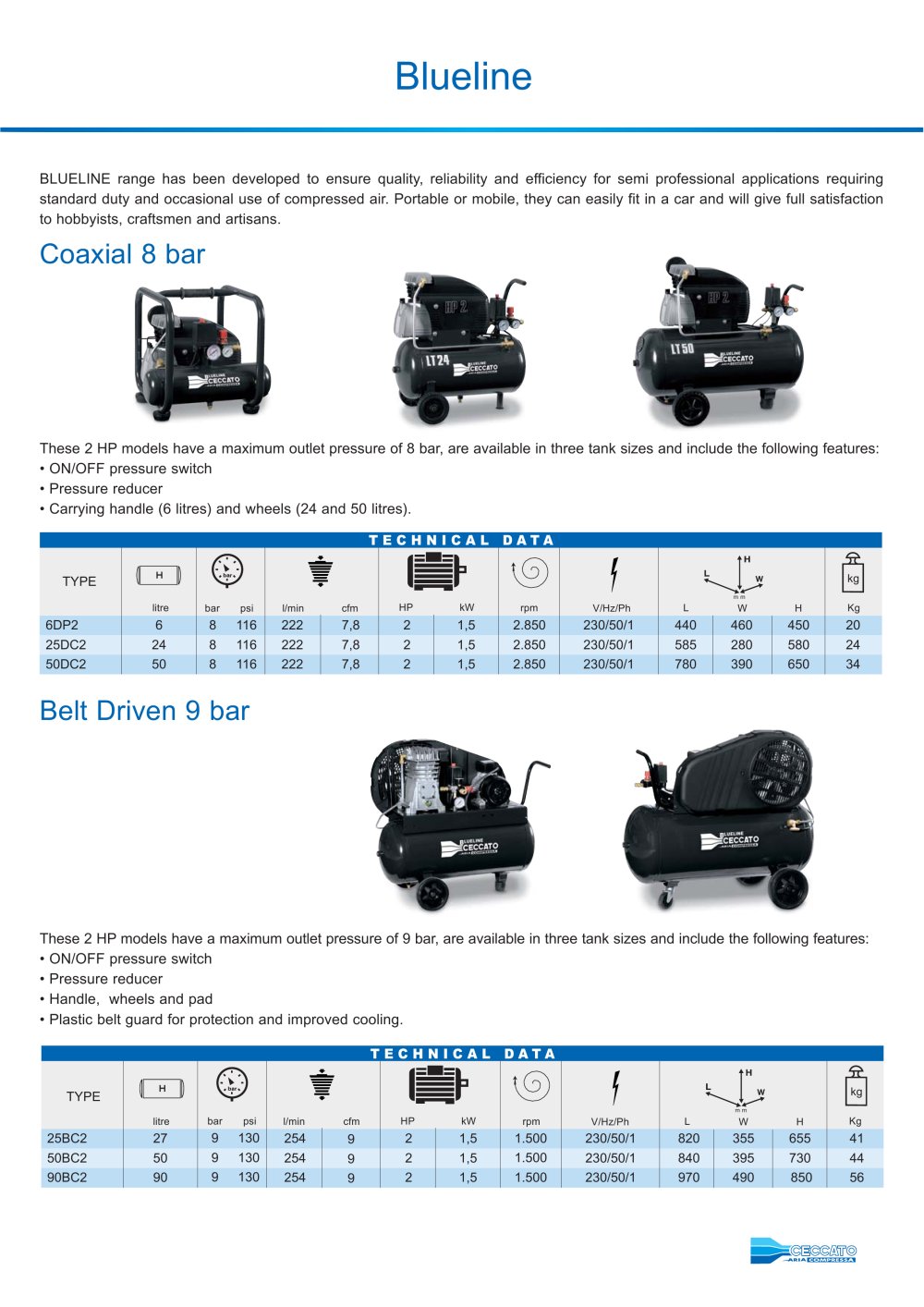

Blueline

BLUELINE range has been developed to ensure quality, reliability and efficiency for semi professional applications requiring standard duty and occasional use of compressed air. Portable or mobile, they can easily fit in a car and will give full satisfaction to hobbyists, craftsmen and artisans.

These 2 HP models have a maximum outlet pressure of 8 bar, are available in three tank sizes and include the following features:

• ON/OFF pressure switch

• Pressure reducer

• Carrying handle (6 litres) and wheels (24 and 50 litres).


techn						1 i c a l	data
TYPE	I » 1		» l/min cfm				1© rpm	f V/Hz/Ph	L L		H	kn
TYPE	litre	bar psi	» l/min cfm		HP kW		1© rpm	f V/Hz/Ph	L L	W	H	^K9 Kg
6DP2	6	8 116	222	7,8	2	1,5	2.850	230/50/1	440	460	450	20
25DC2	24	8 116	222	7,8	2	1,5	2.850	230/50/1	585	280	580	24
50DC2	50	8 116	222	7,8	2	1,5	2.850	230/50/1	780	390	650	34

Belt Driven 9 bar

These 2 HP models have a maximum outlet pressure of 9 bar, are available in three tank sizes and include the following features:

• ON/OFF pressure switch

• Pressure reducer

• Handle, wheels and pad

• Plastic belt guard for protection and improved cooling.

technical data


TYPE	1 h 11		• l/min cfm		*\=\>*		rpm	f V/Hz/Ph	L L	\\	H	kn
TYPE	Ul III litre	bar psi	• l/min cfm		HP kW		rpm	f V/Hz/Ph	L L	W	H	^K9 Kg
25BC2	27	9 130	254	9	2	1,5	1.500	230/50/1	820	355	655	41
50BC2	50	9 130	254	9	2	1,5	1.500	230/50/1	840	395	730	44
90BC2	90	9 130	254	9	2	1,5	1.500	230/50/1	970	490	850	56
