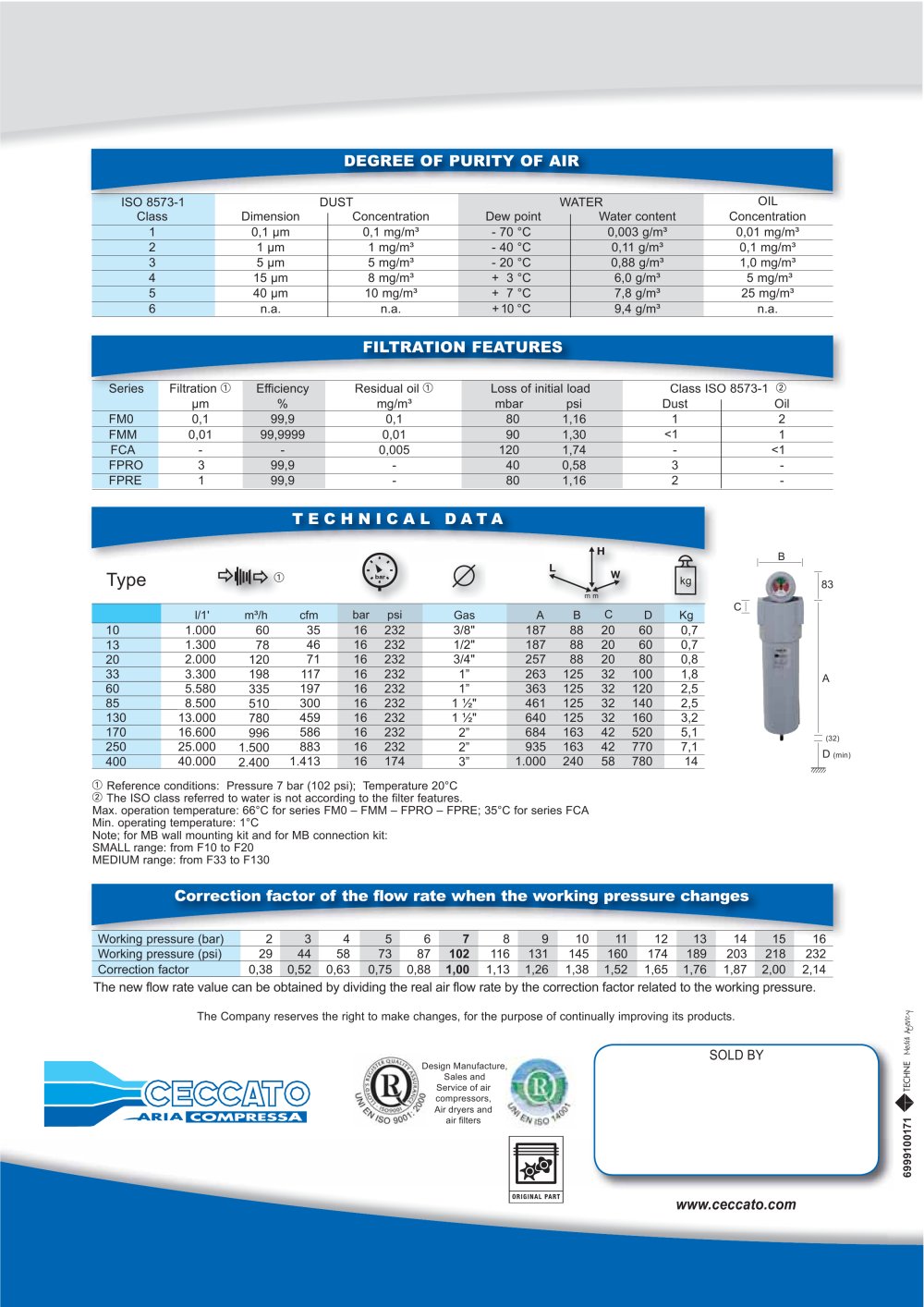

DEGREE OF PURITY OF AIR
ISO 8573-1
DUST
WATER
OIL
Class
Dimension
Concentration
Dew point
Water content
Concentration
1
0,1 |jm
0,1 mg/m3
- 70 °C
0,003 g/m3
0,01 mg/m3
2
1 |jm
1 mg/m3
- 40 °C
0,11 g/m3
0,1 mg/m3
3
5 |jm
5 mg/m3
- 20 °C
0,88 g/m3
1,0 mg/m3
4
15 |jm
8 mg/m3
+ 3 °C
6,0 g/m3
5 mg/m3
5
40 |jm
10 mg/m3
+ 7 °C
7,8 g/m3
25 mg/m3
6
n.a.
n.a.
+ 10 °C
9,4 g/m3
n.a.
FILTRATION FEATURES
Series
Filtration ©
Efficiency
Residual oil ©
Loss of initial load
Class ISO 8573-1
©
%
mg/m3
mbar
psi
Dust
Oil
FM0
0,1
99,9
0,1
80
1,16
1
2
FMM
0,01
99,9999
0,01
90
1,30
<1
1
FCA
-
-
0,005
120
1,74
-
<1
FPRO
3
99,9
-
40
0,58
3
-
FPRE
1
99,9
-
80
1,16
2
-
■=M||l|i:> ©
Type
T 83
rrWh
cfm
bar
psi
Gas
A
B
C
D
Kg
10
1.000
60
35
16
232
3/8"
187
88
20
60
0,7
13
1.300
78
46
16
232
1/2"
187
88
20
60
0,7
20
2.000
120
71
16
232
3/4"
257
88
20
80
0,8
33
3.300
198
117
16
232
1"
263
125
32
100
1,8
60
5.580
335
197
16
232
1"
363
125
32
120
2,5
85
8.500
510
300
16
232
1 /"
461
125
32
140
2,5
130
13.000
780
459
16
232
1 i/"
640
125
32
160
3,2
170
16.600
996
586
16
232
2"
684
163
42
520
5,1
250
25.000
1.500
883
16
232
2"
935
163
42
770
7,1
400
40.000
2.400
1.413
16
174
3"
1.000
240
58
780
14
C
(32)
D (min)
© Reference conditions: Pressure 7 bar (102 psi); Temperature 20°C 2 The ISO class referred to water is not according to the filter features.
Max. operation temperature: 66°C for series FM0 - FMM - FPRO - FPRE; 35°C for series FCA Min. operating temperature: 1°C
Note; for MB wall mounting kit and for MB connection kit: SMALL range: from F10 to F20 MEDIUM range: from F33 to F130
Correction factor of the flow rate when the working pressure changes
Working pressure (bar) 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Working pressure (psi)
29
44
58
73
87
102
116
131
145
160
174
189
203
218
232
Correction factor
0,38
0,52
0,63
0,75
0,88
1,00
1,13
1,26
1,38
1,52
1,65
1,76
1,87
2,00
2,14
The new flow rate value can be obtained by dividing the real air flow rate by the correction factor related to the working pressure.
