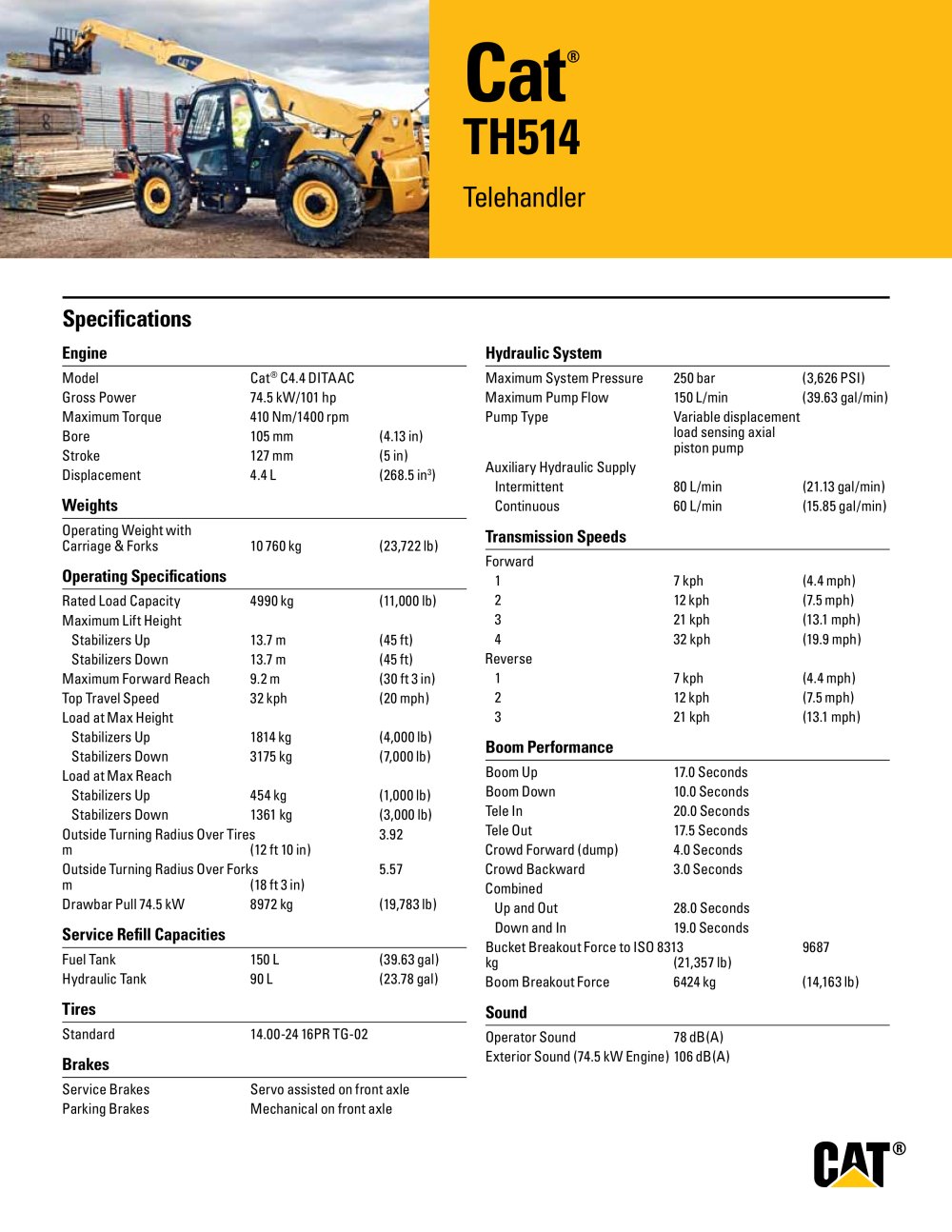

Telehandler - 1

Cat® TH514 Telehandler Specifications Engine Model Cat® C4.4 DITAAC Gross Power 74.5 kW/101 hp Maximum Torque 410 Nm/1400 rpm Bore 105 mm (4.13 in) Stroke 127 mm (5 in) Displacement 4.4 L (268.5 in3) Weights Operating Weight with Carriage & Forks 10 760 kg (23,722 lb) Operating Specifications Rated Load Capacity 4990 kg (11,000 lb) Maximum Lift Height Stabilizers Up 13.7 m (45 ft) Stabilizers Down 13.7 m (45 ft) Maximum Forward Reach 9.2 m (30 ft 3 in) Top Travel Speed 32 kph (20 mph) Load at Max Height Stabilizers Up 1814 kg (4,000 lb) Stabilizers Down 3175 kg (7,000 lb) Load at Max Reach Stabilizers Up 454 kg (1,000 lb) Stabilizers Down 1361 kg (3,000 lb) Outside Turning Radius Over Tires 3.92 m (12 ft 10 in) Outside Turning Radius Over Forks 5.57 m (18 ft 3 in) Drawbar Pull 74.5 kW 8972 kg (19,783 lb) Service Refill Capacities Fuel Tank 150 L (39.63 gal) Hydraulic Tank 90 L (23.78 gal) Tires Standard 14.00-24 16PR TG-02 Brakes Service Brakes Servo assisted on front axle Parking Brakes Mechanical on front axle Hydraulic System Maximum System Pressure 250 bar (3,626 PSI) Maximum Pump Flow 150 L/min (39.63 gal/min) Pump Type Variable displacement load sensing axial piston pump Auxiliary Hydraulic Supply Intermittent 80 L/min (21.13 gal/min) Continuous 60 L/min (15.85 gal/min) Transmission Speeds Forward 1 7 kph (4.4 mph) 2 12 kph (7.5 mph) 3 21 kph (13.1 mph) 4 32 kph (19.9 mph) Reverse 1 7 kph (4.4 mph) 2 12 kph (7.5 mph) 3 21 kph (13.1 mph) Boom Performance Boom Up 17.0 Seconds Boom Down 10.0 Seconds Tele In 20.0 Seconds Tele Out 17.5 Seconds Crowd Forward (dump) 4.0 Seconds Crowd Backward 3.0 Seconds Combined Up and Out 28.0 Seconds Down and In 19.0 Seconds Bucket Breakout Force to ISO 8313 9687 kg (21,357 lb) Boom Breakout Force 6424 kg (14,163 lb) Sound Operator Sound 78 dB(A) Exterior Sound (74.5 kW Engine) 106 dB(A)

Open the catalog to page 1
Telehandler - 2

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com © 2010 Caterpillar All rights reserved. Printed in U.S.A. Materials and specifications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options. CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the POWER EDGE trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission. A C D B...
