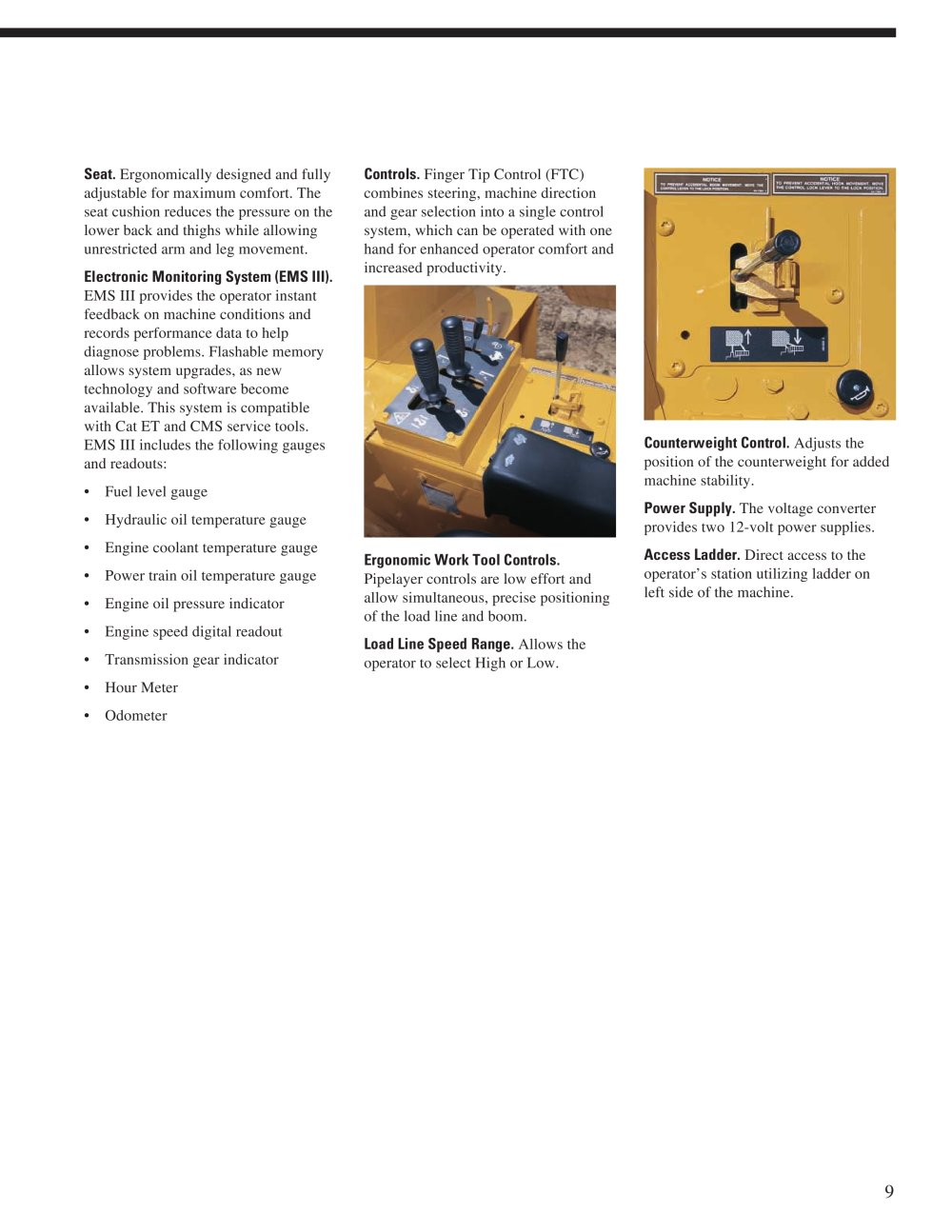

Controls. Finger Tip Control (FTC)combines steering, machine direction and gear selection into a single control system, which can be operated with one hand for enhanced operator comfort and increased productivity. Counterweight Control. Adjusts theposition of the counterweight for added machine stability. Power Supply. The voltage converterprovides two 12-volt power supplies. Access Ladder. Direct access to theoperator’s station utilizing ladder on leftside of the machine. Ergonomic Work Tool Controls. Pipelayer controls are low effort and allow simultaneous, precise positioning of the load line and boom. Load Line Speed Range. Allows theoperator to select High or Low. Seat. Electronic Monitoring System (EMS III). EMS III provides the operator instant feedback on machine conditions and records performance data to help diagnose problems. Flashable memory allows system upgrades, as new technology and software become available. This system is compatible with Cat ET and CMS service tools. EMS III includes the following gauges and readouts:•Fuel level gauge •Hydraulic oil temperature gauge •Engine coolant temperature gauge •Power train oil temperature gauge •Engine oil pressure indicator •Engine speed digital readout •Transmission gear indicator •Hour Meter •Odometer Ergonomically designed and fullyadjustable for maximum comfort. The seat cushion reduces the pressure on the lower back and thighs while allowing unrestricted arm and leg movement.

Pipelayer - 19427 9
