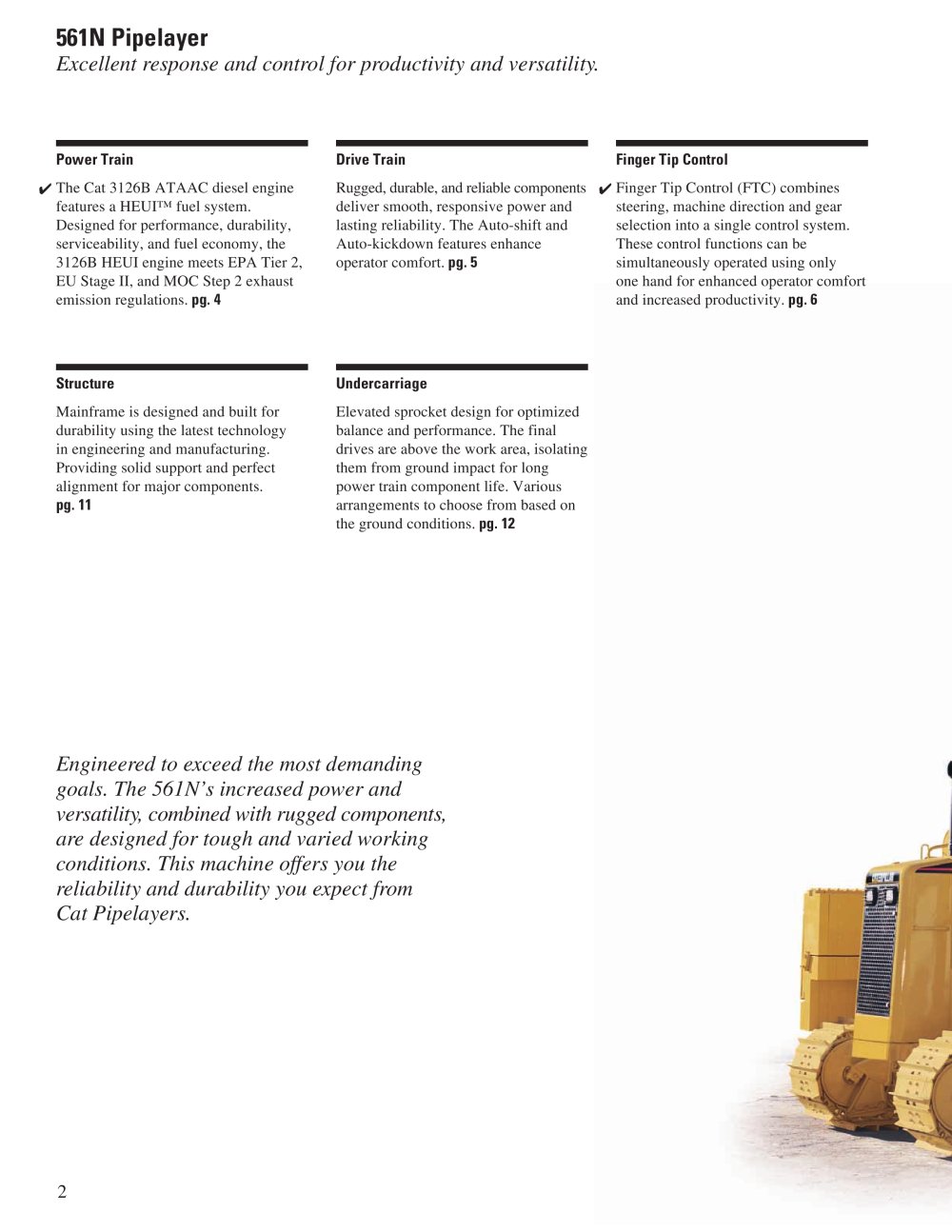

Pipelayer - 19427 561N Pipelayer

Excellent response and control for productivity and versatility. Engineered to exceed the most demandinggoals. The 561N’s increased power and versatility, combined with rugged components, are designed for tough and varied working conditions. This machine offers you the reliability and durability youexpect from Cat Pipelayers.

pg. 4 pg. 6 Power Train Drive Train pg. 5 Finger Tip Control The Cat 3126B ATAAC diesel enginefeatures a HEUI™fuel system. Designed for performance, durability, serviceability, and fuel economy, the 3126B HEUI engine meets EPA Tier 2, EU Stage II, and MOC Step 2 exhaust emission regulations. Rugged, durable, and reliable componentsdeliver smooth, responsive power and lasting reliability. The Auto-shift and Auto-kickdown features enhance operator comfort. Finger Tip Control (FTC) combinessteering, machine direction and gear selection into a single control system. These control functions can be simultaneously operated using only onehand for enhanced operator comfort and increased productivity. pg. 12 pg. 11 Structure Undercarriage Mainframe is designed and built fordurability using the latest technology inengineering and manufacturing. Providing solid support and perfect alignment for major components. Elevated sprocket design for optimizedbalance and performance. The final drives are above the work area, isolating them from ground impact for long power train component life. Various arrangements to choose from based on the ground conditions.

2
