Radio Ready. Multiple Power Ports. Truck Production Management System(TPMS) (Optional). Cab is prewired with powerconverter, speakers, wiring harness, antenna and necessities for add-on communication systems. TPMS providesvaluable payload and cycle time data,which is viewed through Messenger. Now the system provides 2,400 cycles, as opposed to the previous 1,400 cycles,and takes a secondpayload measurementwhen the truck reaches second gear for increased accuracy. Standard LED lamps replace incandescent lamps on the TPMS, extending lamp life by 25 times. Power ports areconveniently located in three locations in the cab: one in the right-hand console, two behind the trainer seat, and one in the dash. Operator Controls. Easy to reach turnsignal, high beam, intermittent windshield wiper and windshield washer controls are located on the left side of the steering column, and are designed for optimum efficiency and comfort. Air Suspension Seat w/Three-PointOperator Restraint. Hoist Lever. Secondary Brake Pedal. Four-position, low effortelectronic hoist control system is positioned next to the gear selector inthe right-hand console. Convenientlylocated on the floor for easy operator control. Steering Column. Transmission Console. Trainer Seat. By moving the trainer seatto the left of the operator, the trainer may enter/exit the vehicle using the same stairway door as the operator. When not in use, the fold-down trainer seat creates a working surface with cup holder. Under seat storage is convenientforstowing a lunch box. Comfortable steeringwheel with tilt and telescoping function provides a comfortable driving position for all operators. Ergonomicallydesigned, fully adjustable air suspension seat with adjustable armrests provides optimal driving comfort. A wide, retractable 3-point seat/shoulder belt provides a secure, comfortable restraint. Ergonomic gearshift lever with backlit gear indicators provides easy operation. The parking brake function is integrated into the gear selector.

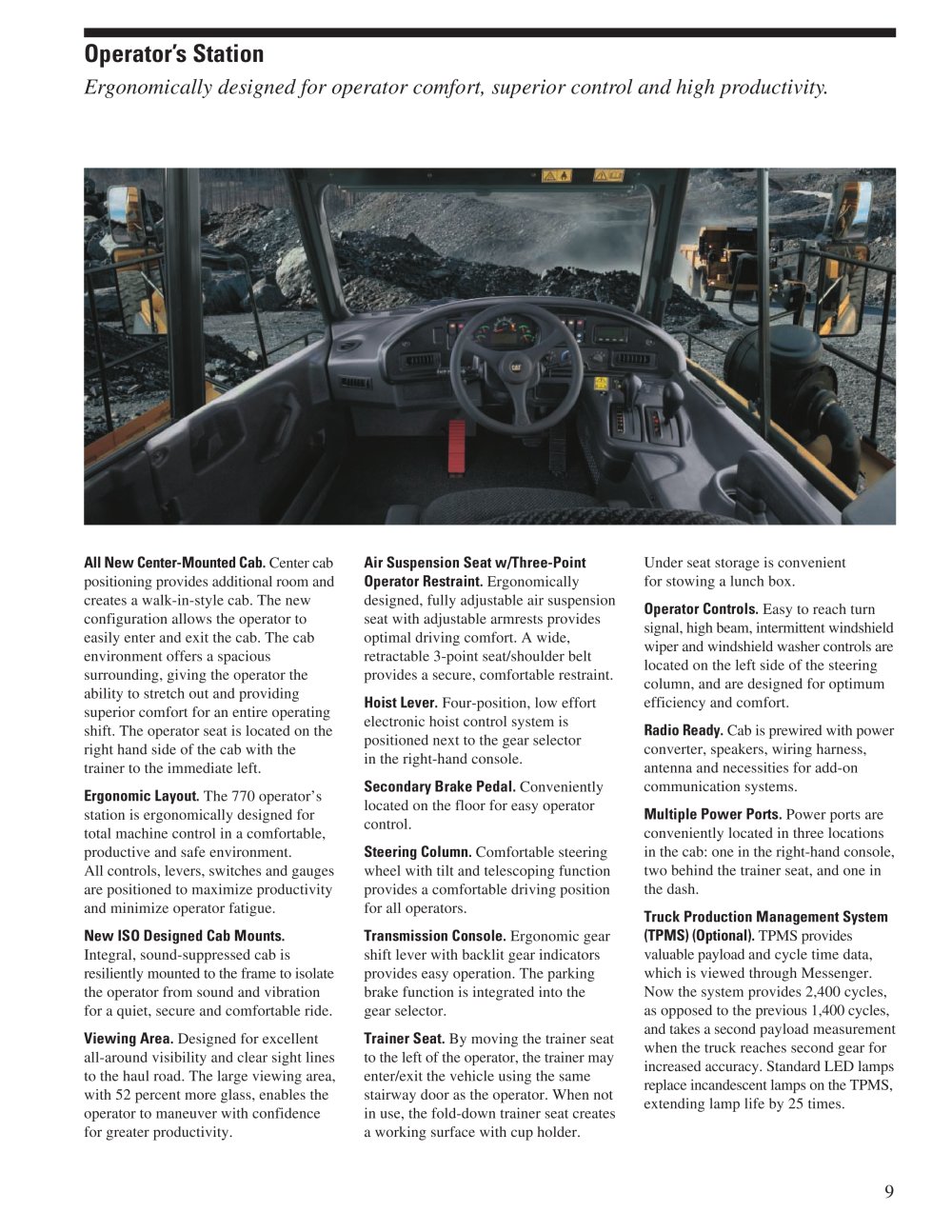

Off-Highway Truck - 19427 Operator’s Station

Ergonomically designed for operator comfort, superior control and high productivity.

New ISO Designed Cab Mounts. Viewing Area. Designed for excellentall-around visibility and clear sight lines to the haul road. The large viewing area, with 52 percent more glass, enables the operator to maneuver with confidence for greater productivity. Integral, sound-suppressed cab is resiliently mounted to the frame to isolate the operator from sound and vibration for a quiet, secure and comfortable ride. Ergonomic Layout. The 770 operator’sstation is ergonomically designed for total machine control in a comfortable, productive and safe environment. Allcontrols, levers, switches and gauges are positioned to maximize productivity and minimize operator fatigue. All New Center-Mounted Cab. Center cabpositioning provides additional room and creates a walk-in-style cab. The new configuration allows the operator to easily enter and exit the cab. The cab environment offers a spacious surrounding, giving the operator the ability to stretch out and providing superior comfort for an entire operating shift. The operator seat is located on the right hand side of the cab with the trainer to the immediate left.

9
