Mini Hydraulic Excavators
8Pages

{{requestButtons}}

Catalog excerpts

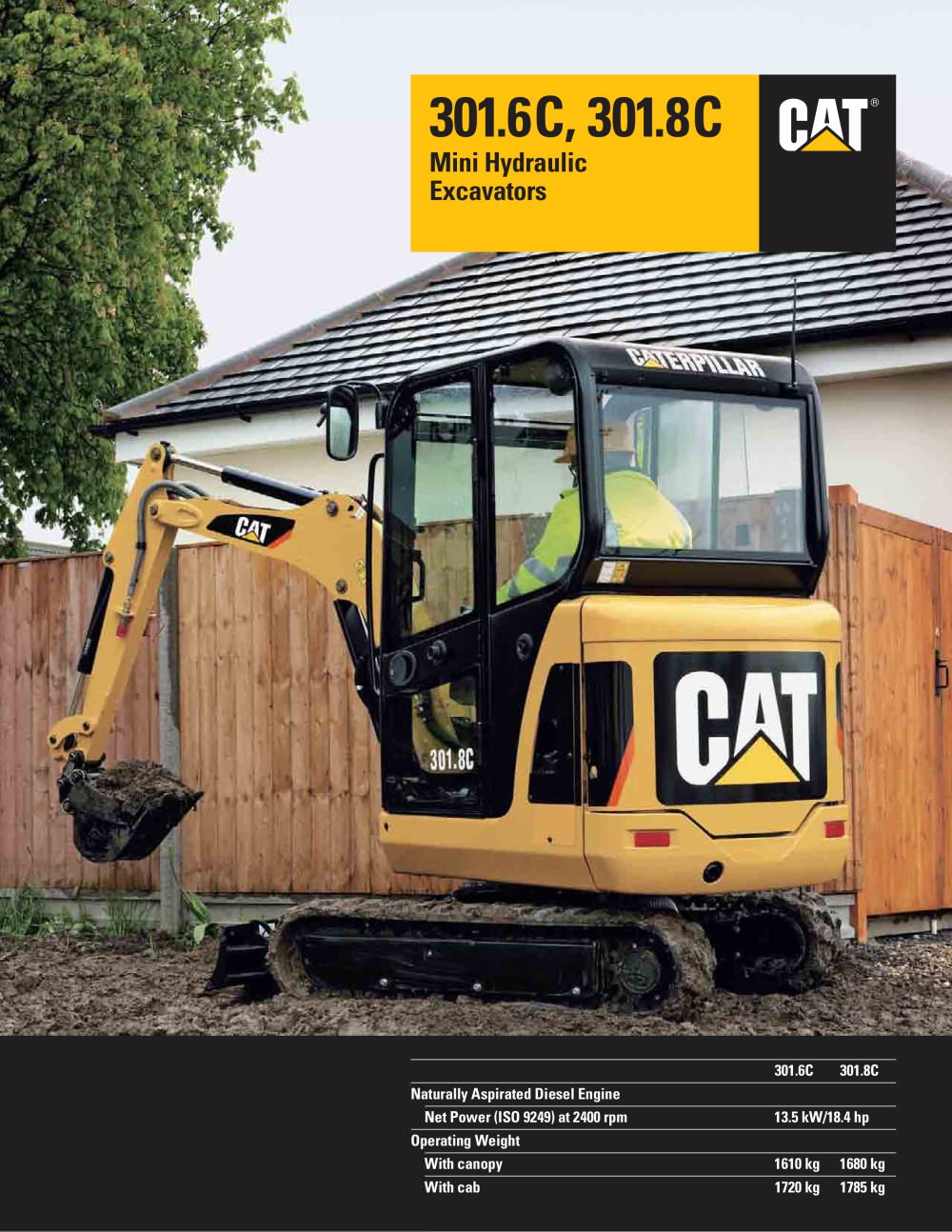

Mini Hydraulic Excavators - 1

301.6C301.8C Naturally Aspirated Diesel Engine Net Power (ISO 9249) at 2400 rpm13.5 kW/18.4 hp Operating Weight With canopy1610 kg1680 kg With cab1720 kg1785 kg >

Open the catalog to page 1
Mini Hydraulic Excavators - 2

The dozer blade float function enables more efficient clean up and landscaping operations. Choice of standard or long stick > enables matching of machine to application. High rotation bucket angle > High digging forces and fast cycle times, combines good spoil retention and flat back trench characteristics. Cab and canopy options Impressive legroom, air circulation and well positioned, low effort controls give even greater operator comfort. are available.The C-Series cab provides a very spacious and comfortable work area with a high feature level as standard. ensure that the Cat C-Series...

Open the catalog to page 2
Mini Hydraulic Excavators - 3

A large rear door The Cat SOՕS points enables excellent access,whilst low maintenance front linkage pivot joints and well placed grease points reduce time taken for daily checks. assist easy oilsampling for preventative maintenance checks. > 500 hour engine oil change period helps to keep operating costs down. > Equipment maintenance andmanagement services Robust, reliable and easily serviced, Caterpillar dealers offer unmatchedcustomer support with excellent equipment management services and fast parts availability, resulting in maximum uptime and minimum repair costs. help...

Open the catalog to page 3
Mini Hydraulic Excavators - 4

The large, spacious cab of the Caterpillar C-Seriesoffers excellent all round visibility and flat glass throughout for easy and inexpensive replacement. Superior operator legroom and door width offer even greater comfort and ease of use. 'Eye line' instrumentation Dozer lever mounted two speed travel control provides easy operation and increased foot room. provides the operator with a clear view of the machines monitoring system, ensuring fuel level, water temperature, and warning lights are easily seen. A service interval indicator is also included. Dozer float enables easy ground...

Open the catalog to page 4
Mini Hydraulic Excavators - 5

A large 'swing out' rear door allows access to major componentsand service points within the engine enclosure. Air filter Engine oil check and fill Engine oil filter element Radiator reservoir tank, check and fill Vertically mounted, spin-on fuel filter/water separator Windshield washer tank A sight gauge for hydraulic oil makes fluid level checksconvenient. SOՕS oil sampling valve allows easy sampling of the hydraulicfluid for preventative maintenance. 500 hour oil and filter change period reduces operating costs and machine down time. Clean sided front linkage with concealed hosing...

Open the catalog to page 5
Mini Hydraulic Excavators - 6

Mitsubishi L3E.Naturally aspirated,watercooled, 4 stroke, 3 cylinder diesel engine.Ratings at 2400 rpm Pumps/Pressures/Circuits Machine swing speed10.5 rpm Pumps: Two piston, one gear-type (max. delivery) Boom swing system with cast swing post Gross power14.0 kW19.0 hp Tandem2 x 19.8 lpm Left (without stop)90 Net power13.5 kW18.4 hp Single 1 x 14.6 lpm Left (with stop)54а Operating pressures Right50 Dimensions Equipment206 bar Bore76 mm Automatic swing brake, spring applied, hydraulic release Travel 206 bar Stroke70 mm Swing174 bar Centralized lubrication Displacement952 cm > 3 Auxiliary...

Open the catalog to page 6
