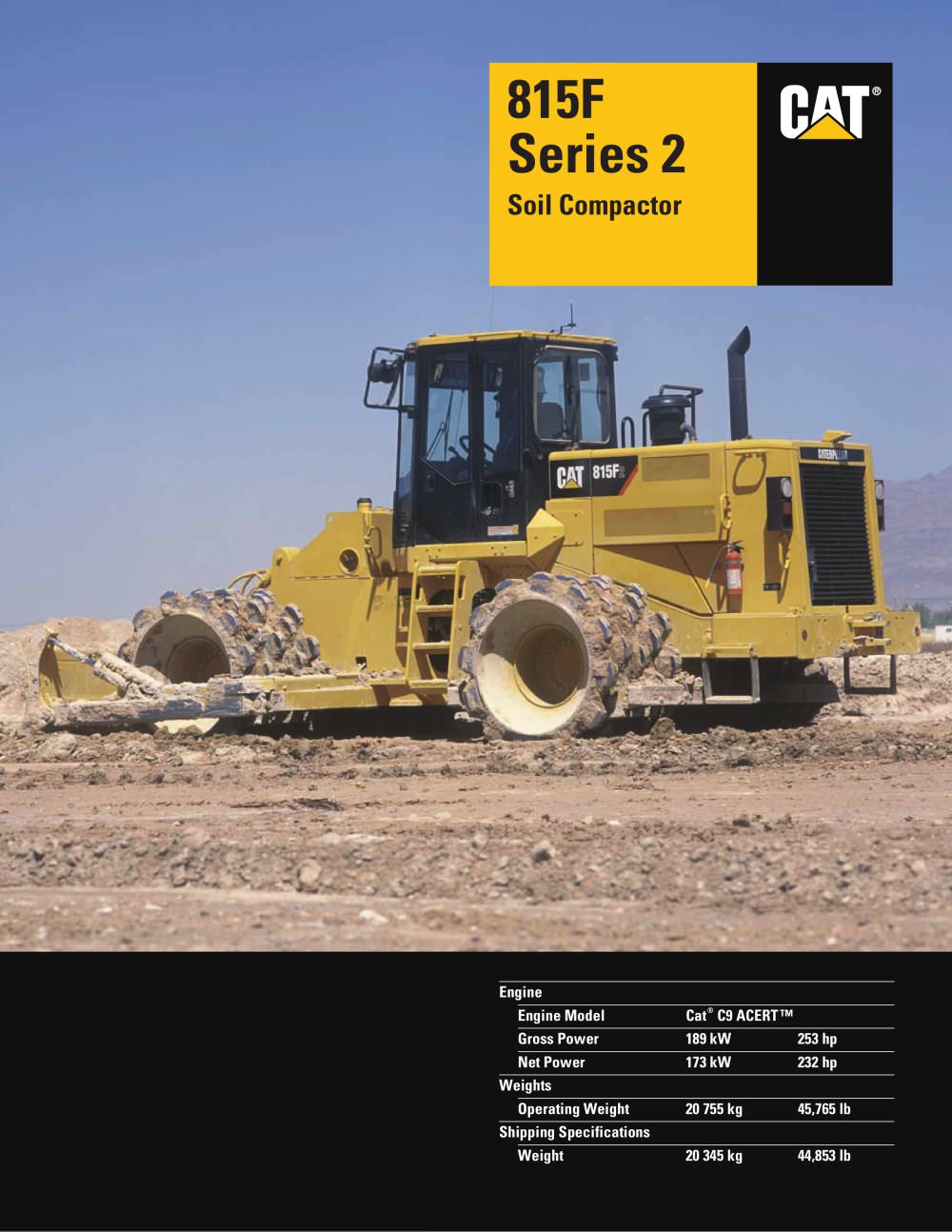

® Engine Engine Model Cat® C9 ACERT™ Gross Power 189 kW 253 hp Net Power 173 kW 232 hp Weights Operating Weight 20 755 kg 45,765 lb Shipping Specifications Weight 20 345 kg 44,853 lb 815F Series 2 Soil Compactor
Open the catalog to page 12 815F Series 2 Soil Compactor The Cat® 815F Series 2 is specifically designed for heavy-duty compaction operations. The new 815F Series 2 Soil Compactor offers greater power, productivity and compaction. Combine this with the finest customer support system in the world – the Caterpillar® dealer network of service and parts – and you get the lowest operating cost with the best up-time in the industry! Complete Customer Support Your Cat dealer is your one safe source for all your equipment needs. They offer a wide range of services that will fit your operation and keep you working longer...
Open the catalog to page 2. New Feature 3 Optional Features Air suspension seat, air conditioning, No-SPIN rear differential, fast fill adapter and cleaner bars are available to enhance the 815F Series 2. A rear view monitor and satellite radio options help make the operator more efficient and comfortable. pg. 11 . Blade Designed for general production dozing, road grading, spreading and clean-up work. pg. 10 Operator Station and Controls Operator comfort and productivity are maximized by an excellent viewing area, careful positioning of levers, switches and gauges, attention to air quality and sound control, as...
Open the catalog to page 3Cat® C9 ACERT Engine. Delivers, at a rated speed of 2,100 rpm, net power of 173 kW (232 hp) and meets the U.S. Environmental Protection Agency Tier 3 emissions regulations and Stage IIIA EU Emissions Directive 97/68/EC. With high horsepower and low displacement, this innovative engine provides excellent fuel economy and durability which can significantly reduce operating costs. Torque Rise. Is increased as a result of the electronically controlled, computeractuated unit injection fuel system that provides high injection pressure and more precisely controlled fuel delivery as the engine lugs...
Open the catalog to page 4Crankshaft. Is steel-forged, carburized and induction-hardened for long-term durability. It is dynamically balanced for smooth operation. The crankshaft is completely regrindable, and the connecting rods can be removed through the tops of the cylinders for easy servicing. Cat Engine Oil. Is formulated to optimize engine life and performance and is strongly recommended for use in Cat diesel engines. Engine oil change interval is 500 hours. Cat Remanufactured Parts. Are available, along with dealer proposed repair options, which increase machine availability and reduce total repair costs. Cat...
Open the catalog to page 5Structure Construction. Combines the use of robotic welding on up to 90 percent of the 815F Series 2 with castings in several areas to increase strength by helping spread the loads and reduce the number of parts. This provides highly consistent welds with deep plate penetration and excellent plate fusion. The benefits are increased durability and fatigue strength. The computer controlled machining ensures the alignment of pin bore, axle pad, cab mount and transmission/engine components. Box Section Engine Frame. Designed to resist twisting and torsional forces, the box section engine end...
Open the catalog to page 6Wheel Design. Gives the operator fourwheel width coverage in just two passes with front and rear wheel tracking that eliminates gaps and overlaps. Chevron Tamping Wheel Tip Design. Is used for equal compaction in forward or reverse. Tips are full perimeter and are replaceable. The tip is welded to a base assembly, which is then welded directly to the drum. There are 12 tips per row and 60 tips per wheel for excellent compaction. Symmetrical Tamping Wheel Tip Pattern. Has a modified chevron tamping wheel tip design to provide greater ground pressure, more compaction, a smooth ride and...
Open the catalog to page 71 Exceptional All-Around Viewing Area. Reduces strain and fatigue, making operators more productive. 2 Caterpillar® Monitoring System. With electronic analog gauges is a highly effective and reliable warning and diagnostic system. As a warning system, it constantly checks machine functions and tells the operator when there is a problem. Easy-to-read gauges display fuel level, temperatures for engine coolant, transmission and hydraulic oil, engine rpm and gear range. Hour meter, odometer and analog tachometer readings are also displayed. As a diagnostic system, it identifies conditions,...
Open the catalog to page 9Blade Package. Consists of the blade, push-arms, trunnion mounting, dozerlength skid plate with replaceable wear plates, reversible cutting edges, selfsharpening end bits, hydraulic lines guard and hydraulic lift cylinders. Operator Controls. The tilt cylinder is an option that gives the 815F Series 2 more versatility when dozing. The controls are seat-mounted and located in a convenient location to the right of the operator. Outside Mounted Straight Blade. With multiple box section construction includes a heat treated moldboard and DH-2™ steel cutting edges and end bits for long life. The...
Open the catalog to page 10Rear Vision Camera. Uses a camera mounted on the radiator guard and a monitor in the cab to allow the operator to see the area directly behind the machine. Air Suspension Seat. Provides added comfort for the operator so productivity stays high. Air Conditioner. Uses blended air and R134a refrigerant for immediate temperature changes. Radios. Several radio options are available factory installed: AM/FM CD or AM/FM CD with satellite radio (a service contract is required from a satellite radio provider). Product Link. Allows the customer and/or dealer to monitor the machine from a remote...
Open the catalog to page 11Engine Access. All metal engine enclosure and hinged access doors allow for easy daily maintenance and inspection. Left Side Service Access. Provides convenient entry to the engine oil filter, grease points (lower), air filter (front), power train oil dipstick (top), coolant sight gauge (top), power train oil fill (below cab), power train oil filter and high speed engine oil fill. Right Side Service Access. Puts the the fuel filter and water separator, fuel primer and engine oil dipstick within easy reach. 500 Hour Oil Change Interval. Increases uptime and production by doubling the time...
