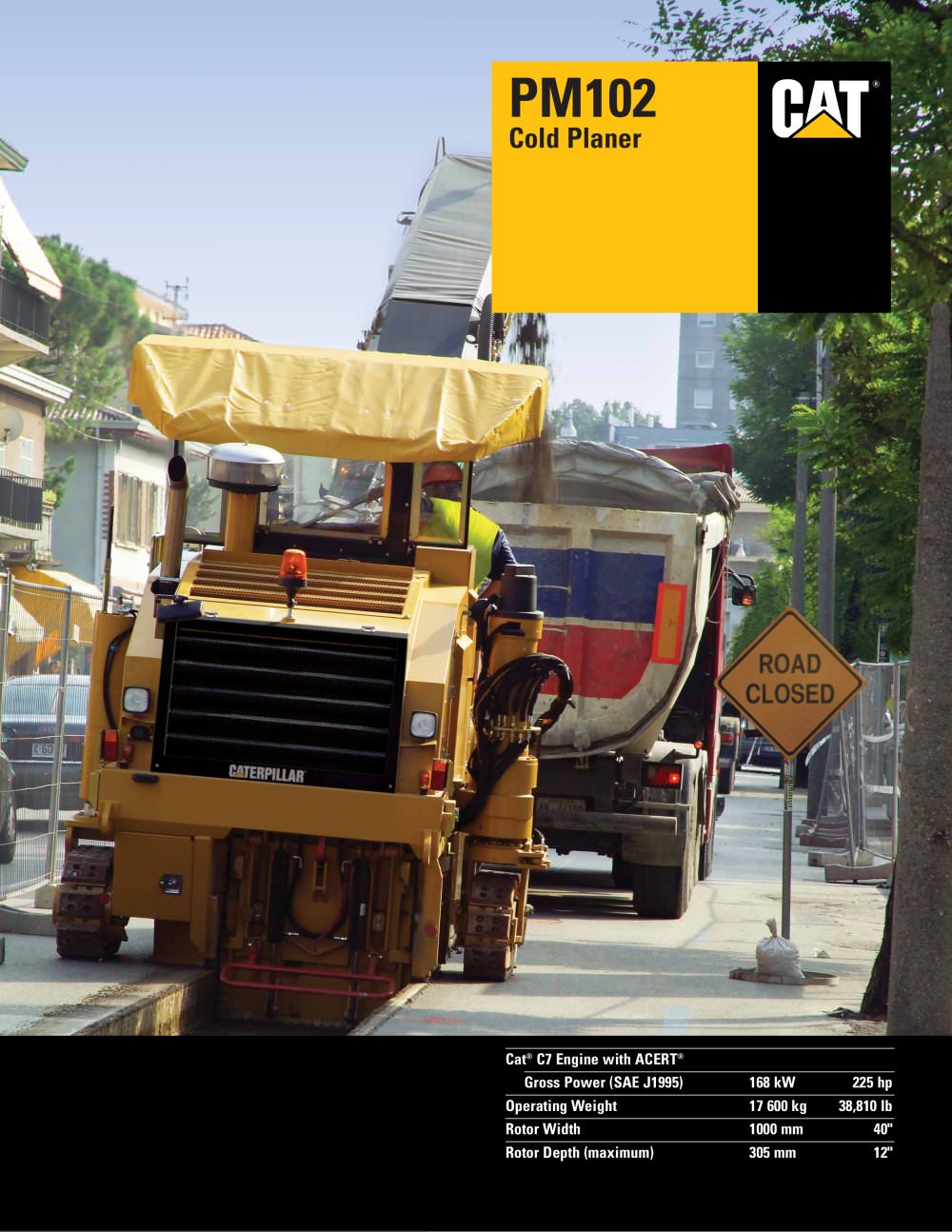

PM102 Cold Planer Cat® C7 Engine with ACERT® Gross Power (SAE J1995) 168 kW 225 hp Operating Weight 17 600 kg 38,810 lb Rotor Width 1000 mm 40" Rotor Depth (maximum) 305 mm 12"
Open the catalog to page 12 PM102 Cold Planer The PM102 combines enhanced production capabilities, optimized performance and simplified service to complete tough milling applications with productive results. C7 Engine with ACERT Technology ACERT Technology works at the point of combustion to optimize engine performance and provide low exhaust emissions. The C7 engine with ACERT Technology provides clean burning power. pg. 4 Rotor Drive A Cat® dry clutch with automatic belt tension adjustment delivers efficient and reliable power to the pavement. The rotor drive consists of field-proven Caterpillar components for...
Open the catalog to page 23 Serviceability The power-assisted engine hood opens wide and provides exceptional access to the engine, hydraulic pumps and daily service points. Hydraulic rotor service door provides convenient access to the rotor for easy cutting tool removal and replacement. The rotor service door also provides easy access to the water spray nozzles for inspection and replacement without the need for tools. pg. 11 Steering Right Rear Track Compact dimension and steering right rear track provides optimum machine handling, facilitating precise operation in confined areas. pg. 10 Automatic Grade and Slope...
Open the catalog to page 34 Engine. US Tier 3 and EU Stage IIIA compliant C7 engine with ACERT Technology combines proven systems with innovative new technologies to precisely deliver fuel to the combustion chamber. It maintains engine performance, efficiency and durability while dramatically reducing emissions. The Cat C7 is a 7.2 L displacement, 6-cylinder, electronically governed engine. Electronic fuel injection is provided through the well-proven Caterpillar hydraulically actuated, electronically controlled unit injection (HEUI) system. A wastegate turbocharger, equipped with a titanium wheel for improved...
Open the catalog to page 45 Propel System Hydrostatic drive with hydraulic flow provided by a variable displacement axial piston pump. Dual displacement drive motors on each track provides balanced tractive effort. Load control system (anti-stall). The electronically controlled system matches propel speed to load on engine for maximum production. Two speed ranges. The machine operates at either maximum torque throughout the entire milling speed range or at a faster travel speed for moving around the job site. Positive traction control (flow divider). Equal hydraulic oil flow to each drive motor increases tractive...
Open the catalog to page 56 Rotor Designed for high production and long service life. Quick release conical tool holders for quick and easy tool replacement. 97 carbide-tipped tools. Tools are mounted in durable three-piece, quick release patented tool holders and arranged in a triple wrap flighting pattern for maximum breakout force. Quick release conical tool holders. A tapered fit maintains tightness in holder base. Fast and effortless tool removal is provided by the quick release conical tool holder tool removing system. Large replaceable carbide faced loading paddles. Loading paddles effectively move milled...
Open the catalog to page 67 Rotor Drive Delivers maximum available horsepower to each cutting tool. Mechanical dry clutch. The rotor drive consists of trapezoid pulleys, molded high-strength belt and a hydrauliccoupling dry clutch. The field-proven drive system delivers reliability and long service life. Drive train protection. A drive train protection device protects rotor drive system, rotor and tools by instantly disengaging rotor drive whenever an abrupt drop in rotor rpm occurs. Two cutting speeds. Upper and lower sheaves are easily interchangeable for maximum torque with the toughest materials and different...
Open the catalog to page 78 Primary Collecting Conveyor The collecting conveyor belt efficiently clears out the cutter box fast. Water spray system for lubrication, cooling and dust reduction. Optimum material sizing and gradation. The hydraulically operated anti-slab device prevents slabbing of the road surface, protects the collecting conveyor and ensures an optimum discharge opening to the rotor chamber. 550 mm (21.6") wide collecting conveyor. Driven by a high torque hydraulic motor for maximum efficiency. An optional 600 mm (23.6") wide collecting conveyor is also available. Variable belt speed. The collecting...
Open the catalog to page 89 Operator’s Station Designed for efficiency, productivity and simple operation. Easy to reach controls minimize operator fatigue. Ergonomic operator’s station. The full width operator’s station provides a view of the front loading conveyor and side plates for precise and rapid positioning. Suspension seat. Durable suspension seat with armrest provides optimum operator comfort. Warning horns and shut down buttons. Located on the operator’s station and at ground level control stations. Hydraulically operated canopy option. Full width canopy with two extending side wings and front windshield...
Open the catalog to page 910 Steering Right Rear Track Optimum machine handling for precise control and production. Precise control. A microprocessor electronically controls the steering angle of the right rear track. The rear track steering angle is automatically adjusted in relation to the position of the front tracks. Enhanced steering ability. The machine’s rear track steering feature facilitates operation in confined areas and ensures a close cut around cul-desacs or turns. The right rear track steers in both positions, whether positioned within or outside the cutting width. Flush Cutting Feature Full flush...
Open the catalog to page 1011 Reliability and Serviceability Reliability and serviceability are integrated into every Caterpillar machine. These important features keep your machine investment profitable. Quick-connect hydraulic test ports. Quick-connect feature simplifies system diagnostics. Ecology drains. Environmental method to drain fluids. They are included on the radiator, engine oil pan, hydraulic and fuel tank. S•O•SSM ports. Scheduled Oil Sample ports allow for simple fluid collection of hydraulic oil. Secure hose routing. Polyethylene routing blocks provide a secure routing to reduce rubbing and increase...
