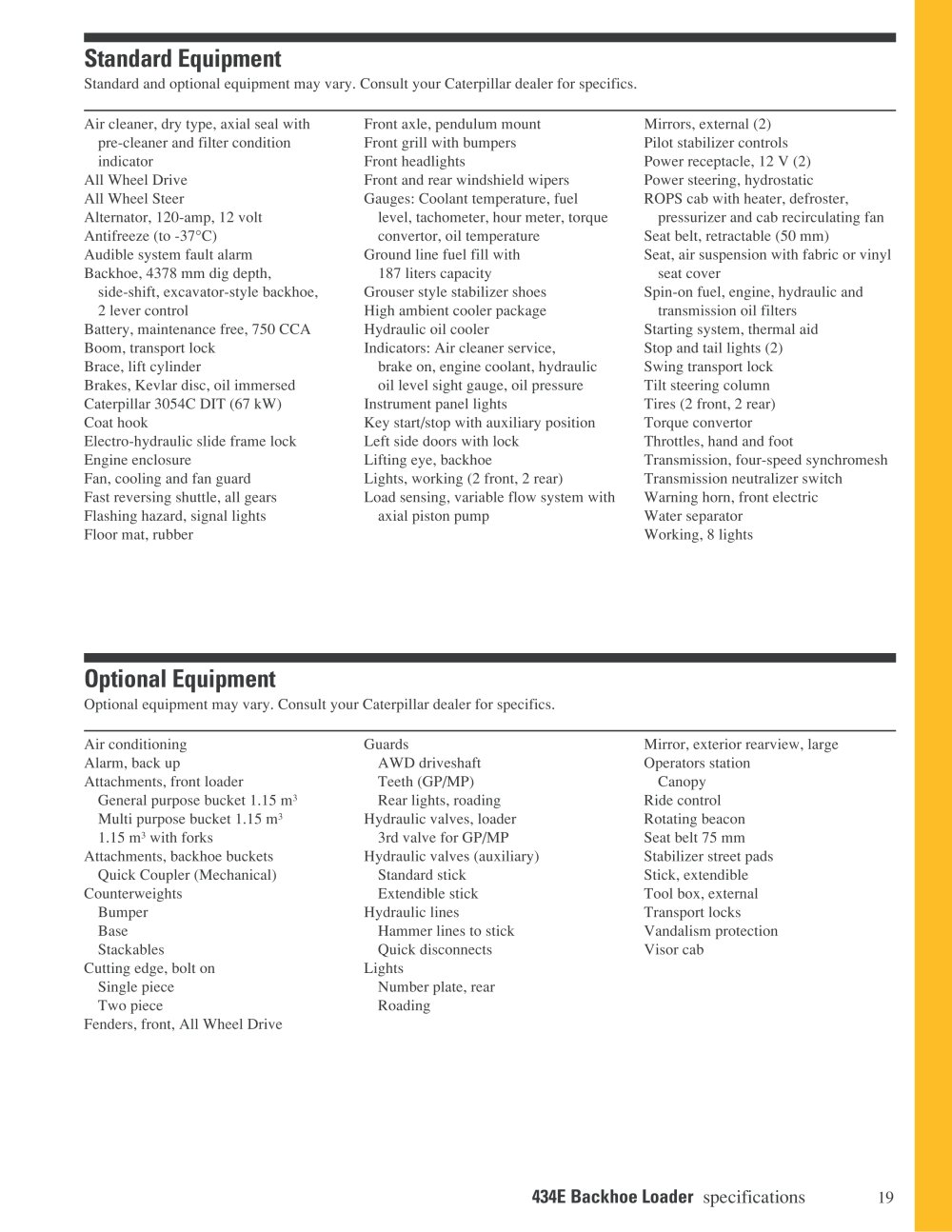

Backhoe Loader - Caterpillar Equipment - #19

Standard and optional equipment may vary. Consult your Caterpillar dealer for specifics.

Air cleaner, dry type, axial seal with pre-cleaner and filter condition indicator

All Wheel Drive All Wheel Steer

Alternator, 120-amp, 12 volt Antifreeze (to -37°C) Audible system fault alarm Backhoe, 4378 mm dig depth,

side-shift, excavator-style backhoe,

2 lever control Battery, maintenance free, 750 CCA Boom, transport lock Brace, lift cylinder Brakes, Kevlar disc, oil immersed Caterpillar 3054C DIT (67 kW) Coat hook

Electro-hydraulic slide frame lock Engine enclosure Fan, cooling and fan guard Fast reversing shuttle, all gears Flashing hazard, signal lights Floor mat, rubber

Front axle, pendulum mount Front grill with bumpers Front headlights

Front and rear windshield wipers Gauges: Coolant temperature, fuel

level, tachometer, hour meter, torque

convertor, oil temperature Ground line fuel fill with

187 liters capacity Grouser style stabilizer shoes High ambient cooler package Hydraulic oil cooler Indicators: Air cleaner service,

brake on, engine coolant, hydraulic

oil level sight gauge, oil pressure Instrument panel lights Key start/stop with auxiliary position Left side doors with lock Lifting eye, backhoe Lights, working (2 front, 2 rear) Load sensing, variable flow system with

axial piston pump

Mirrors, external (2) Pilot stabilizer controls Power receptacle, 12 V (2) Power steering, hydrostatic ROPS cab with heater, defroster,

pressurizer and cab recirculating fan Seat belt, retractable (50 mm) Seat, air suspension with fabric or vinyl

seat cover Spin-on fuel, engine, hydraulic and

transmission oil filters Starting system, thermal aid Stop and tail lights (2) Swing transport lock Tilt steering column Tires (2 front, 2 rear) Torque convertor Throttles, hand and foot Transmission, four-speed synchromesh Transmission neutralizer switch Warning horn, front electric Water separator Working, 8 lights

Optional equipment may vary. Consult your Caterpillar dealer for specifics.

Air conditioning Alarm, back up Attachments, front loader

General purpose bucket 1.15 m³

Multi purpose bucket 1.15 m³

1.15 m³ with forks Attachments, backhoe buckets

Quick Coupler (Mechanical) Counterweights

Bumper

Base

Stackables Cutting edge, bolt on

Single piece

Two piece Fenders, front, All Wheel Drive

Guards

AWD driveshaft

Teeth (GP/MP)

Rear lights, roading Hydraulic valves, loader

3rd valve for GP/MP Hydraulic valves (auxiliary)

Standard stick

Extendible stick Hydraulic lines

Hammer lines to stick

Quick disconnects Lights

Number plate, rear

Roading

Mirror, exterior rearview, large Operators station

Canopy Ride control Rotating beacon Seat belt 75 mm Stabilizer street pads Stick, extendible Tool box, external Transport locks Vandalism protection Visor cab

434E Backhoe Loader specifications 19
