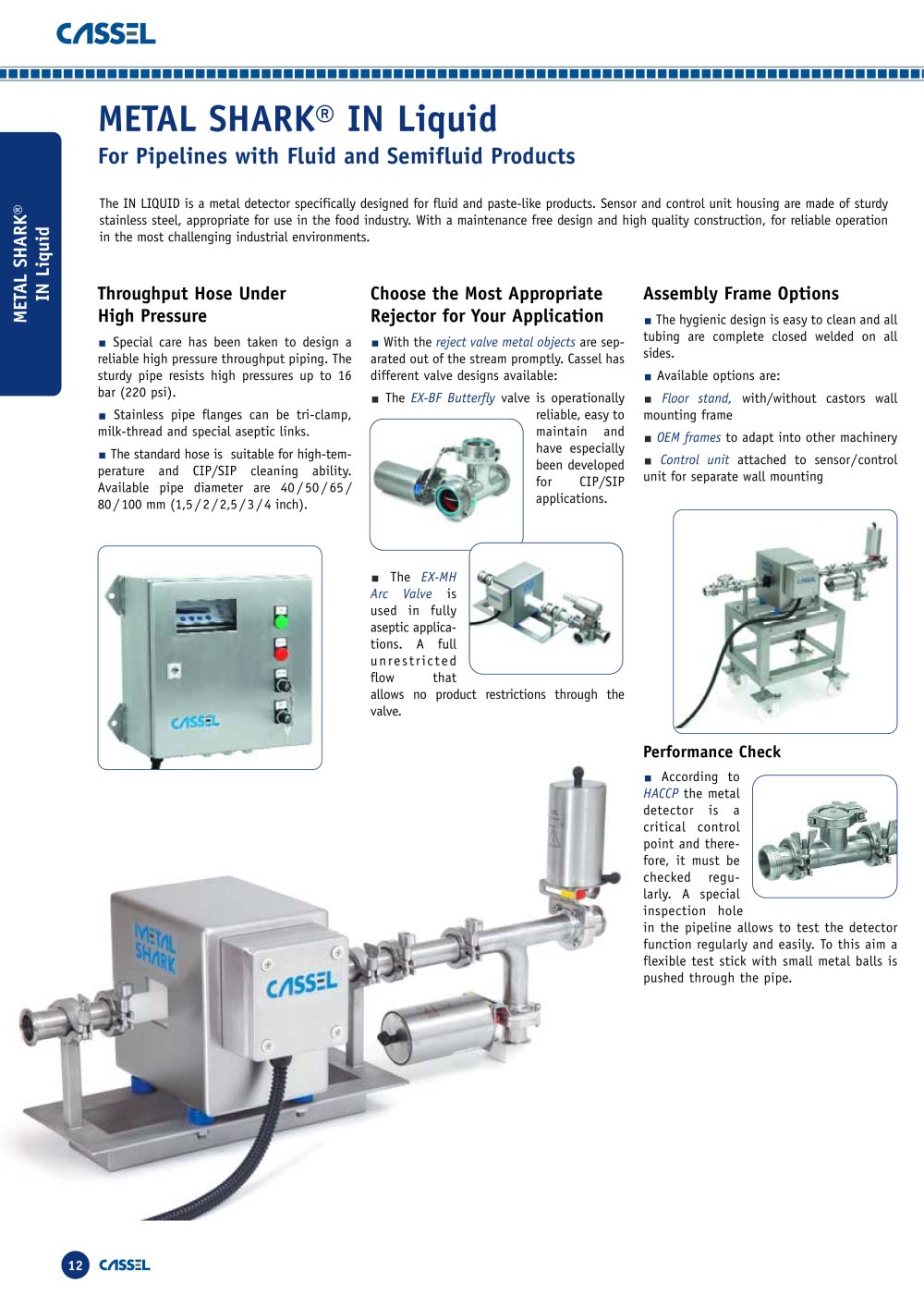

METAL SHARK® IN Liquid
For Pipelines with Fluid and Semifluid Products
The IN LIQUID is a
metal detector specifically designed for fluid and paste-like products. Sensor and control unit housing are made of sturdystainless steel, appropriate for use in the food industry. With a maintenance free design and high quality construction, for reliable operationin the most challenging industrial environments.
Throughput Hose Under High Pressure Choose the Most Appropriate
Rejector for Your Application Assembly Frame Options
METAL SHARK® IN Liquid The hygienic design is easy to clean and alltubing are complete closed welded on all
sides. Available options are: Special care has been taken to design areliable high pressure throughput piping. The
sturdy pipe resists high pressures up to 16
bar (220 psi). Stainless pipe flanges can be tri-clamp,milk-thread and special aseptic links. The standard hose is suitable for high-tem-perature and CIP/SIP cleaning ability.
Available pipe diameter are 40/50/65/
80/100 mm (1,5/2/2,5/3/4 inch). With the reject valve metal objects are sep-arated out of the stream promptly. Cassel has
different valve designs available: The EX-BF Butterfly valve is operationallyreliable, easy to
maintain and
have especially
been developed
for CIP/SIP
applications.The Floor stand, with/without castors wallmounting frame EX-MHArc Valve isused in fully
aseptic applica-
tions. A full
unrestricted
flow that
allows no product restrictions through the
valve. OEM frames to adapt into other machinery Control unit attached to sensor/controlunit for separate wall mounting
Performance Check
According to HACCP the metaldetector is a
critical control
point and there-
fore, it must be
checked regu-
larly. A special
inspection hole
in the pipeline allows to test the
detector
function regularly and easily. To this aim a
flexible test stick with small metal balls is
pushed through the pipe. 12
