BALE CLAMPS

Efficiently and economically handle nearly any type of baled product.

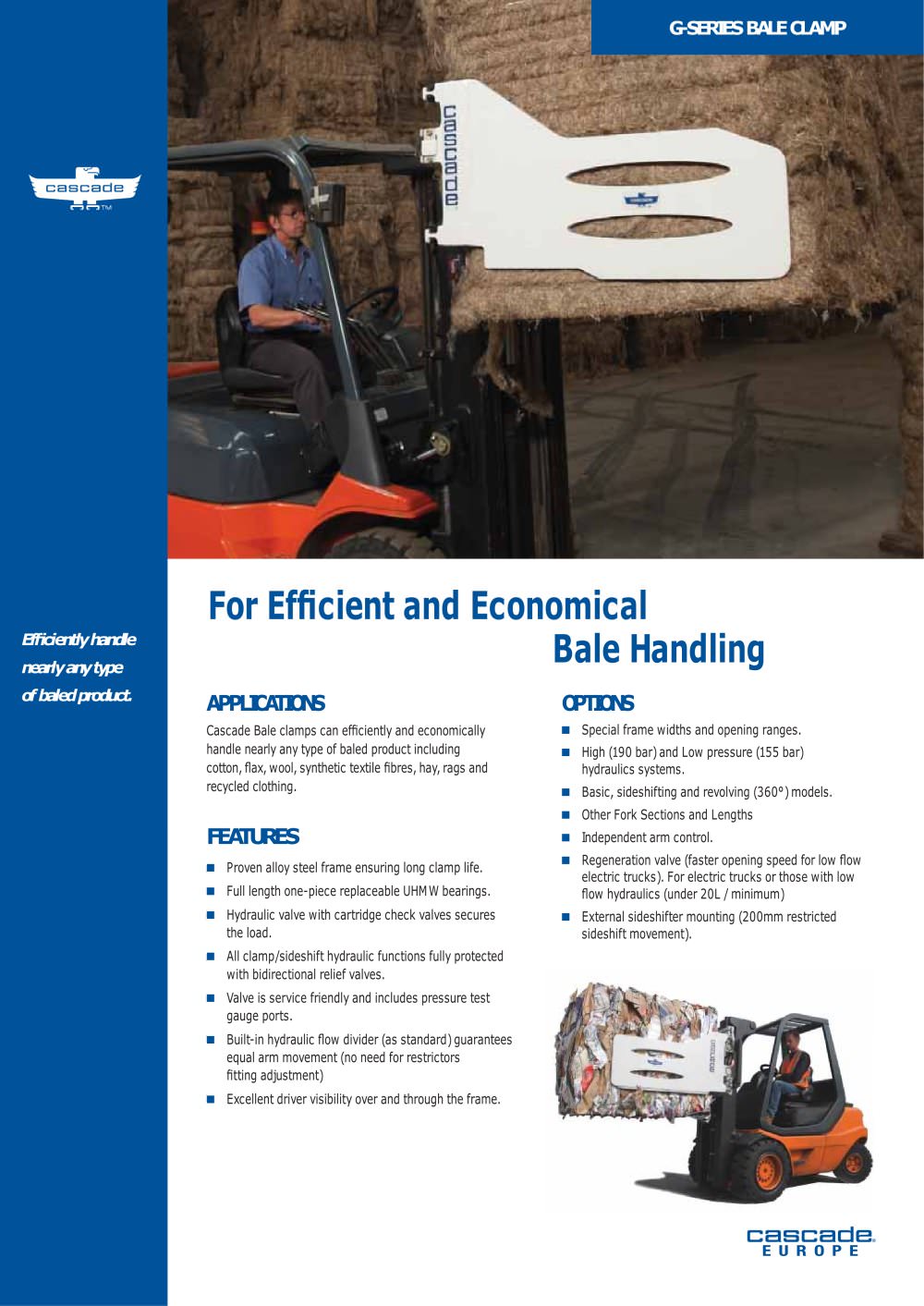

G Series Bale Clamps - 25312 For efficient, economical bale handling.

APPLICATIONS OPTIONS

Palletless Handling of nearly all baled product such as : Cotton, flax, wool, synthetic textile fibres, hay, rags and recycled clothing. The most efficient, safest and economically way of handling single and multiple bales. For all waste recycling products like corrugate and recycled papers, tinned cans and other baled scrap metals we recommend the Cascade Recycling clamp (see separate specification sheets models WCS). For all pulp bale (cellulose) handling we recommend the Cascade pulp bale clamp (see separate specification sheet models PBS)
â–  Special frame widths and opening ranges.
â–  High (190 bar) and Low pressure (155 bar) hydraulics systems available.
â–  Basic,sideshifting and revolving (360°) models.
â–  Variety of arm sizes available (length and height)
â–  Variety of arm ribs and arm coverings available.
â–  Independent arm control.
â–  Regeneration valve (faster opening speed for low flow electric trucks). For electric trucks or those with low flow hydraulics (under 20l/min)

FEATURES

â–  External sideshifting mounting. (200mm restricted sideshift movement)
â–  Alloy steel frame construction with replaceable extruded steel profiles
â–  Valves with left hand clamp porting (right hand is standard).
â–  Full length one-piece replaceable UHMW bearings.
â–  Frame bumper (for cylinder protection).
â–  Protected but accessible valve location behind the frame
â–  Hydraulic valve with cartridge check valves secures the load.
â–  All clamp/sideshift hydraulic functions fully protected with bidirectional relief valves.
â–  Valve is service friendly and includes pressure test gauge ports.
â–  Built-in hydraulic flow divider (as standard) guarantees equal arm movement (no need for restrictors fitting adjustment)
â–  Replaceable wear pads protection under the lower hooks.
â–  Strong & durable Slab type alloy steel arm construction.
â–  Excellent driver visibility over and through the frame.
â–  Modular clamp construction allows easy replacement parts and repairs.
â–  Cascade Clamps are reliable, durable and require low maintenance.
