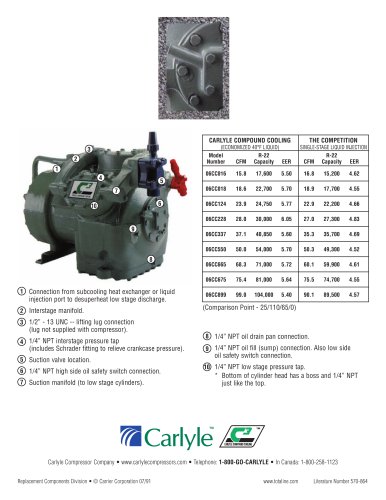

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.95pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:17.00pt "Arial", sans-serif; } .font4 { font:26.00pt "Arial", sans-serif; } .font5 { font:30.00pt "Arial", sans-serif; } .font6 { font:8.00pt "Lucida Sans Unicode", sans-serif; } CARLYLE COMPOUND COOLING (ECONOMIZED 40°F LIQUID) THE COMPETITION SINGLE-STAGE LIQUID INJECTION Model Number CFM R-22 Capacity EER CFM R-22 Capacity EER 06CC016 15.8 17,600 5.50 16.8 15,200 4.62 06CC018 18.6 22,700 5.70 18.9 17,700 4.55 06CC124 23.9 24,750 5.77 22.9 22,200 4.66 06CC228 28.0 30,000 6.05 27.0 27,300 4.83 06CC337 37.1 40,850 5.60 35.3 35,700 4.69 06CC550 50.0 54,000 5.70 50.3 49,300 4.52 06CC665 68.3 71,000 5.72 60.1 59,900 4.61 06CC675 75.4 81,000 5.64 75.5 74,700 4.55 06CC899 99.0 104,000 5.40 90.1 89,500 4.57 © Connection from subcooling heat exchanger or liquid injection port to desuperheat low stage discharge. (2) Interstage manifold. @ 1/2" - 13 UNC -- lifting lug connection (lug not supplied with compressor). @ 1/4" NPT interstage pressure tap (includes Schrader fitting to relieve crankcase pressure). (D Suction valve location. (6) 1/4" NPT high side oil safety switch connection. ® Suction manifold (to low stage cylinders). (Comparison Point - 25/110/65/0) ® 1/4" NPT oil drain pan connection. @ 1/4" NPT oil fill (sump) connection. Also low side oil safety switch connection. (1§)1/4" NPT low stage pressure tap. * Bottom of cylinder head has a boss and 1/4" NPT just like the top. I I /C*77 Carlyle Compressor Company ٕ www.carlylecompressors.com Tթlphone: 1-800-GO-CARLYLE In Canada: 1-800-258-1123 Replacement Components Division 镕 © Carrier Corporation 07/91 www.totaline.com Literature Number 570-864
