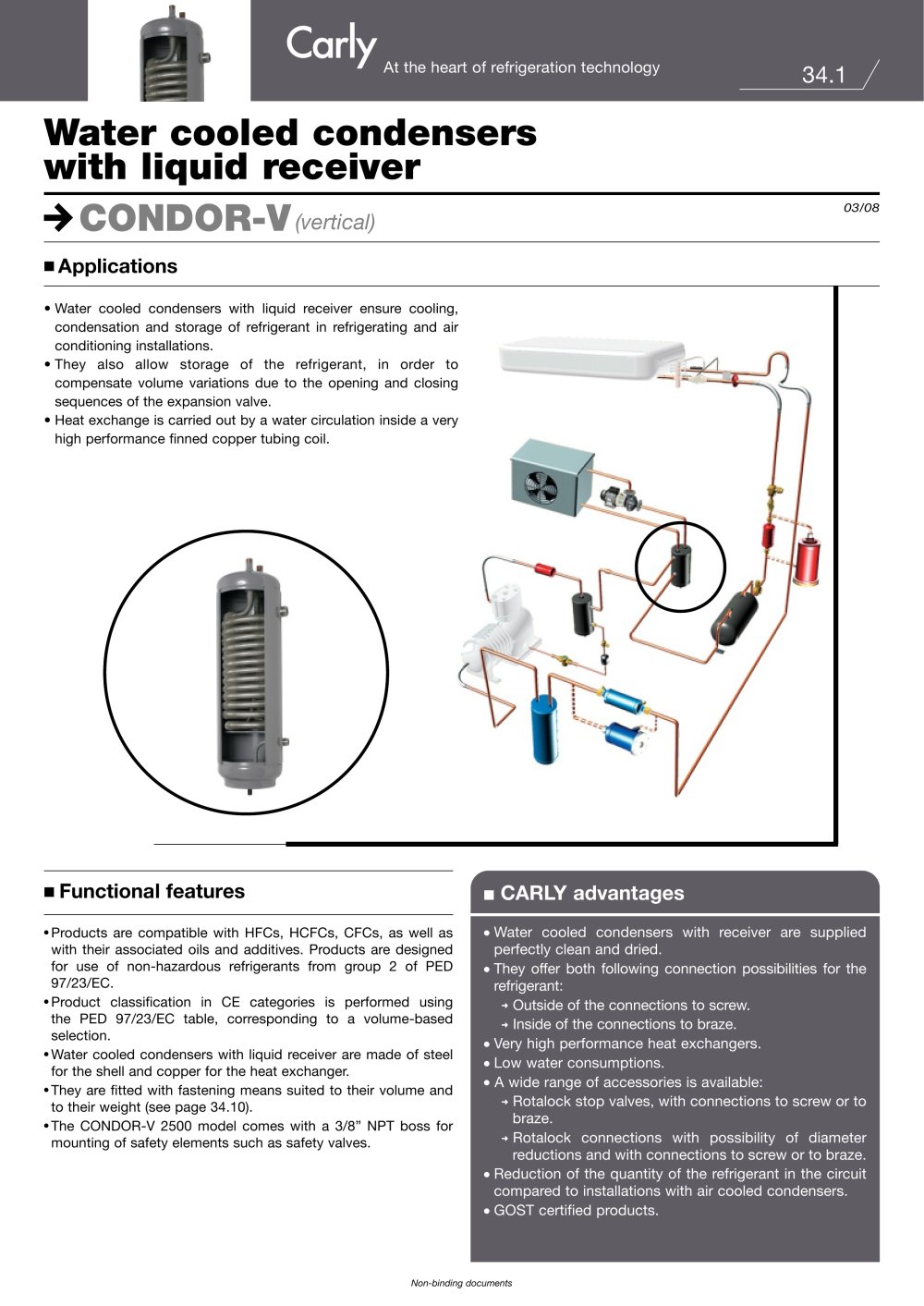

34.1 n Functional features n CARLY advantages Water cooled condensers with liquid receiver CONDOR-V(vertical) n Applications • Water cooled condensers with liquid receiver ensure cooling, condensation and storage of refrigerant in refrigerating and air conditioning installations. • They also allow storage of the refrigerant, in order to compensate volume variations due to the opening and closing sequences of the expansion valve. • Heat exchange is carried out by a water circulation inside a very high performance finned copper tubing coil. C o Products are compatible with HFCs, HCFCs, CFCs, as well as with their associated oils and additives. Products are designed for use of non-hazardous refrigerants from group 2 of PED 97/23/EC. o Product classification in CE categories is performed using the PED 97/23/EC table, corresponding to a volume-based selection. oWater cooled condensers with liquid receiver are made of steel for the shell and copper for the heat exchanger. o They are fitted with fastening means suited to their volume and to their weight (see page 34.10). o The CONDOR-V 2500 model comes with a 3/8” NPT boss for mounting of safety elements such as safety valves. o Water cooled condensers with receiver are supplied perfectly clean and dried. o They offer both following connection possibilities for the refrigerant: Outside of the connections to screw. Inside of the connections to braze. o Very high performance heat exchangers. o Low water consumptions. o A wide range of accessories is available: Rotalock stop valves, with connections to screw or to braze. Rotalock connections with possibility of diameter reductions and with connections to screw or to braze. o Reduction of the quantity of the refrigerant in the circuit compared to installations with air cooled condensers. o GOST certified products. At the heart of refrigeration technology 03/08 Non-binding documents
