M18 and M30

Ultrasonic UA18CLD05NPM1TR - 6077 Installation Hints

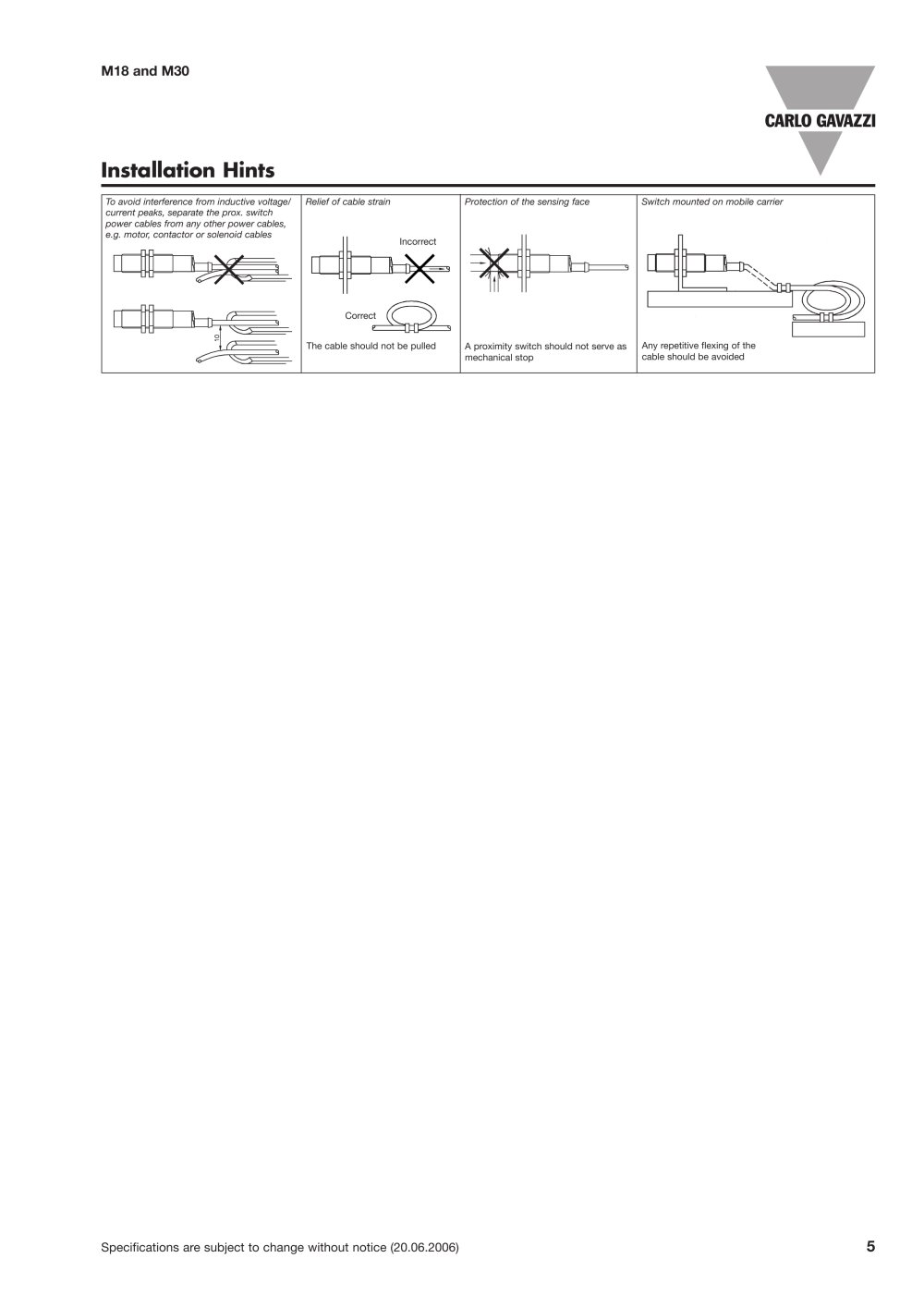

Relief of cable strainProtection of the sensing face Switch mounted on mobile carrierTo avoid interference from inductive voltage/current peaks, separate the prox. switch power cables from any other power cables,e.g. motor, contactor or solenoid cables IncorrectCorrectThe cable should not be pulledA proximity switch should not serve asmechanical stopAny repetitive flexing of thecable should be avoided

Specifications are subject to change without notice (20.06.2006)
