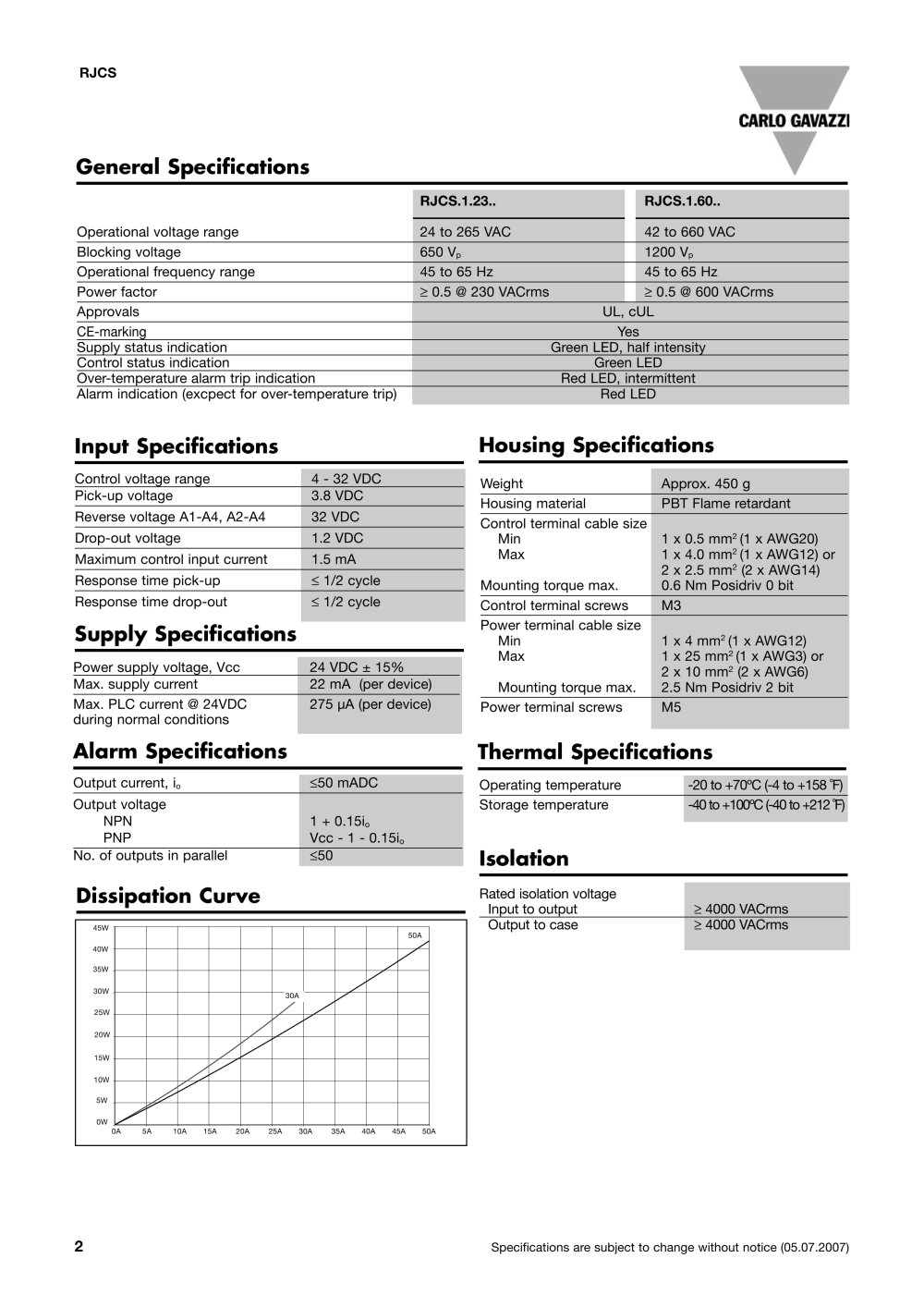

Solid State Relays RJCS1A23D30EPNO - 6077 General Specifications

RJCS.1.23..RJCS.1.60.. Operational voltage range24 to 265 VAC42 to 660 VAC Blocking voltage650 V
p 1200 V
p Operational frequency range45 to 65 Hz45 to 65 Hz Power factor ≥ 0.5 @ 230 VACrms ≥ 0.5 @ 600 VACrms ApprovalsUL, cUL CE-marking Yes Supply status indication Green LED, half intensity Control status indicationGreen LED Over-temperature alarm trip indicationRed LED, intermittentAlarm indication (excpect for over-temperature trip)Red LED

Input Specifications Housing Specifications

Control voltage range4 - 32 VDC WeightApprox. 450 g Pick-up voltage3.8 VDC Housing materialPBT Flame retardantControl terminal cable size Min 1 x 0.5 mm Reverse voltage A1-A4, A2-A432 VDC Drop-out voltage1.2 VDC
2 (1 x AWG20)Max 1 x 4.0 mm Maximum control input current 1.5 mA
2 (1 x AWG12) or2 x 2.5 mm
2 (2 x AWG14) Response time pick-up ≤ 1/2 cycleResponse time drop-out Mounting torque max.0.6 Nm Posidriv 0 bit ≤ 1/2 cycle Control terminal screwsM3Power terminal cable size Min 1 x 4 mm

Supply Specifications

2 (1 x AWG12)Max 1 x 25 mm
2 (1 x AWG3) or2 x 10 mm Power supply voltage, Vcc24 VDC ±15%
2 (2 x AWG6) Max. supply current22 mA (per device)Max. PLC current @ 24VDC275 µA (per device)during normal conditions Mounting torque max.2.5 Nm Posidriv 2 bitPower terminal screwsM5

Alarm Specifications Thermal Specifications

Output current, i
o ≤ 50 mADCOutput voltage NPN 1 + 0.15i Operating temperature-20 to +70ºC (-4 to +158 ËšF)Storage temperature-40 to +100ºC (-40 to +212 ËšF)
o PNP Vcc - 1 - 0.15i
o No. of outputs in parallel ≤ 50

Isolation Dissipation Curve

Rated isolation voltage Input to output ≥ 4000 VACrmsOutput to case
45W 50A ≥ 4000 VACrms
40W 35W 30W 30A 25W 20W 15W 10W 5W 0W 0A 5A 10A 15A 20A 25A 30A 35A 40A 45A 50A

2

Specifications are subject to change without notice (05.07.2007)
