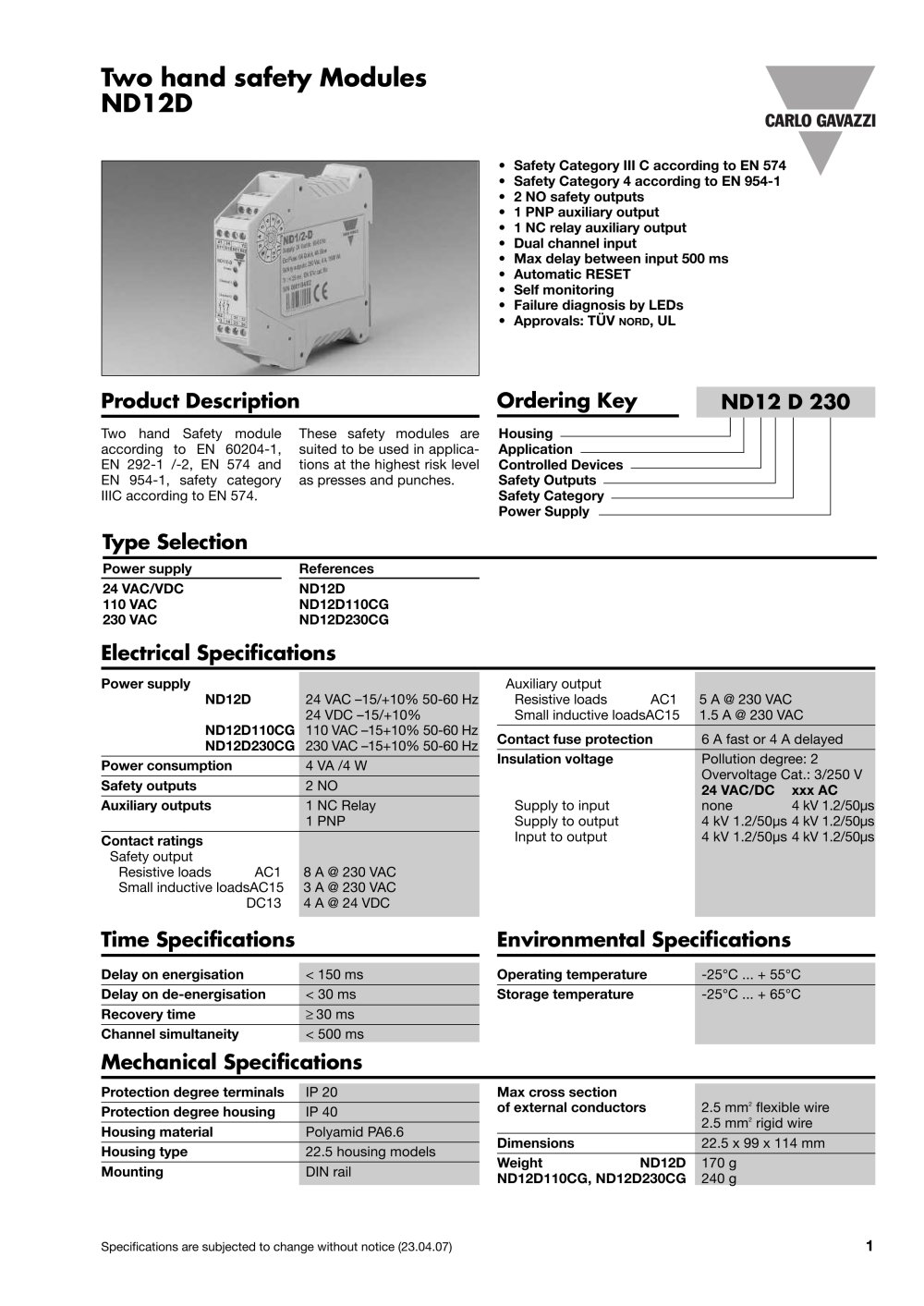

Two hand safety Modules ND12D

CARLO GAVAZZI

Safety Category III C according to EN 574

Safety Category 4 according to EN 954-1

2 NO safety outputs

1 PNP auxiliary output

1 NC relay auxiliary output

Dual channel input

Max delay between input 500 ms

Automatic RESET

Self monitoring

Failure diagnosis by LEDs

Approvals: TÙV nord,UL

Product Description

Ordering Key

ND12 D 230

Two hand Safety module according to EN 60204-1, EN 292-1 /-2, EN 574 and EN 954-1, safety category IIIC according to EN 574.

These safety modules are suited to be used in applications at the highest risk level as presses and punches.

Housing -

Application -

Controlled Devices

Safety Outputs-

Safety Category — Power Supply -

Type Selection

Power supply

References

24 VAC/VDC 110 VAC 230 VAC

ND12D

ND12D110CG

ND12D230CG

Electrical Specifications


Power supply ND12D ND12D110CG ND12D230CG	24 VAC -15/+10% 50-60 Hz 24 VDC -15/+10% 110 VAC -15+10% 50-60 Hz 230 VAC -15+10% 50-60 Hz	Auxiliary output Resistive loads AC1 Small inductive loadsAC15	5 A @ 230 VAC 1.5 A @ 230 VAC
Power supply ND12D ND12D110CG ND12D230CG		Contact fuse protection	6 A fast or 4 A delayed
Power consumption	4 VA /4 W	Insulation voltage Supply to input Supply to output Input to output	Pollution degree: 2 Overvoltage Cat.: 3/250 V 24 VAC/DC xxx AC none 4 kV 1.2/50us 4 kV 1.2/50us 4 kV 1.2/50us 4 kV 1.2/50us 4 kV 1.2/50us
Safety outputs	2NO
Auxiliary outputs	1 NC Relay 1 PNP
Contact ratings Safety output Resistive loads AC1 Small inductive loadsAC15 DC13	8 A @ 230 VAC 3 A @ 230 VAC 4 A @ 24 VDC

Time Specifications Environmental Specifications


Delay on energisation	< 150 ms	Operating temperature	-25°C ... + 55°C
Delay on de-energisation	< 30 ms	Storage temperature	-25°C ... + 65°C
Recovery time	> 30 ms
Channel simultaneity	< 500 ms

Mechanical Specifications

Protection degree terminals

IP 20

Max cross section of external conductors


	Protection degree housing	IP 40
	Housing material	Polyamid PA6.6
	Housing type	22.5 housing models
	Mounting	DIN rail

2.5 mm² flexible wire 2.5 mm² rigid wire

Dimensions

22.5 x 99 x 114 mm

Weight ND12D 170 g

ND12D110CG, ND12D230CG 240 g

Specifications are subjected to change without notice (23.04.07)
