ND12D

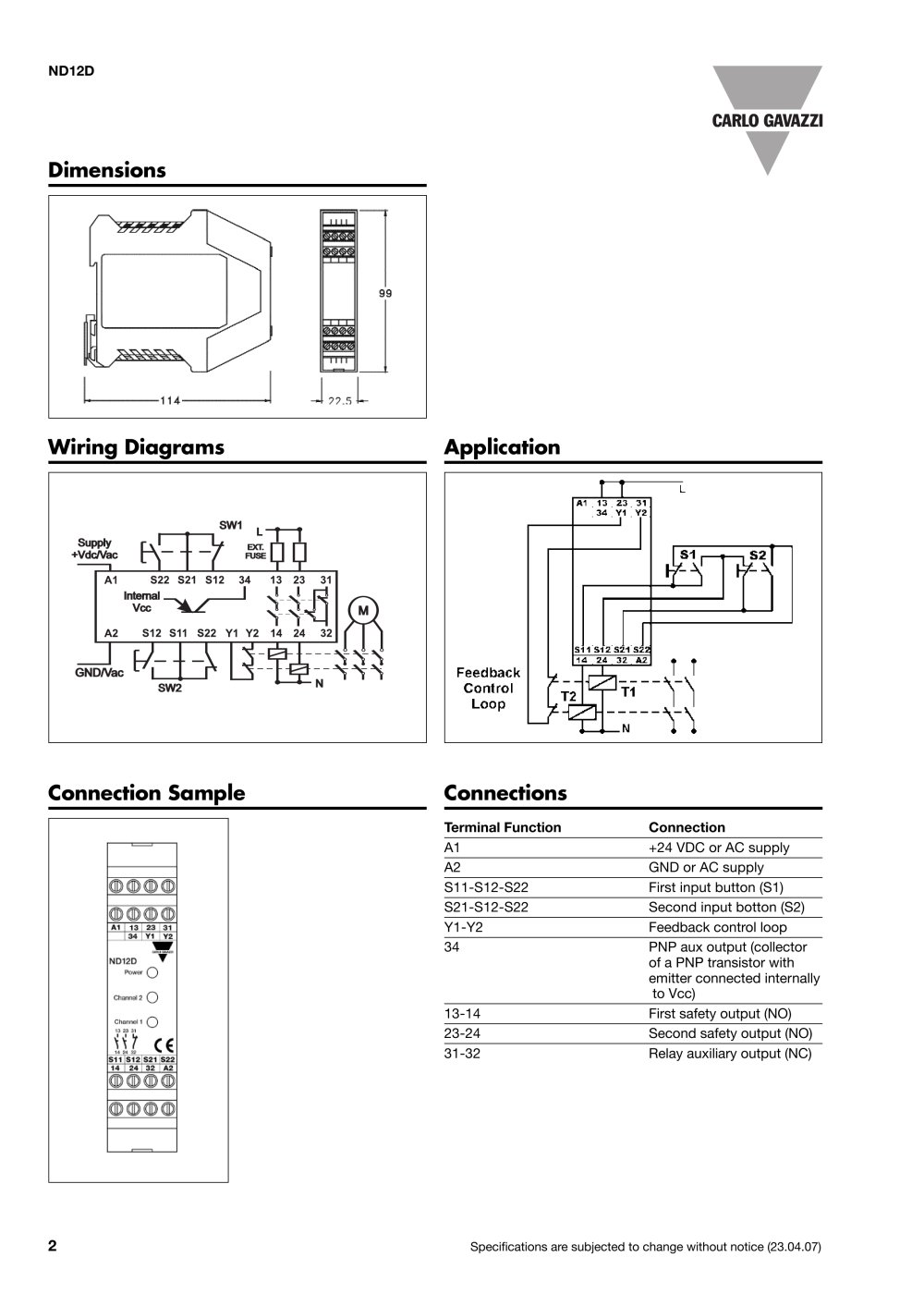

Safety Modules ND12D - 6077 Dimensions Wiring Diagrams Application Connection Sample Connections

Terminal FunctionConnection A1+24 VDC or ACsupply A2GND or ACsupply S11-S12-S22First input button (S1) S21-S12-S22Second input botton (S2) Y1-Y2Feedback control loop34PNP aux output (collector of a PNP transistor with emitter connected internally to Vcc) 13-14First safety output (NO) 23-24Second safety output (NO)31-32Relay auxiliary output (NC)

2
