Proximity Magnetic Sensors Level Magnetic Sensors ILMM Series - CARLO GAVAZZI - #1

Text version of the page

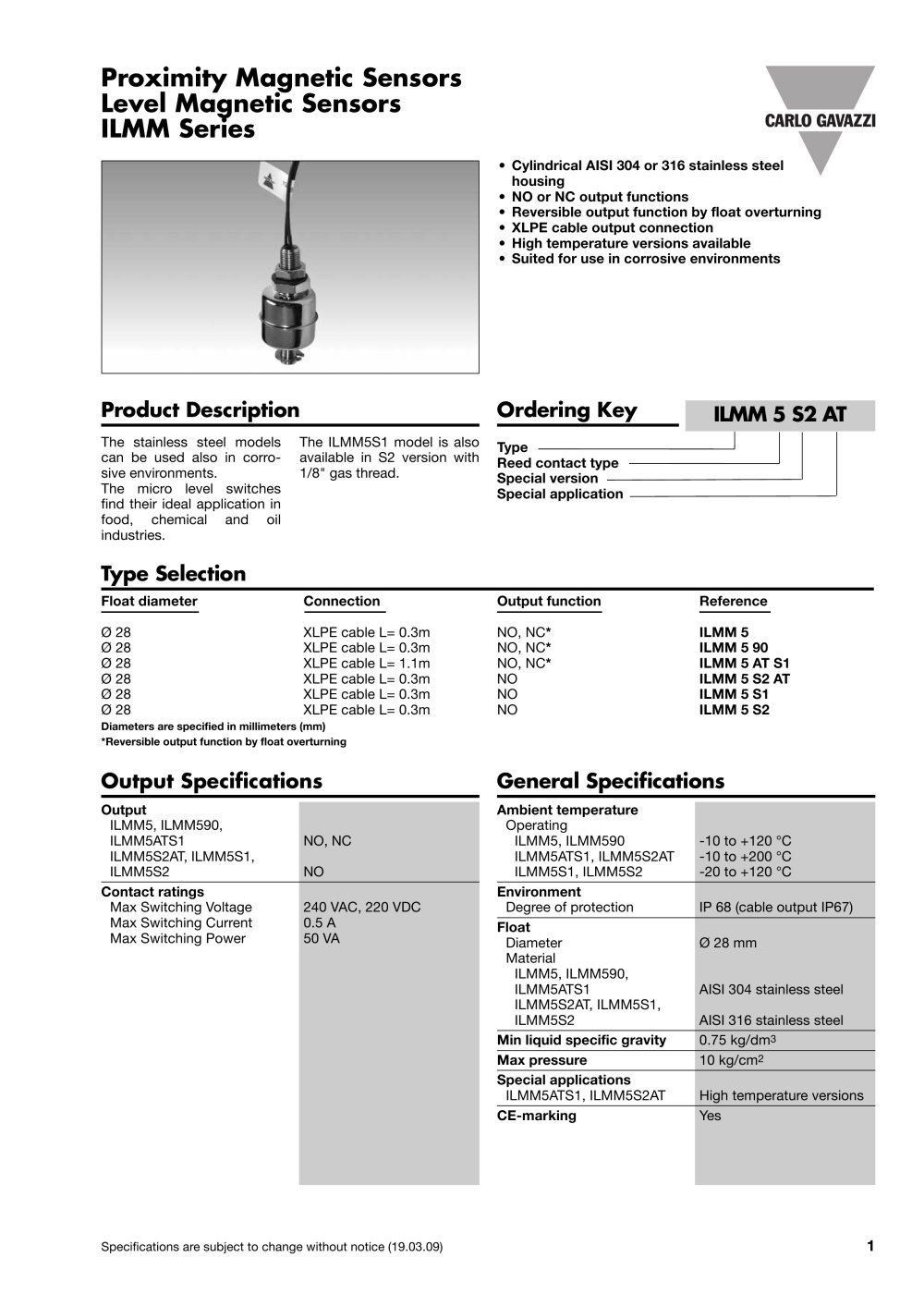

Specifications are subject to change without notice (19.03.09) 1 Ambient temperature Operating ILMM5, ILMM590 -10 to +120 °C ILMM5ATS1, ILMM5S2AT -10 to +200 °C ILMM5S1, ILMM5S2 -20 to +120 °C Environment Degree of protection IP 68 (cable output IP67) Float Diameter Ø 28 mm Material ILMM5, ILMM590, ILMM5ATS1 AISI 304 stainless steel ILMM5S2AT, ILMM5S1, ILMM5S2 AISI 316 stainless steel Min liquid specific gravity 0.75 kg/dm3 Max pressure 10 kg/cm2 Special applications ILMM5ATS1, ILMM5S2AT High temperature versions CE-marking Yes General Specifications Type Selection • Cylindrical AISI 304 or 316 stainless steel housing • NO or NC output functions • Reversible output function by float overturning • XLPE cable output connection • High temperature versions available • Suited for use in corrosive environments Ordering Key ILMM 5 S2 AT The stainless steel models can be used also in corrosive environments. The micro level switches find their ideal application in food, chemical and oil industries. The ILMM5S1 model is also available in S2 version with 1/8" gas thread. Product Description Type Reed contact type Special version Special application Output ILMM5, ILMM590, ILMM5ATS1 NO, NC ILMM5S2AT, ILMM5S1, ILMM5S2 NO Contact ratings Max Switching Voltage 240 VAC, 220 VDC Max Switching Current 0.5 A Max Switching Power 50 VA Output Specifications Float diameter Connection Output function Reference Ø 28 XLPE cable L= 0.3m NO, NC* ILMM 5 Ø 28 XLPE cable L= 0.3m NO, NC* ILMM 5 90 Ø 28 XLPE cable L= 1.1m NO, NC* ILMM 5 AT S1 Ø 28 XLPE cable L= 0.3m NO ILMM 5 S2 AT Ø 28 XLPE cable L= 0.3m NO ILMM 5 S1 Ø 28 XLPE cable L= 0.3m NO ILMM 5 S2 Diameters are specified in millimeters (mm) *Reversible output function by float overturning Proximity Magnetic Sensors Level Magnetic Sensors ILMM Series
