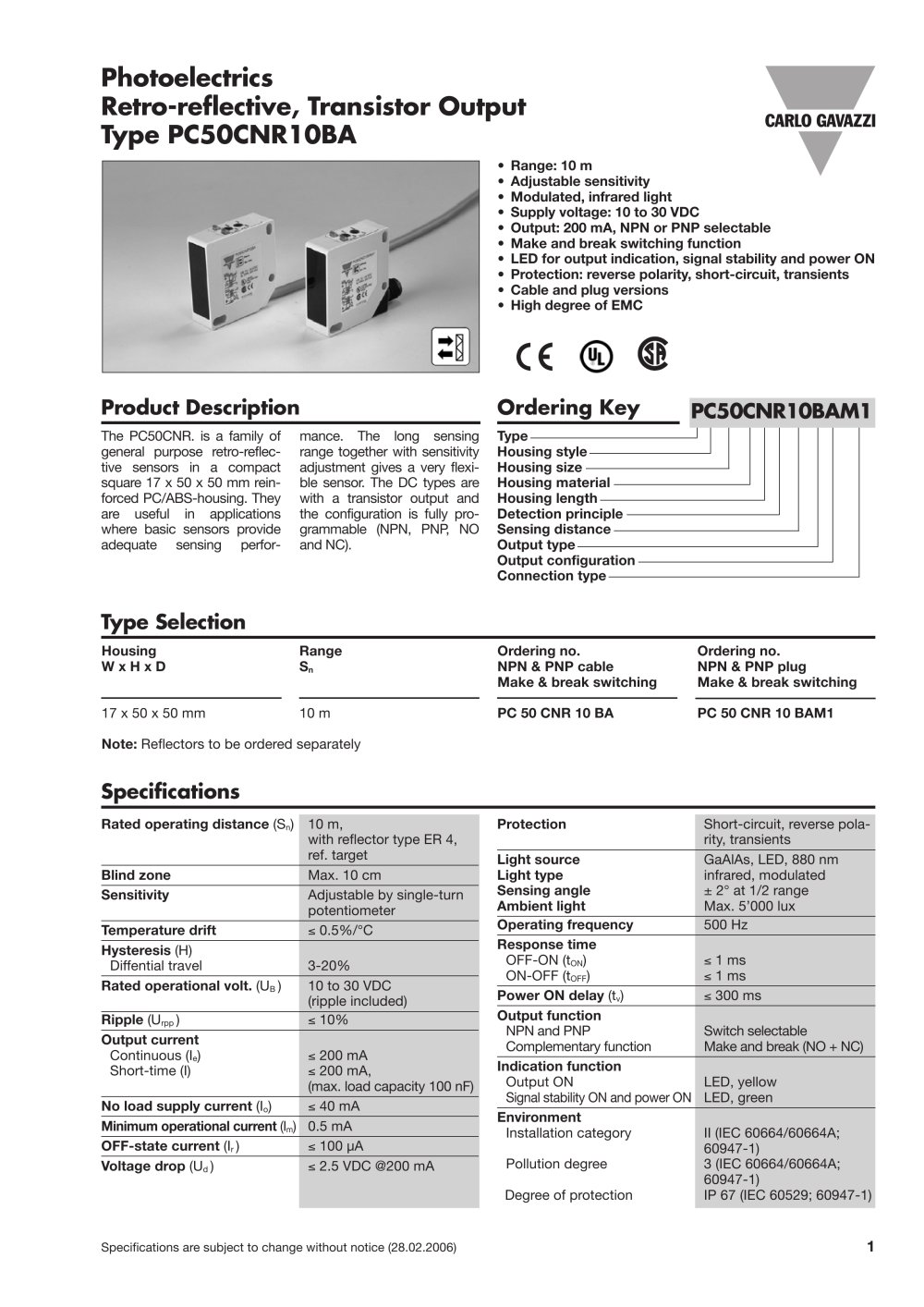

Photoelectrics Retro-reflective, Transistor Output Type PC50CNR10BA - 1

Specifications are subject to change without notice (28.02.2006) 1 Product Description The PC50CNR. is a family of general purpose retro-reflective sensors in a compact square 17 x 50 x 50 mm reinforced PC/ABS-housing. They are useful in applications where basic sensors provide adequate sensing performance. The long sensing range together with sensitivity adjustment gives a very flexible sensor. The DC types are with a transistor output and the configuration is fully programmable (NPN, PNP, NO and NC). • Range: 10 m • Adjustable sensitivity • Modulated, infrared light • Supply voltage: 10 to 30 VDC • Output: 200 mA, NPN or PNP selectable • Make and break switching function • LED for output indication, signal stability and power ON • Protection: reverse polarity, short-circuit, transients • Cable and plug versions • High degree of EMC Photoelectrics Retro-reflective, Transistor Output Type PC50CNR10BA Type Selection Housing Range Ordering no. Ordering no. W x H x D Sn NPN & PNP cable NPN & PNP plug Make & break switching Make & break switching 17 x 50 x 50 mm 10 m PC 50 CNR 10 BA PC 50 CNR 10 BAM1 Note: Reflectors to be ordered separately Ordering Key Type Housing style Housing size Housing material Housing length Detection principle Sensing distance Output type Output configuration Connection type Specifications Rated operating distance (Sn) 10 m, with reflector type ER 4, ref. target Blind zone Max. 10 cm Sensitivity Adjustable by single-turn potentiometer Temperature drift 0.5%/°C Hysteresis (H) Diffential travel 3-20% Rated operational volt. (UB ) 10 to 30 VDC (ripple included) Ripple (Urpp ) 10% Output current Continuous (Ie) 200 mA Short-time (I) 200 mA, (max. load capacity 100 nF) No load supply current (Io) 40 mA Minimum operational current (Im) 0.5 mA OFF-state current (Ir ) 100 ìA Voltage drop (Ud ) 2.5 VDC @200 mA Protection Short-circuit, reverse polarity, transients Light source GaAlAs, LED, 880 nm Light type infrared, modulated Sensing angle ± 2° at 1/2 range Ambient light Max. 5’000 lux Operating frequency 500 Hz Response time OFF-ON (tON) 1 ms ON-OFF (tOFF) 1 ms Power ON delay (tv) 300 ms Output function NPN and PNP Switch selectable Complementary function Make and break (NO + NC) Indication function Output ON LED, yellow Signal stability ON and power ON LED, green Environment Installation category II (IEC 60664/60664A; 60947-1) Pollution degree 3 (IEC 60664/60664A; 60947-1) Degree of protection IP 67 (IEC 60529; 60947-1) PC50CNR10BAM1

Open the catalog to page 1
Photoelectrics Retro-reflective, Transistor Output Type PC50CNR10BA - 2

2 Specifications are subject to change without notice (28.02.2006) Dimensions PC50CNR10BA 11.3 29 14.5 35.2 35.2 50 50 21 21.4 24.85 15 19 41.4 21 24.85 1o 9 21.15 19 R2.3 Ø4.45 R2.3 17 Operation Diagram Power supply Target present Break (NC) Output ON Make (NO) Output ON Object present tv = Power ON delay Specifications (cont.) Temperature Operating -20° to +60°C (-4° to +140°F) Storage -25° to +80°C (-13° to +176°F) Vibration 10 to 150 Hz, 0.5 mm/7.5 g (IEC 60068-2-6) Shock 2 x 1 m & 100 x 0.5 m (IEC 60068-2-32) Rated insulation voltage 50 VDC Housing material Body PC/ABS, grey Front...

Open the catalog to page 2
Photoelectrics Retro-reflective, Transistor Output Type PC50CNR10BA - 3

Specifications are subject to change without notice (28.02.2006) 3 Detection Diagram Delivery Contents • Photoelectric switch: PC50CNR.. • Installation instruction • Mounting bracket APC50-1 • Packaging: Cardboard box Accessories • Reflectors: ER-series • Screwdriver for adjustment: 77-001 • Connector type CON.1A.. For further information refer to “Accessories” PC50CNR10BA Signal Stability Excess Gain Excess gain Time 150% 100% 70% Green LED ON Yellow LED ON Wiring Diagrams + - 1 BN 4 BK 2 WH 3 BU NPN PNP Sensing range (mm) Y X Sensor R27 Kodac test card (mm) Sensing range (mm) Excess gain...

Open the catalog to page 3
