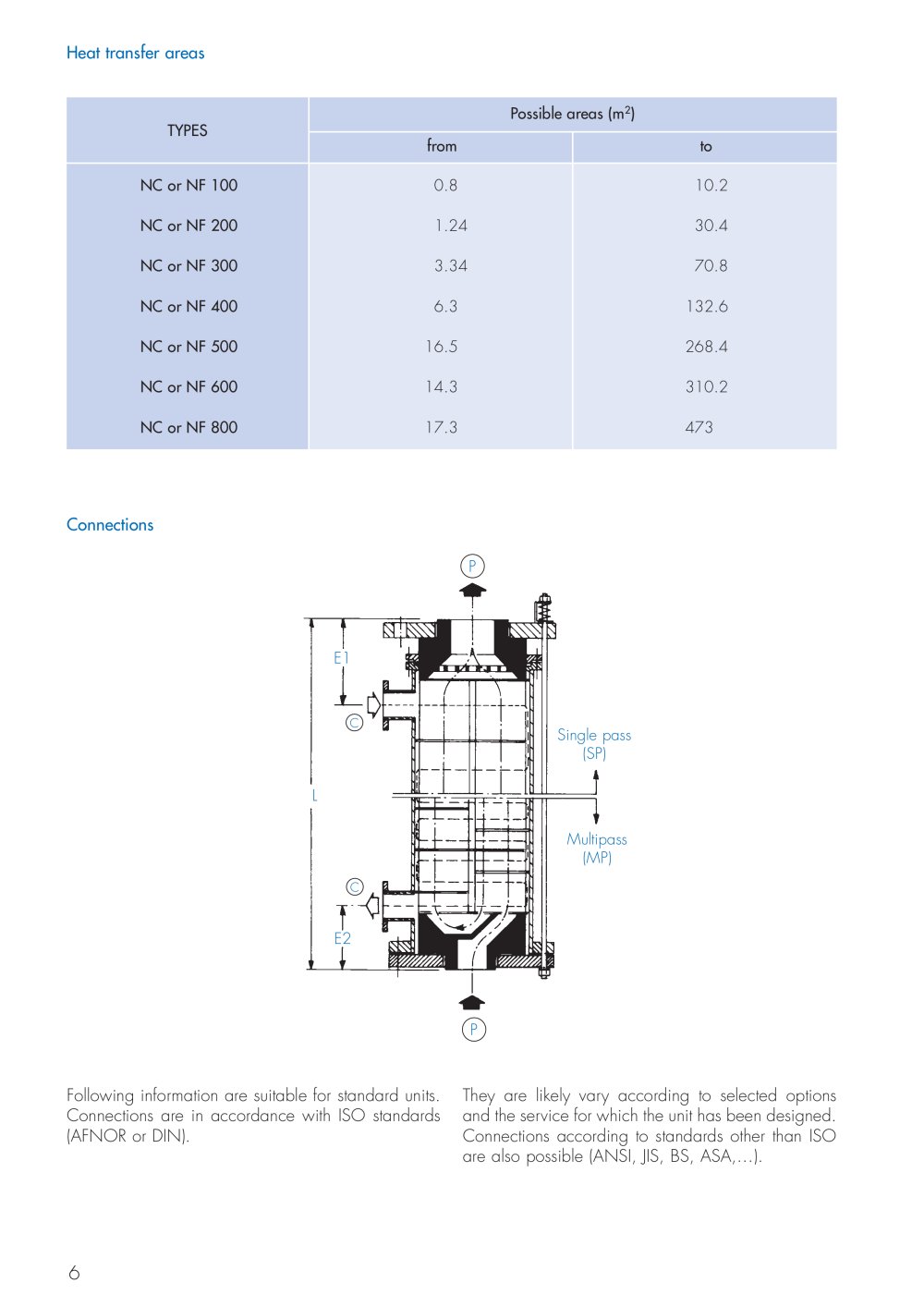

Heat transfer areas
Possible areas (m
2 )fromto TYPES NC or NF 100 0.810.2 NC or NF 200 1.2430.4 NC or NF 300 3.3470.8 NC or NF 400 6.3132.6 NC or NF 500 16.5268.4 NC or NF 600 14.3310.2 NC or NF 800 17.3473
Connections
P E1LE2
Single pass(SP)Multipass(MP)
C C P
Following information are suitable for standard units.Connections are in accordance with ISO standards
(AFNOR or DIN).They are likely vary according to selected optionsand the service for which the unit has been designed.
Connections according to standards other than ISO
are also possible (ANSI, JIS, BS, ASA,…).
6
