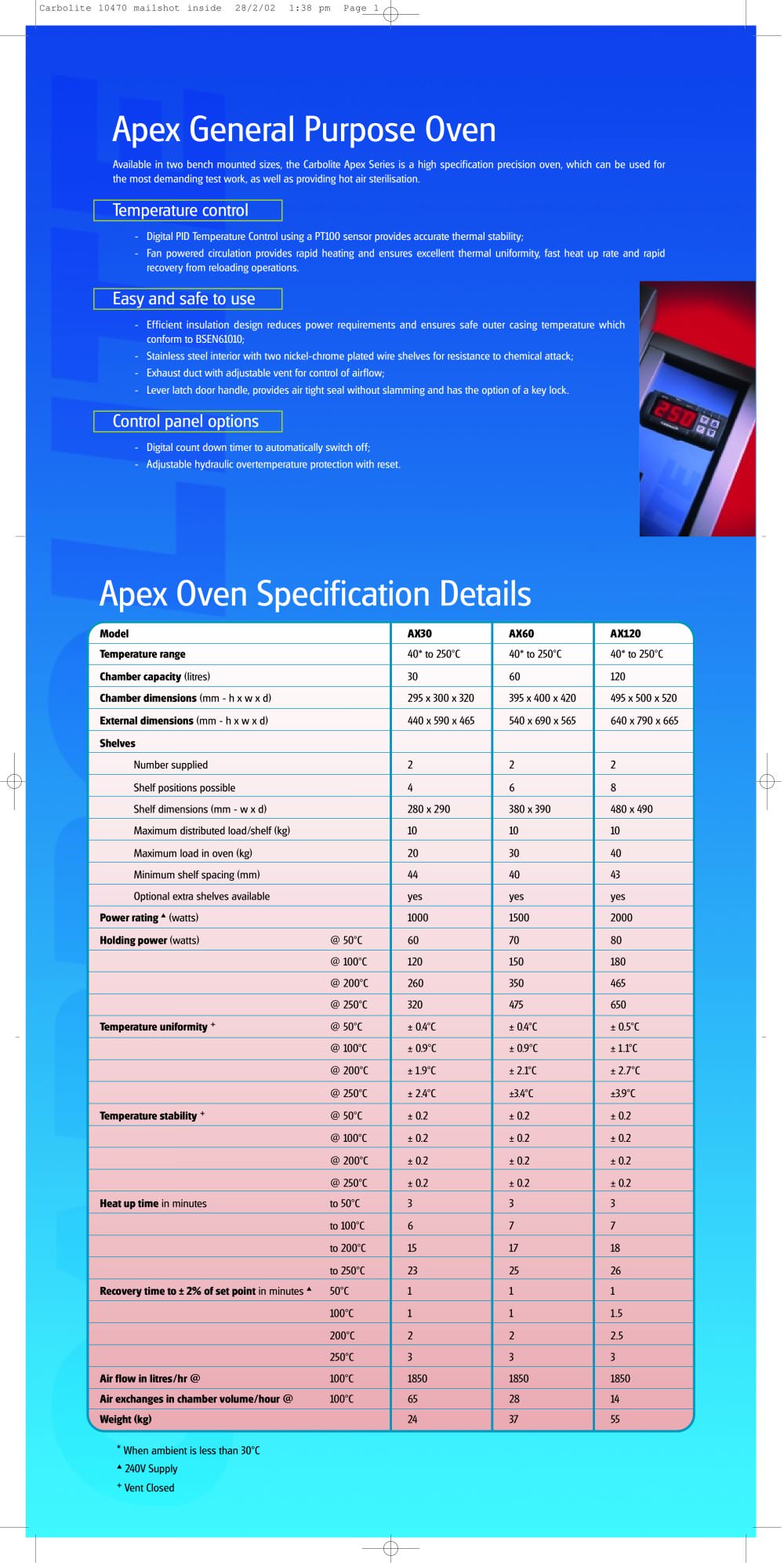

Apex Laboratory Oven Brochure - 28278 Apex General Purpose Oven

Available in two bench mounted sizes, the Carbolite Apex Series is a high specification precision oven, which can be used forthe most demanding test work, as well as providing hot air sterilisation.

Temperature control

-Digital PID Temperature Control using a PT100 sensor provides accurate thermal stability;-Fan powered circulation provides rapid heating and ensures excellent thermal uniformity, fast heat up rate and rapidrecovery from reloading operations.

Easy and safe to use

-Efficient insulation design reduces power requirements and ensures safe outer casing temperature whichconform to BSEN61010;-Stainless steel interior with two nickel-chrome plated wire shelves for resistance to chemical attack; -Exhaust duct with adjustable vent for control of airflow; -Lever latch door handle, provides air tight seal without slamming and has the option of a key lock.

Control panel options

-Digital count down timer to automatically switch off; -Adjustable hydraulic overtemperature protection with reset.

Apex Oven Specification Details

ModelAX30AX60AX120Temperature range 40* to 250°C40* to 250°C40* to 250°C Chamber capacity (litres)3060120 Chamber dimensions (mm - h x w x d)295 x 300 x 320395 x 400 x 420495 x 500 x 520 External dimensions (mm - h x w x d)440 x 590 x 465540 x 690 x 565640 x 790 x 665 Shelves Number supplied222Shelf positions possible468Shelf dimensions (mm - w x d) 280 x 290380 x 390480 x 490 Maximum distributed load/shelf (kg)101010Maximum load in oven (kg)203040Minimum shelf spacing (mm)444043 Optional extra shelves availableyesyesyes Power rating (watts)100015002000 Holding power Temperature uniformity (watts)@ 50°C607080@ 100°C120150180 @ 200°C260350465 @ 250°C320475650 +@ 50°C± 0.4°C± 0.4°C± 0.5°C@ 100°C± 0.9°C± 0.9°C± 1.1°C@ 200°C± 1.9°C± 2.1°C± 2.7°C@ 250°C± 2.4°C±3.4°C±3.9°C Recovery time to ± 2% of set point Heat up time Temperature stability in minutesto 50°C3 3 3to 100°C6 7 7 to 200°C15 17 18 to 250°C23 25 26 +@ 50°C± 0.2± 0.2± 0.2@ 100°C± 0.2± 0.2± 0.2 @ 200°C± 0.2± 0.2± 0.2 @ 250°C± 0.2± 0.2± 0.2 in minutes 50°C1 11100°C1 11.5 200°C2 22.5250°C3 33 Air flow in litres/hr @ 100°C185018501850 Air exchanges in chamber volume/hour @ 100°C652814 Weight (kg) 243755 *When ambient is less than 30°C 240V Supply+Vent Closed
