Digital PID temperature controllerPT100 Class BPowder coated Zintec304 BA stainless steelReplaceable silicone sealTrigger operated lever latchDigital count down timer from 99 hours 59 minutes that switches off oven at time outAdjustable hydraulic overtemperature protection with resetAdditional chrome plated wire shelvesLockable door latch100, 110 to 120V single phase - 50/60Hz 200 to 208, 220 to 240v single phase - 50/60 Hz
Carbolite10470 mailshot outside 28/2/02 1:36 pm Page 1 Controller typeTemperature probeCase finish Liner material Door seal Door latch Options availableVoltage options supplied

Definition of measurement terms:

Set point: Temperature at which the controller is set.Uniformity:The maximum variation in the temperature between 9 different points within the chamber ata single point in time (measurement positions: 50mm from sides, top, bottom, and back and 75mm in from door plus one in centre).Stability:The fluctuation in the temperature at the centre of the chamber over 30 minutes.

Standards to which the Apex Ovens conform:

The above products are built to comply with the essential protection requirements of the Low Voltage Directive73/23/EEC (and amendments to that directive) by the application of the European Standard BS EN 61010-2- 010:1995 (Safety Requirements of Electrical Equipment – Particular Requirements for Laboratory Equipment for the Heating of Materials).The above products are built to comply with the protection requirements of the EMC Directive89/336/EEC (and amendments to that directive) by the application of the European Standard BS EN 50014:1993 (Limits and methods of measurement of radio disturbance characteristics of electrical motor operated and thermal appliances for household and similar purposes, electric tools and similar electric apparatus).

Performance standards to which the Apex Ovens conform:

Electrically heated drying ovens BS 2648Over temperature protection (option) DIN 12-880 class 2

Carbolite,Parsons Lane, Hope, Hope Valley, S33 6RB, England. Tel: +44 (0) 1433 620011 Fax: +44 (0) 1433 621198email: enquiry@carbolite.co.uk web: www.carbolite.com

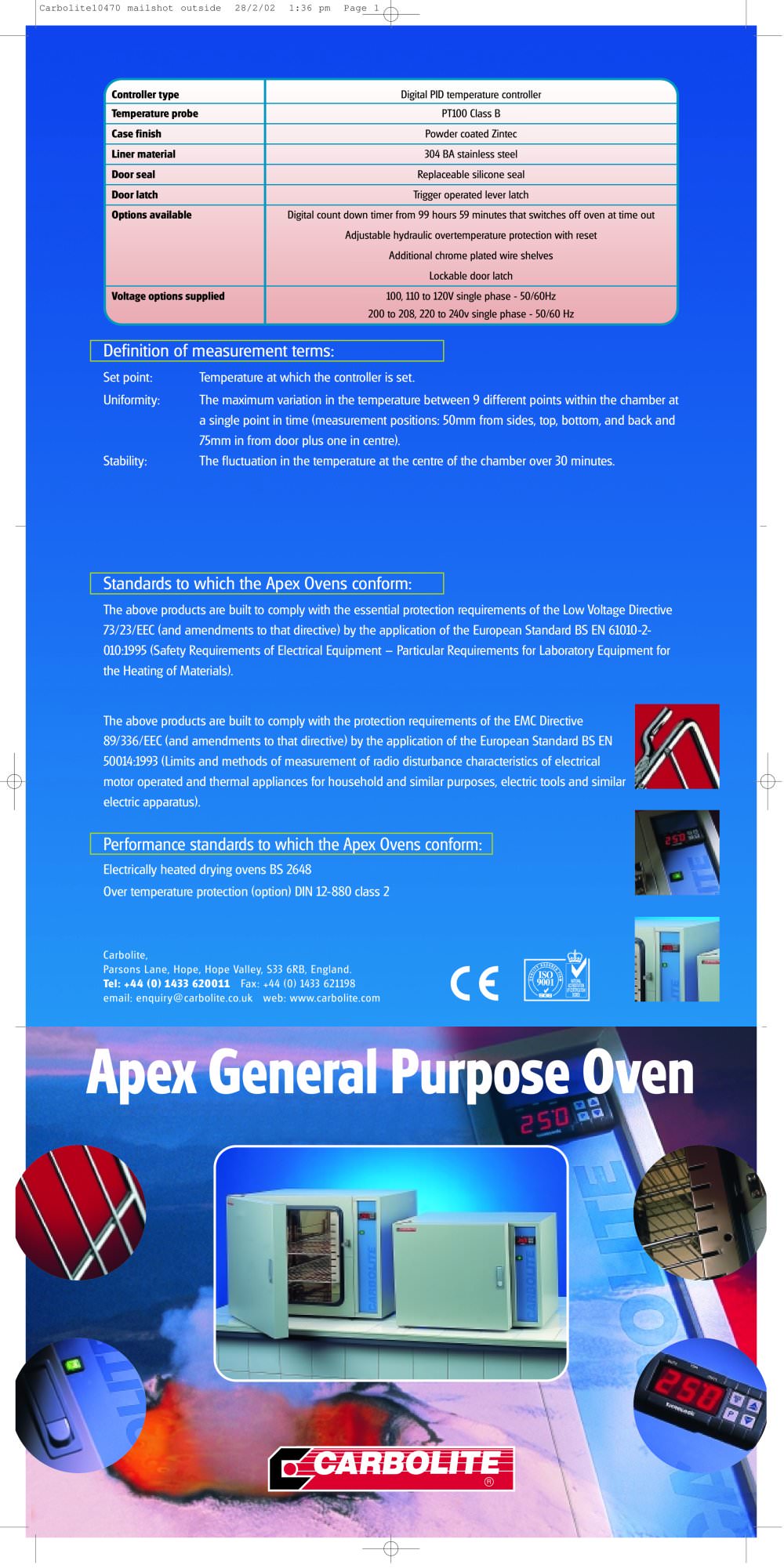

Apex Laboratory Oven Brochure - 28278 Apex General Purpose Oven
