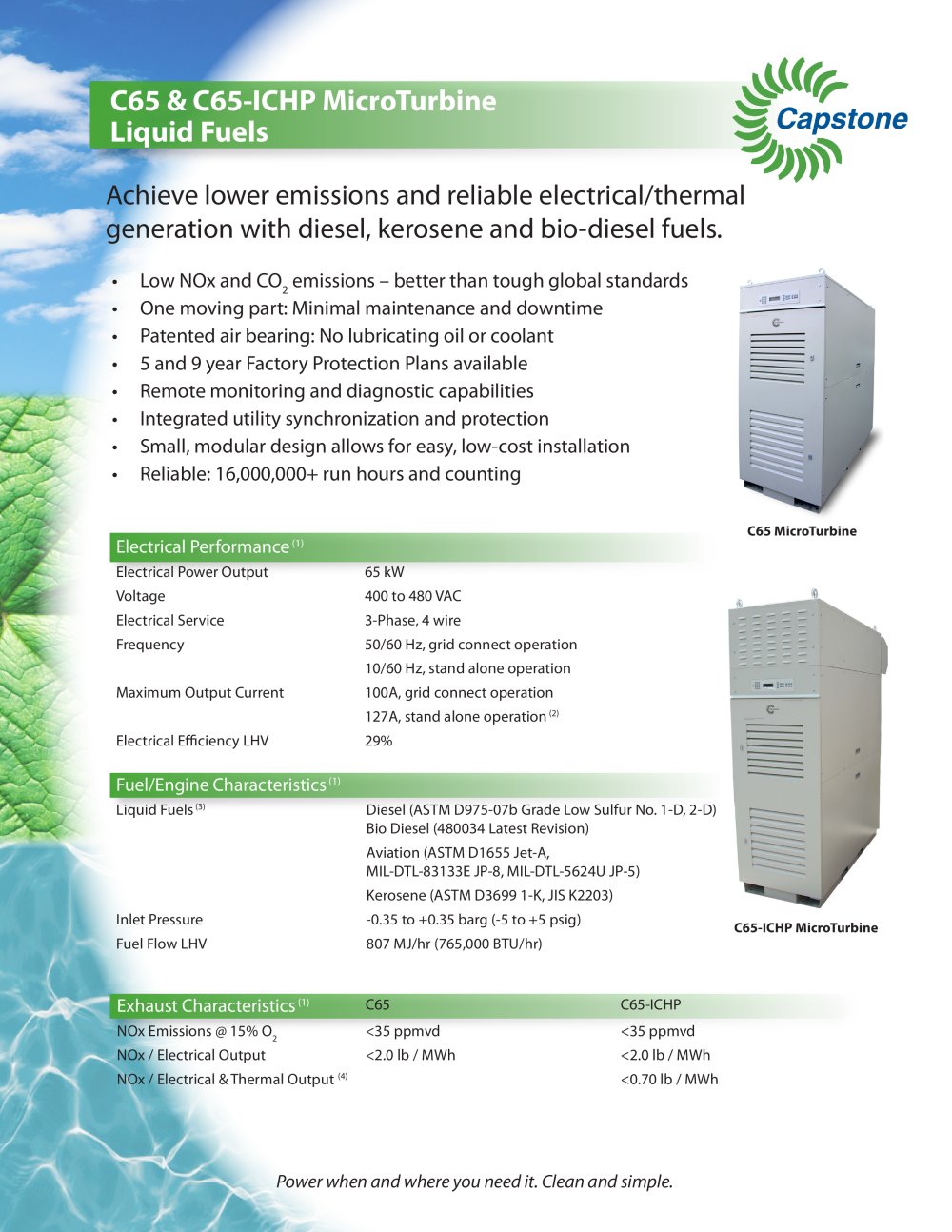

| C65 & C65-ICHP MicroTurbine Liquid Fuels | |||||||||||||||||||||||||||||||||||
| § Capstone | |||||||||||||||||||||||||||||||||||
| wm | |||||||||||||||||||||||||||||||||||
| Achieve lower emissions and reliable electrical/thermal generation with diesel, kerosene and bio-diesel fuels. | |||||||||||||||||||||||||||||||||||
| Low NOx and CO2 emissions - better than tough global standards One moving part: Minimal maintenance and downtime Patented air bearing: No lubricating oil or coolant 5 and 9 year Factory Protection Plans available Remote monitoring and diagnostic capabilities Integrated utility synchronization and protection Small, modular design allows for easy, low-cost installation Reliable: 16,000,000+ run hours and counting | |||||||||||||||||||||||||||||||||||
| C65 MicroTurbine | |||||||||||||||||||||||||||||||||||
| Electrical Performance ( | |||||||||||||||||||||||||||||||||||
| Electrical Power Output Voltage Electrical Service Frequency Maximum Output Current Electrical Efficiency LHV | 65 kW 400 to 480 VAC 3-Phase, 4 wire 50/60 Hz, grid connect operation 10/60 Hz, stand alone operation 100A, grid connect operation 127A, stand alone operation (2) 29% | ||||||||||||||||||||||||||||||||||
| Fuel/Engine Characteristics (1) | |||||||||||||||||||||||||||||||||||
| Liquid Fuels ( | |||||||||||||||||||||||||||||||||||
| Diesel (ASTM D975-07b Grade Low Sulfur No. 1-D, 2-D) Bio Diesel (480034 Latest Revision) Aviation (ASTM D1655 Jet-A, MIL-DTL-83133E JP-8, MIL-DTL-5624U JP-5) Kerosene (ASTM D3699 1-K, JIS K2203) -0.35 to +0.35 barg (-5 to +5 psig) 807 MJ/hr (765,000 BTU/hr) | |||||||||||||||||||||||||||||||||||
| Inlet Pressure Fuel Flow LHV | |||||||||||||||||||||||||||||||||||
| C65-ICHP MicroTurbine | |||||||||||||||||||||||||||||||||||
| Exhaust Characteristics (1) | |||||||||||||||||||||||||||||||||||
| C65-ICHP <35 ppmvd <2.0 lb / MWh <0.70 lb / MWh | |||||||||||||||||||||||||||||||||||
| @ 15% O2 NOx / Electrical Output <2.0 lb / MWh NOx / Electrical & Thermal Output (4) | |||||||||||||||||||||||||||||||||||
| Power when and where you need it. Clean and simple. | |||||||||||||||||||||||||||||||||||
