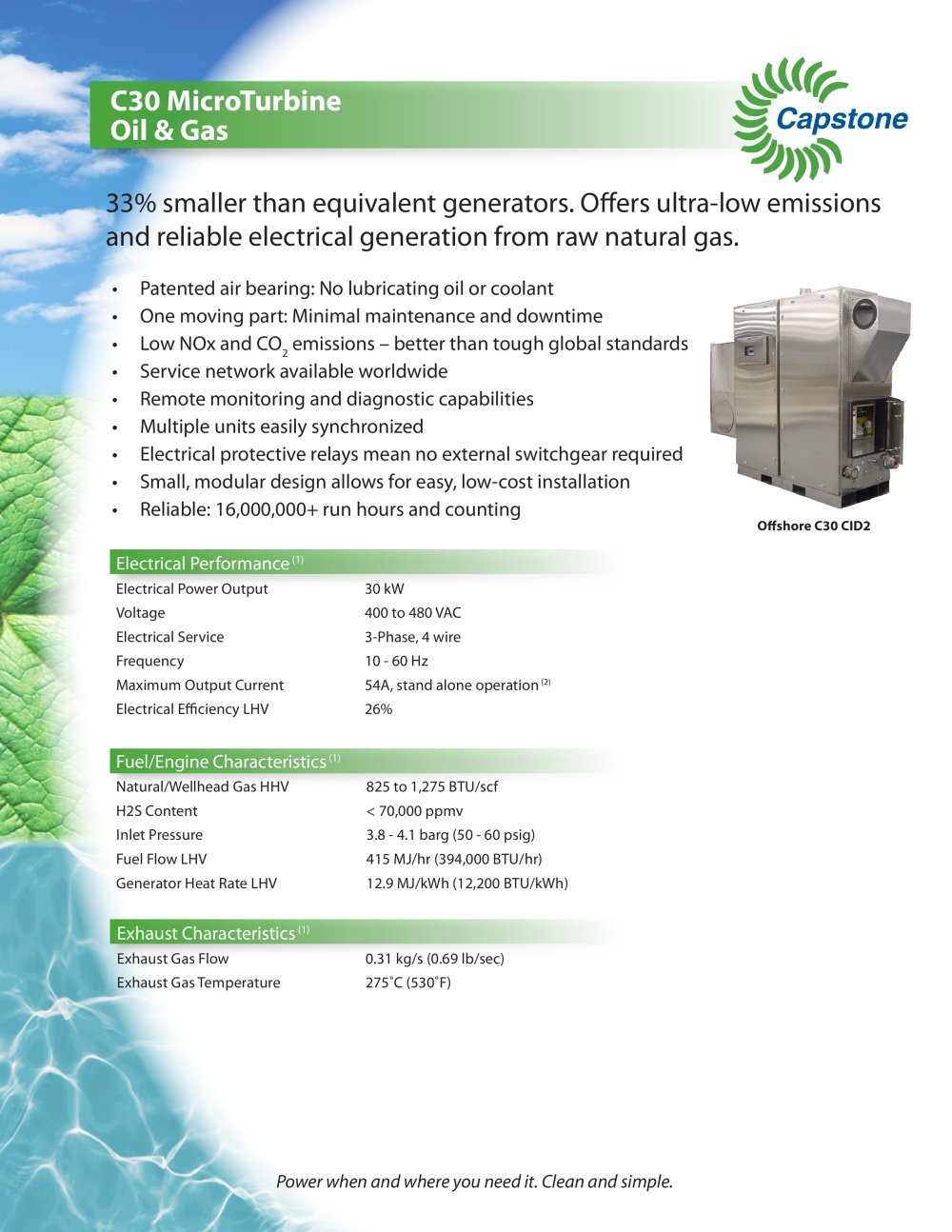

| C30 MicroTurbine Oil & Gas | |||||||||||||||||||||||||||||||||
| ä Capstone | |||||||||||||||||||||||||||||||||
| wm | |||||||||||||||||||||||||||||||||
| 33% smaller than equivalent generators. Offers ultra-low emissions and reliable electrical generation from raw natural gas. | |||||||||||||||||||||||||||||||||
| Patented air bearing: No lubricating oil or coolant One moving part: Minimal maintenance and downtime Low NOx and CO2 emissions - better than tough global standards Service network available worldwide Remote monitoring and diagnostic capabilities Multiple units easily synchronized Electrical protective relays mean no external switchgear required Small, modular design allows for easy, low-cost installation Reliable: 16,000,000+ run hours and counting | |||||||||||||||||||||||||||||||||
| Offshore C30 CID2 | |||||||||||||||||||||||||||||||||
| Electrical Performance (1) | |||||||||||||||||||||||||||||||||
| Electrical Power Output Voltage Electrical Service Frequency Maximum Output Current Electrical Efficiency LHV | 30 kW 400 to 480 VAC 3-Phase, 4 wire 10 - 60 Hz 54A, stand alone operation (2) 26% | ||||||||||||||||||||||||||||||||
| Fuel/Engine Characteristics (1) | |||||||||||||||||||||||||||||||||
| Natural/Wellhead Gas HHV H2S Content Inlet Pressure Fuel Flow LHV Generator Heat Rate LHV | 825 to 1,275 BTU/scf < 70,000 ppmv 3.8 - 4.1 barg (50 - 60 psig) 415 MJ/hr (394,000 BTU/hr) 12.9 MJ/kWh (12,200 BTU/kWh) | ||||||||||||||||||||||||||||||||
| Exhaust Characteristics (1) | |||||||||||||||||||||||||||||||||
| Exhaust Gas Flow Exhaust Gas Temperature | 0.31 kg/s (0.69 lb/sec) 275°C (530°F) | ||||||||||||||||||||||||||||||||
| Power when and where you need it. Clean and simple. | |||||||||||||||||||||||||||||||||
