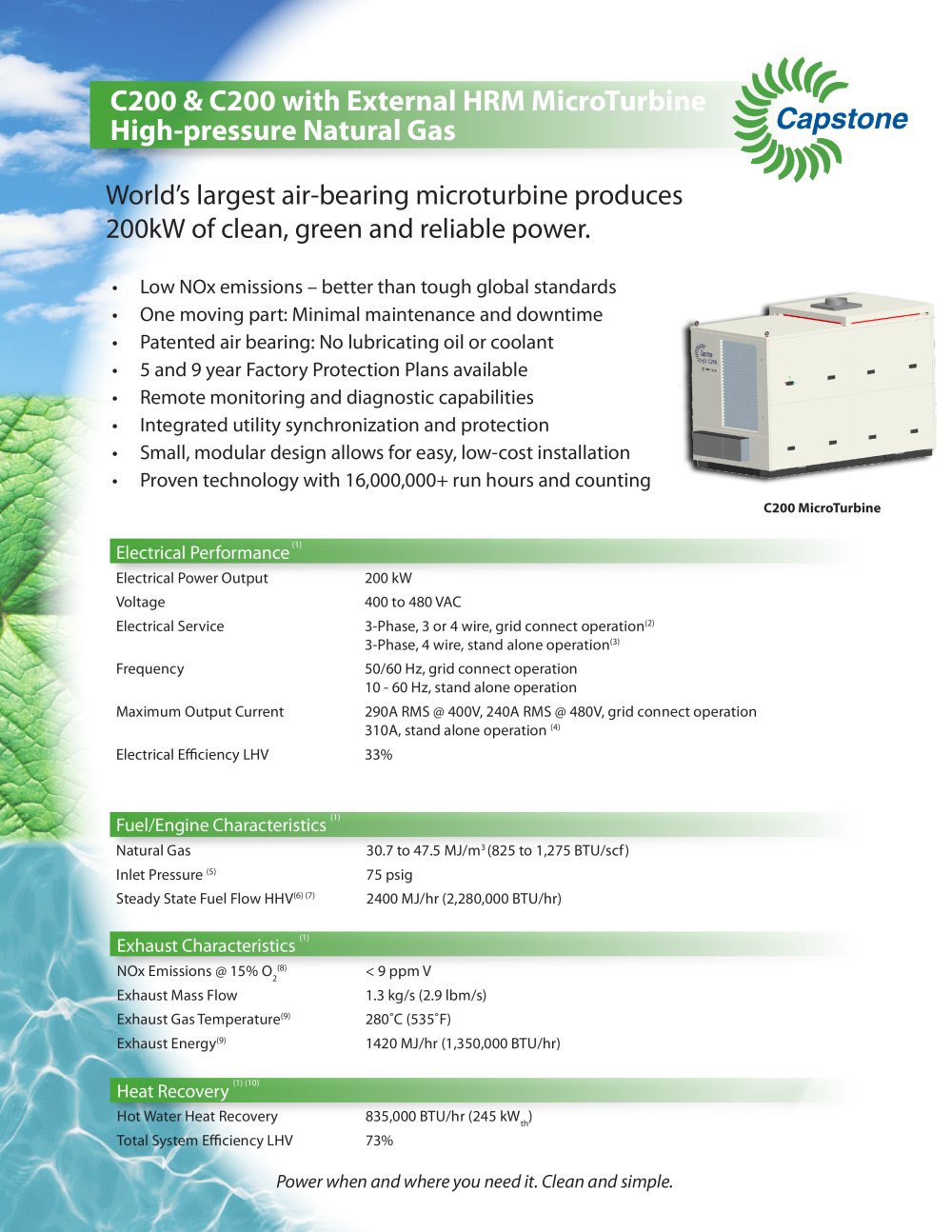

C200 & C200 with External HRM MicroT High-pressure Natural Gas

Capstone ft

World's largest air-bearing microturbine produces 200kW of clean, green and reliable power.

Low NOx emissions - better than tough global standards One moving part: Minimal maintenance and downtime Patented air bearing: No lubricating oil or coolant 5 and 9 year Factory Protection Plans available Remote monitoring and diagnostic capabilities Integrated utility synchronization and protection Small, modular design allows for easy, low-cost installation Proven technology with 16,000,000+ run hours and counting

C200 MicroTurbine


	I Electrical Performance ⁽¹⁾
	Electrical Power Output	200 kW
	Voltage	400 to 480 VAC
	Electrical Service	3-Phase, 3 or 4 wire, grid connect operation'²¹3-Phase, 4 wire, stand alone operation'³¹
	Frequency	50/60 Hz, grid connect operation 10 - 60 Hz, stand alone operation
	Maximum Output Current	290A RMS @ 400V, 240A RMS @ 480V, grid connect operation 310A, stand alone operation '⁴¹
	Electrical Efficiency LHV	33%
	Fuel/Engine Characteristics ⁽¹⁾
	Natural Gas	30.7 to 47.5 MJ/m³ (825 to 1,275 BTU/scf)
	Inlet Pressure ⁽⁵⁾	75 psig
	Steady State Fuel Flow HHV⁽⁶⁾ ⁽⁷⁾	2400 MJ/hr (2,280,000 BTU/hr)
	Exhaust Characteristics ⁽¹⁾
	NOx Emissions @ 15% O₂⁽⁸⁾	<9ppmV
	Exhaust Mass Flow	1.3 kg/s (2.9 lbm/s)
	Exhaust Gas Temperature⁽⁹⁾	280°C (535°F)
	Exhaust Energy⁽⁹⁾	1420 MJ/hr (1,350,000 BTU/hr)
	II j. r> (1) (10) Heat Recovery
	Hot Water Heat Recovery	835,000 BTU/hr (245 kW_th)
	Total System Efficiency LHV	73%

Power when and where you need it. Clean and simple.
