US Email: sales@capacitec.com Spec-0013
EU Email: eurosales@capacitec.com Page 1 of 4
Web: www.capacitec.com REV I 6/10/09
AB

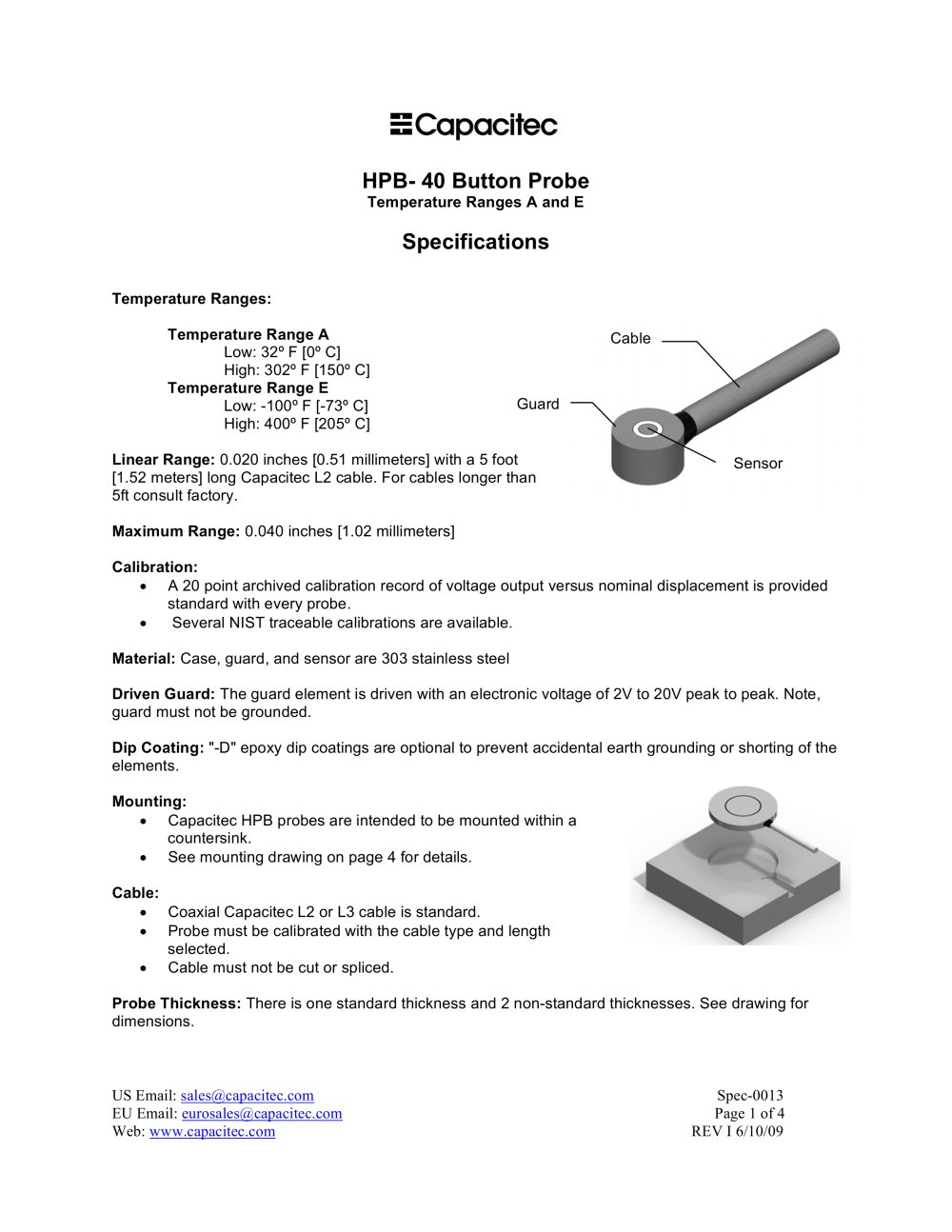

HPB- 40 Button Probe
Temperature Ranges A and E
Specifications
Temperature Ranges:
Temperature Range A
Low: 32º F [0º C]
High: 302º F [150º C]
Temperature Range E
Low: -100º F [-73º C]
High: 400º F [205º C]
Linear Range: 0.020 inches [0.51 millimeters] with a 5 foot
[1.52 meters] long Capacitec L2 cable. For cables longer than
5ft consult factory.
Maximum Range: 0.040 inches [1.02 millimeters]
Calibration:
„h A 20 point archived calibration record of voltage output versus nominal displacement is provided
standard with every probe.
„h Several NIST traceable calibrations are available.
Material: Case, guard, and
sensor are 303 stainless steel
Driven Guard: The guard element is driven with an electronic voltage of 2V to 20V peak to peak. Note,
guard must not be grounded.
Dip Coating: "-D" epoxy dip coatings are optional to prevent accidental earth grounding or shorting of the
elements.
Mounting:
„h Capacitec HPB probes are intended to be mounted within a
countersink.
„h See mounting drawing on page 4 for details.
Cable:
„h Coaxial Capacitec L2 or L3 cable is standard.
„h Probe must be calibrated with the cable type and length
selected.
„h Cable must not be cut or spliced.
Probe Thickness: There is one standard thickness and 2 non-standard thicknesses. See drawing for
dimensions.
Sensor
Cable
Guard
