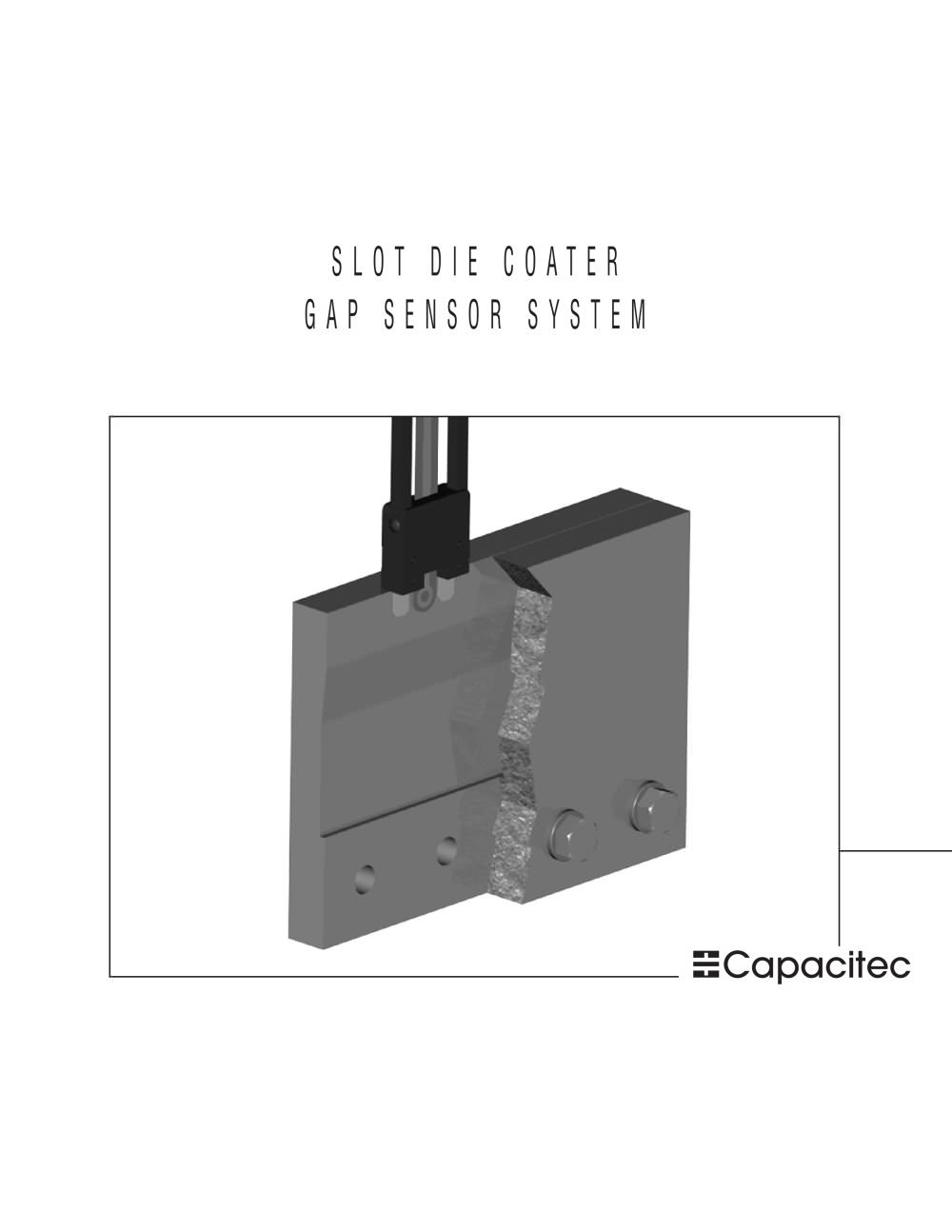

Capacitec Coater Die Brochure

Capacitec Coater Die Brochure
4Pages

Catalog excerpts

S Y S T E M O V E R V I E W For the past 10 years Capacitec has been working closely with leading global manufacturers of labels, tapes and films to develop a system to precisely measure slot die coater gaps. The new non-contact capacitive gap measurement solution includes sensor wands, special wand holders, and signal conditioning electronics and software. Kapton® style Thin Gap Wand Composite laminate Gap Wands NON-CONTACT SENSOR WANDS Custom wand holder with adjustable insertion length and slot guides Custom wand holder (top section) CUSTOM WAND HOLDER Two capacitive non-contact...

Open the catalog to page 2

I N S T R U M E N T A T I O N The dual sensor wands are combined with a matching Capacitec 4000 series instrumentation package that consists of an electronic rack, signal conditioning amplifiers, power supply and cables. The 4000 series Capacitec amplifiers and racks were designed to offer the best signal to noise ratio and wide band width response options in a simple modular option. When coupled with Capacitec sensor wands the electronics produce a linear output voltage of 0-10.000VDC proportional to the gap. Amplifiers come standard with 232Hz, - 3dB frequency response. Two channel system...

Open the catalog to page 3

G A P M E A S U R E M E N T S ab US HEADQUARTERS AB, Inc. 87 Fitchburg Road P.O. Box 819 Ayer, Massachusetts 01432 USA 978-772-6033 FAX: 772-6036 email: sales@capacitec.com EUROPEAN HEADQUARTERS ABEurope 16, rue Séjourné 94044 CRETEIL cedex FRANCE 33 1 43 39 48 68 FAX: 49 80 07 49 email: eurosales@capacitec.com © 2001 Capacitec, Inc GAPMAN® Portable Gap Measurement Instrument GAPMAN is the world’s first high precision, non-contact, portable electronic gap measurement gage. It features a dual capacitive sensor for position-compensated measurement and easy insertion into very narrow gaps down...
