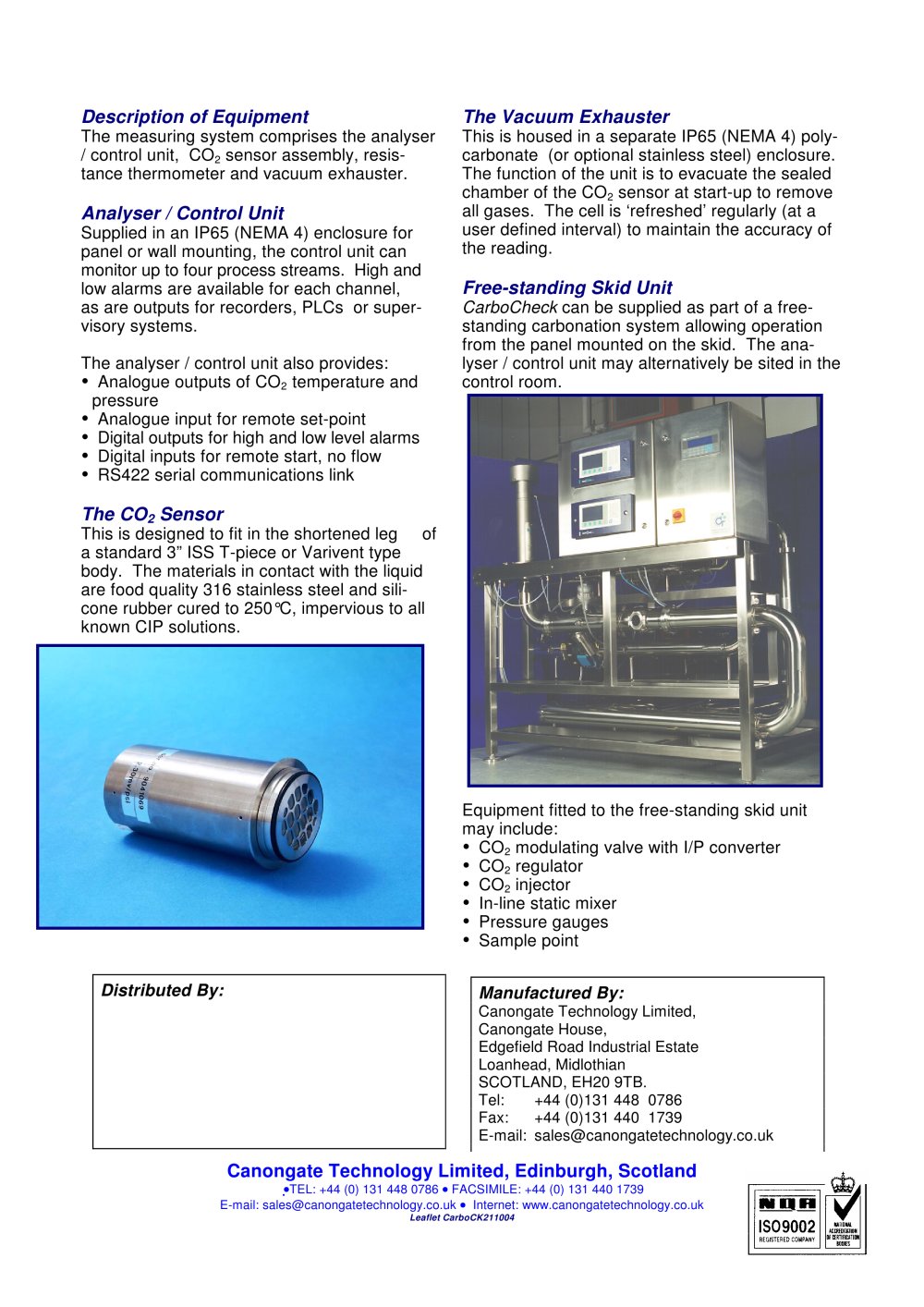

| The Vacuum Exhauster This is housed in a separate IP65 (NEMA 4) polycarbonate (or optional stainless steel) enclosure. The function of the unit is to evacuate the sealed chamber of the CO2 sensor at start-up to remove all gases. The cell is 'refreshed' regularly (at a user defined interval) to maintain the accuracy of the reading. Free-standing Skid Unit OarboOheck can be supplied as part of a freestanding carbonation system allowing operation from the panel mounted on the skid. The analyser / control unit may alternatively be sited in the con t rol room . | ||||||||||||||
| Description of Equipment The measuring system comprises the analyser / control unit, CO2 sensor assembly, resistance thermometer and vacuum exhauster. Analyser / Control Unit Supplied in an IP65 (NEMA 4) enclosure for panel or wall mounting, the control unit can monitor up to four process streams. High and low alarms are available for each channel, as are outputs for recorders, PLCs or supervisory systems. The analyser / control unit also provides: • Analogue outputs of CO2 temperature and pressure • Analogue input for remote set-point • Digital outputs for high and low level alarms • Digital inputs for remote start, no flow • RS422 serial communications link The CO2 Sensor This is designed to fit in the shortened leg of a standard 3" ISS T-piece or Varivent type body. The materials in contact with the liquid are food quality 316 stainless steel and silicone rubber cured to 250°C, impervious to all known CIP solutions. | ||||||||||||||
| Equipment fitted to the free-standing skid unit may include: • CO2 modulating valve with I/P converter • CO2 regulator • CO2 injector • In-line static mixer • Pressure gauges • Sample point | ||||||||||||||
| Distributed By: | ||||||||||||||
| Manufactured By: Canongate Technology Limited, Canongate House, Edgefield Road Industrial Estate Loanhead, Midlothian SCOTLAND, EH20 9TB. Tel: +44 (0)131 448 0786 Fax: +44 (o)l31 440 1739 E-mail: sales@canongatetechnology.co.uk | ||||||||||||||
| Canongate Technology Limited, Edinburgh, Scotland •TEL: +44 (0) 131 448 0786 • FACSIMILE: +44 (0) 131 440 1739 E-mail: sales@canongatetechnology.co.uk • Internet: www.canongatetechnology.co.uk Leaflet CarboCK211004 | ||||||||||||||
