W30 intermittent motion wrap-around case packer

Product catalog summary
Machine Catalogue: W 30 Intermittent Motion Wrap-Around Case-Packer
Technical Specifications:
  • Mechanical Speed: 10 strokes per minute
  • Power Absorption: Maximum of 8 KW
  • Air Consumption: 22 Nl per minute
  • Air Pressure: 6 bar
  • Gross Weight: Approximately 1350 kg
  • Net Weight: Approximately 1200 kg
Size Range:
  • Dimension A: Minimum 100 mm, Maximum 360 mm
  • Dimension B: Minimum 70 mm, Maximum 360 mm
  • Dimension C: Minimum 190 mm, Maximum 500 mm
  • Dimension H: Minimum 40 mm, Maximum 360 mm
Additional Notes:
  • The technical data provided are not binding and may change without prior notice.
  • All rights reserved by Tecnicam s.r.l., Bologna, Italy.
See more

Catalog excerpts

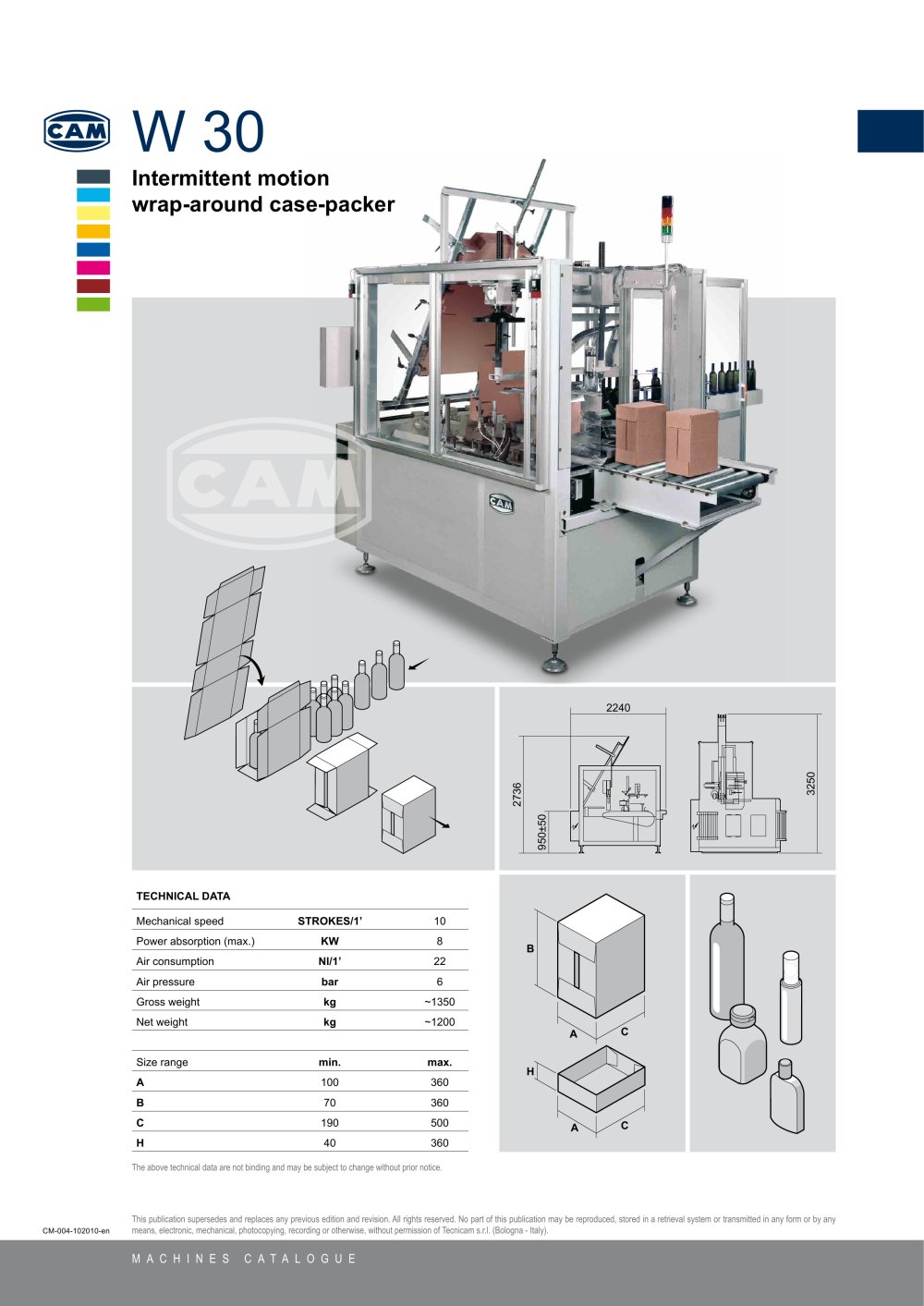

W30 intermittent motion wrap-around case packer-1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:20.00pt "Arial", sans-serif; } .font5 { font:54.00pt "Arial", sans-serif; } CAM W30 Intermittent motion wrap-around case-packer reCHNtCAL DATA STROKES/V 10 F'owct abscrpbon {max } KW 8 Aittoftsumptiori NI/1' 22 Mrpnmm bar 6 Gross w&ght hg 1350 NCtWC^M KQ -1200 Sue range mm max, A 100 360 B 70 M) C 190 ՎO0 H AY: 360 MACHINS CATALOGUE

 Open the catalog to page 1
