NV750 automatic bundler with shrink wrapping - CAM - #1

Text version of the page

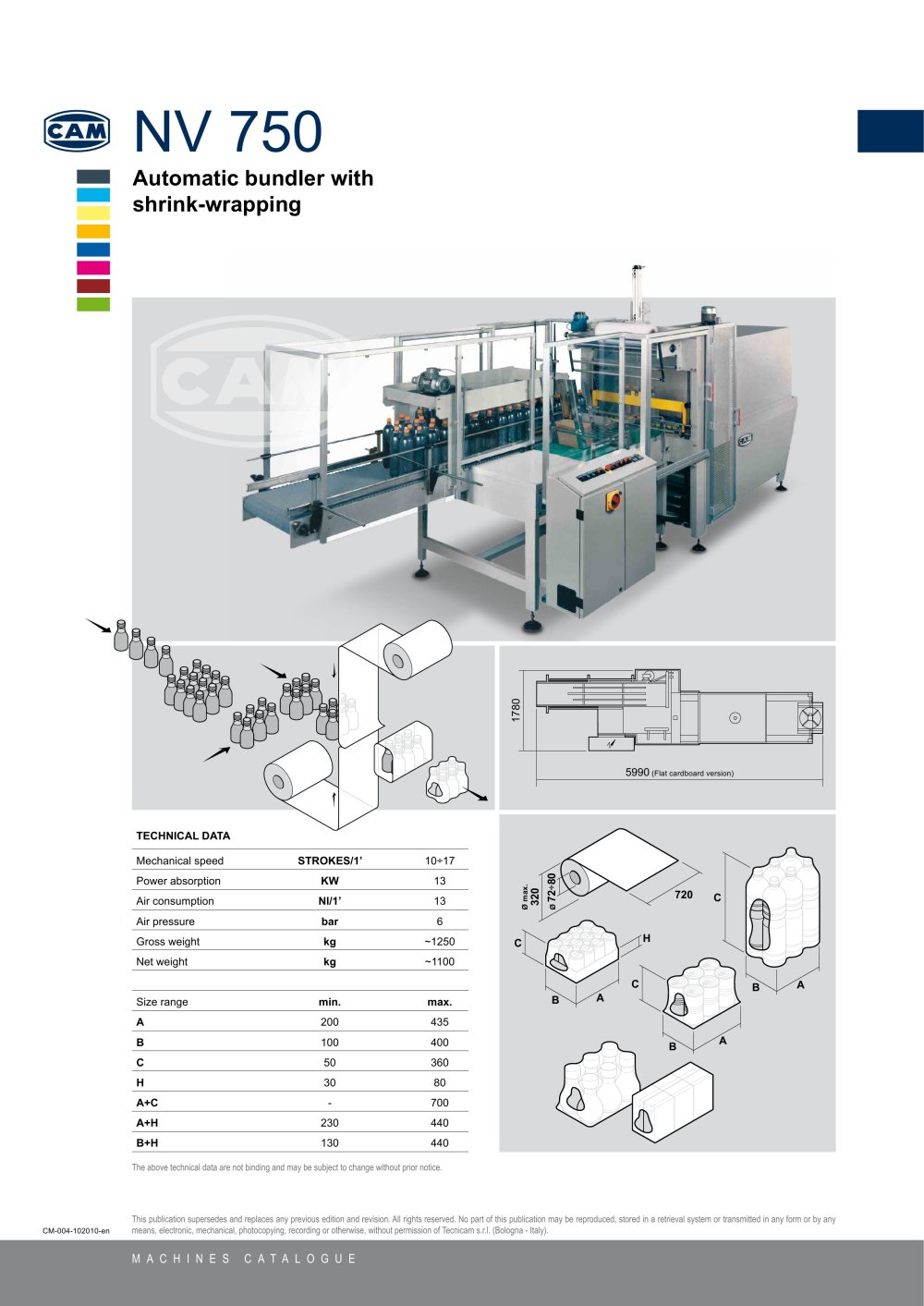

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:38.00pt "Arial", sans-serif; } O NV 750 Automatic bundier with shrink-wrapping TECHNICAL DATA Mechanical speed STROKES/1' 10*17 Power absorption KW 13 Air consumption Ni/1' 13 Air pressure bar 6 Gross weight kg ~1250 Net weight kg ~1100 Size range min. max. A 200 435 B 100 400 C 50 360 H 30 80 A+C - 700 A+H 230 440 B+H 130 440 The above technical data are not binding and may be subject to change without prior notice. This pubication supersedes and repaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any CM-004-102010-en means, electronic, mechanica, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). MACHINES CATALOGUE
