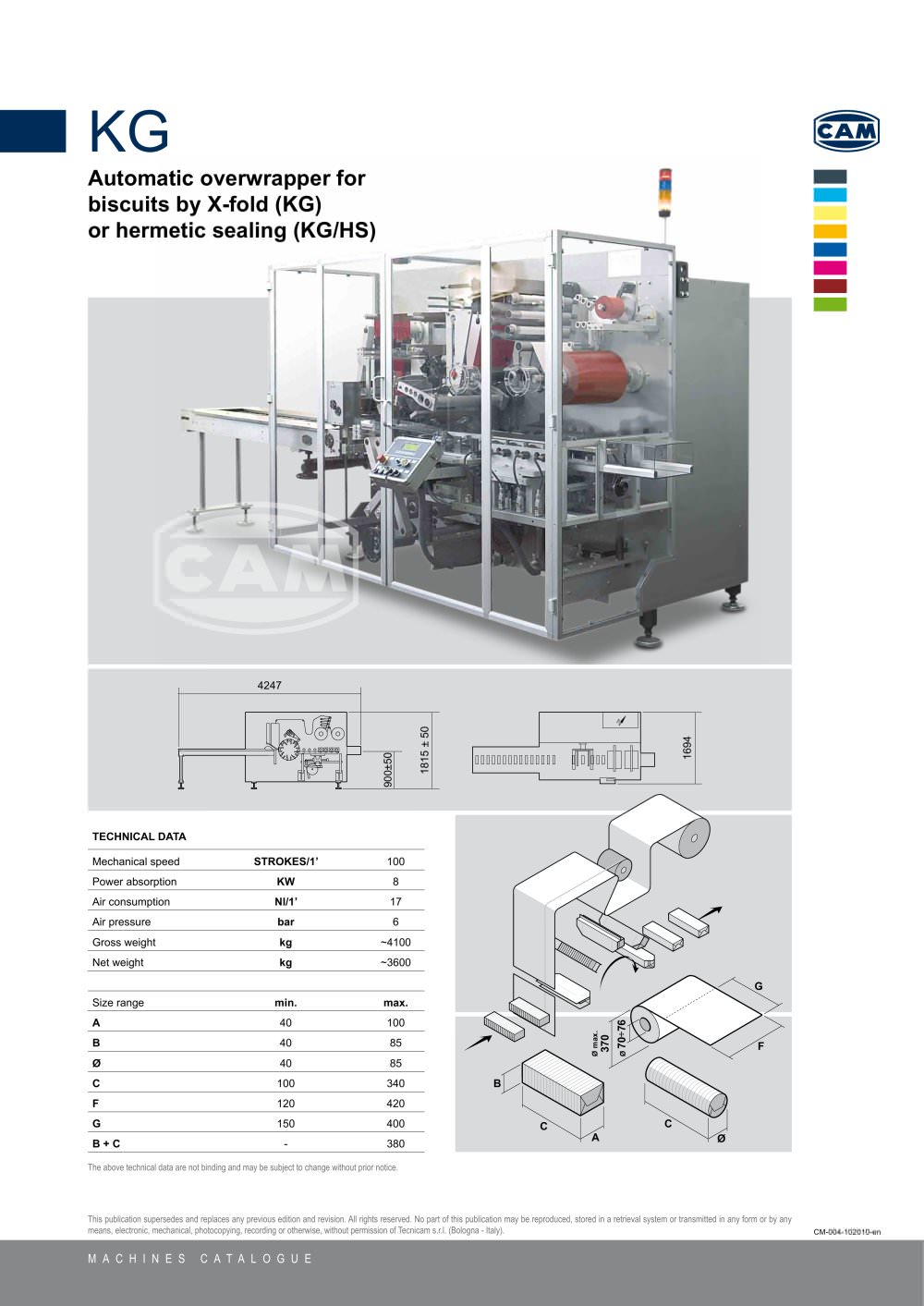

KG automatic overwrapper for biscuits by X-fold or hermetic sealing - CAM - #1

Text version of the page

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:29.00pt "Arial", sans-serif; } KG Automatic overwrapper for biscuits by X-fold (KG) or hermetic sealing (KG/HS) s Mechanical speed STROKES/1' 100 Power absorption KW 8 Air consumption Nl/1' 17 Air pressure bar 6 Gross weight kg ~4100 Net weight kg ~3600 Size range min. max. A 40 100 B 40 85 0 40 85 C 100 340 F 120 420 G 150 400 B + C - 380 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). CM-004-102010-en MACHINES CATALOGUE
