HG continuous motion horizontal cartoner for large size products
1 /1Page
HG continuous motion horizontal cartoner for large size products
1 /1Page
Catalog excerpts

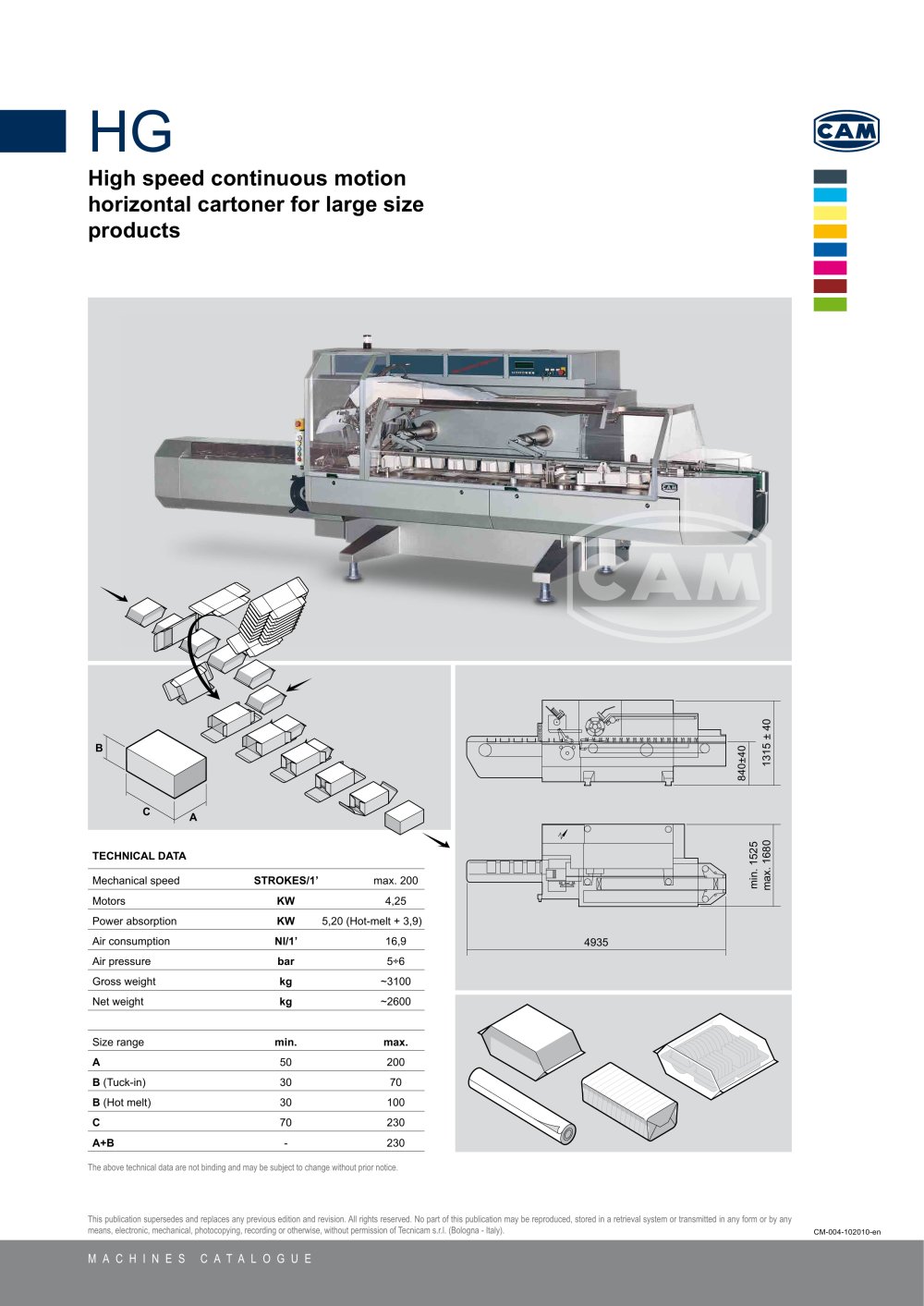

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:35.00pt "Arial", sans-serif; } HG CAM High speed continuous motion horizontal cartoner for large size products Mechanical speed STROKES/1' max. 200 Motors KW 4,25 Power absorption KW 5,20 (Hot-melt + 3,9) Air consumption Nl/1' 16,9 Air pressure bar 5-6 Gross weight kg ~3100 Net weight kg ~2600 Size range min. max. A 50 200 B (Tuck-in) 30 70 B (Hot melt) 30 100 C 70 230 A+B - 230 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). CM-004-102010-en MACHINES CATALOGUE
